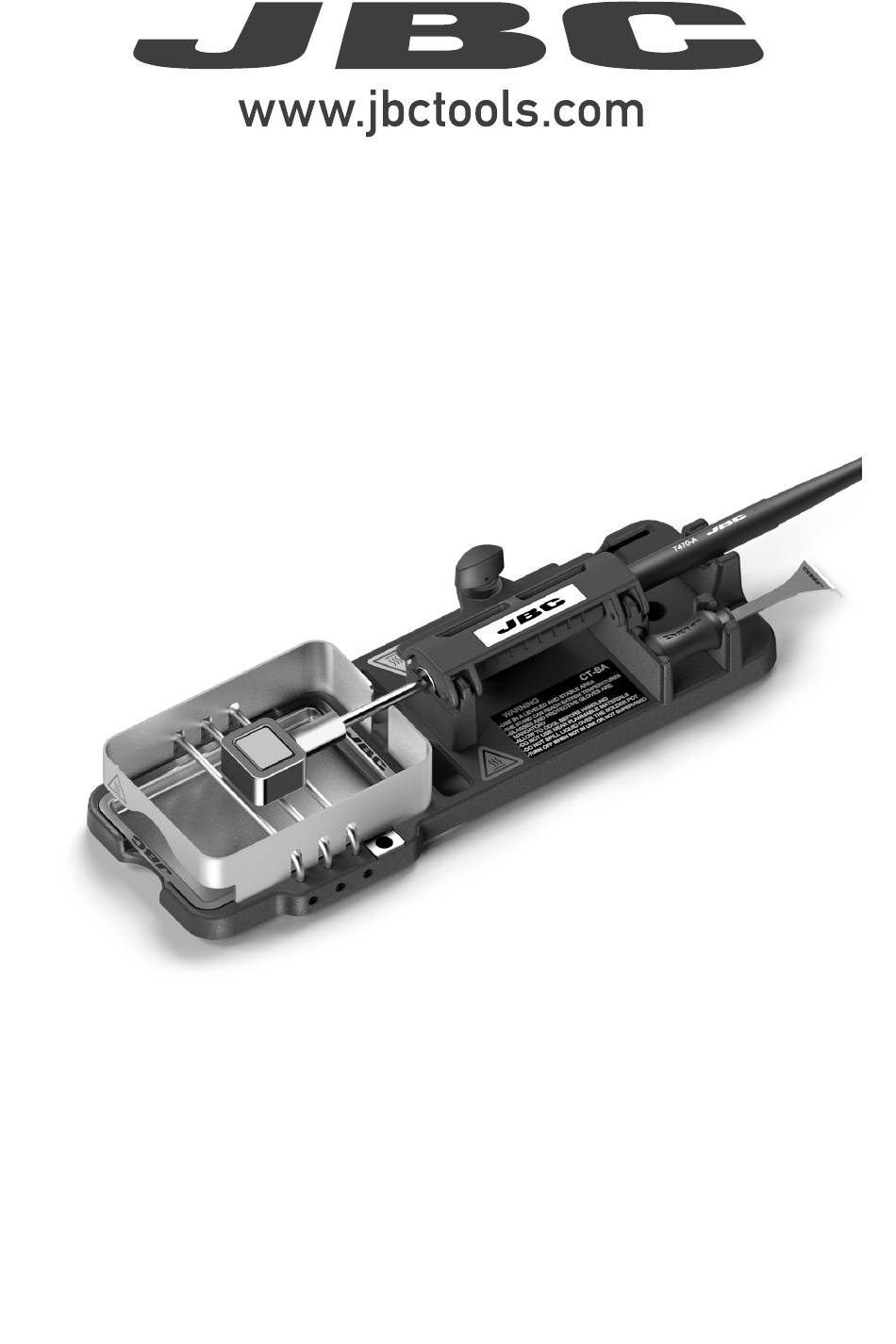

- Page 1 INSTRUCTION MANUAL Solder Pot Stand...
-
Page 2: Packing List
This manual corresponds to the following reference: CT-SA Packing List The following items are included: Solder Pot Stand ..............................1 unit Handle and Cartridge are not included Spatula 17mm / 0.67in ......1 unit Spatula 39mm / 1.54in ......1 unit Ref. -
Page 3: Compatible Cartridges
Protective Screen - It offers protection 40 mm against accidents. Compatible Cartridges* CTS can be employed with different handles and cartridges. T470 handles can be used with solder pot cartridges C470SP01 and C470SP42 and T245 handles with solder pot cartridge C245SP01. -
Page 4: Operation

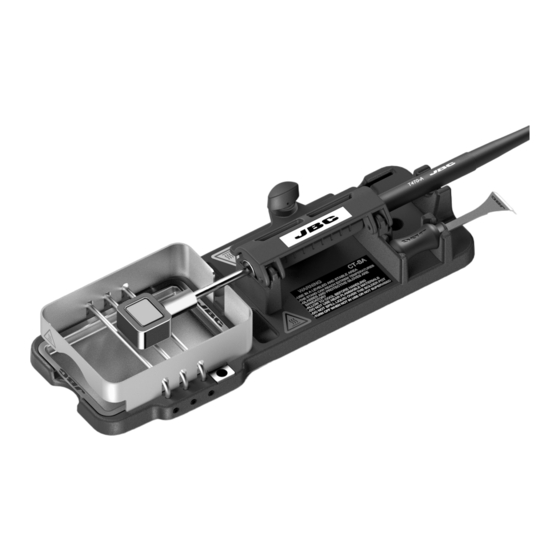

Operation CTS Solder Pot Cartridge Stand can hold T245 or T470 handles with its Solder Pot Cartridge to avoid it tipping over accidentally. Compatible Cartridges see previous page. As a safety precaution, before placing the handle, make sure the station is off and the tin is cold. - Page 5 Washer* Self-locking Nut* To protect the stand’s rubber feets from wear and tear when fixing CTS in place put the spacers (see packing list) between the stand and the workbench. Use screws (we recommend M4), washers and self-locking nuts to assemble and fix the CTS in place.
-
Page 6: Maintenance
For easier cleaning, the protective screen can be disassembled by means of the allen key. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the appliance for any other purpose than to hold the solder pot. It is not a tool stand. - Do not use the equipment in environments with risk of fire or explosion.
-
Page 8: Specifications
13.46 x 6.10 x 4.72 mm / 2.89 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
