jbc CS-E Series Instruction Manual

jbc CS-E Series Instruction Manual

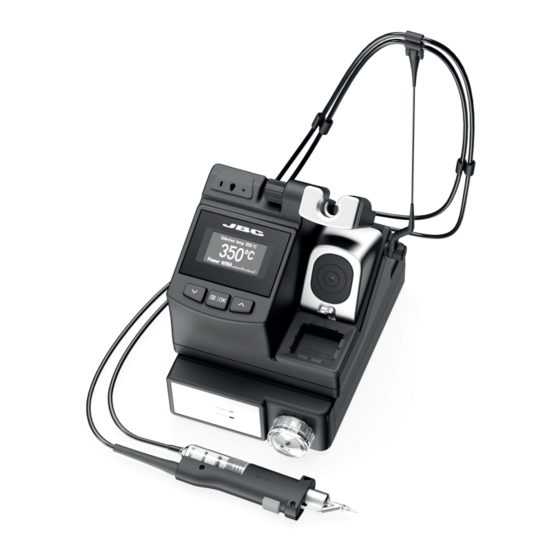

Compact desoldering station with electric pump

Advertisement

Quick Links

www.jbctools.com

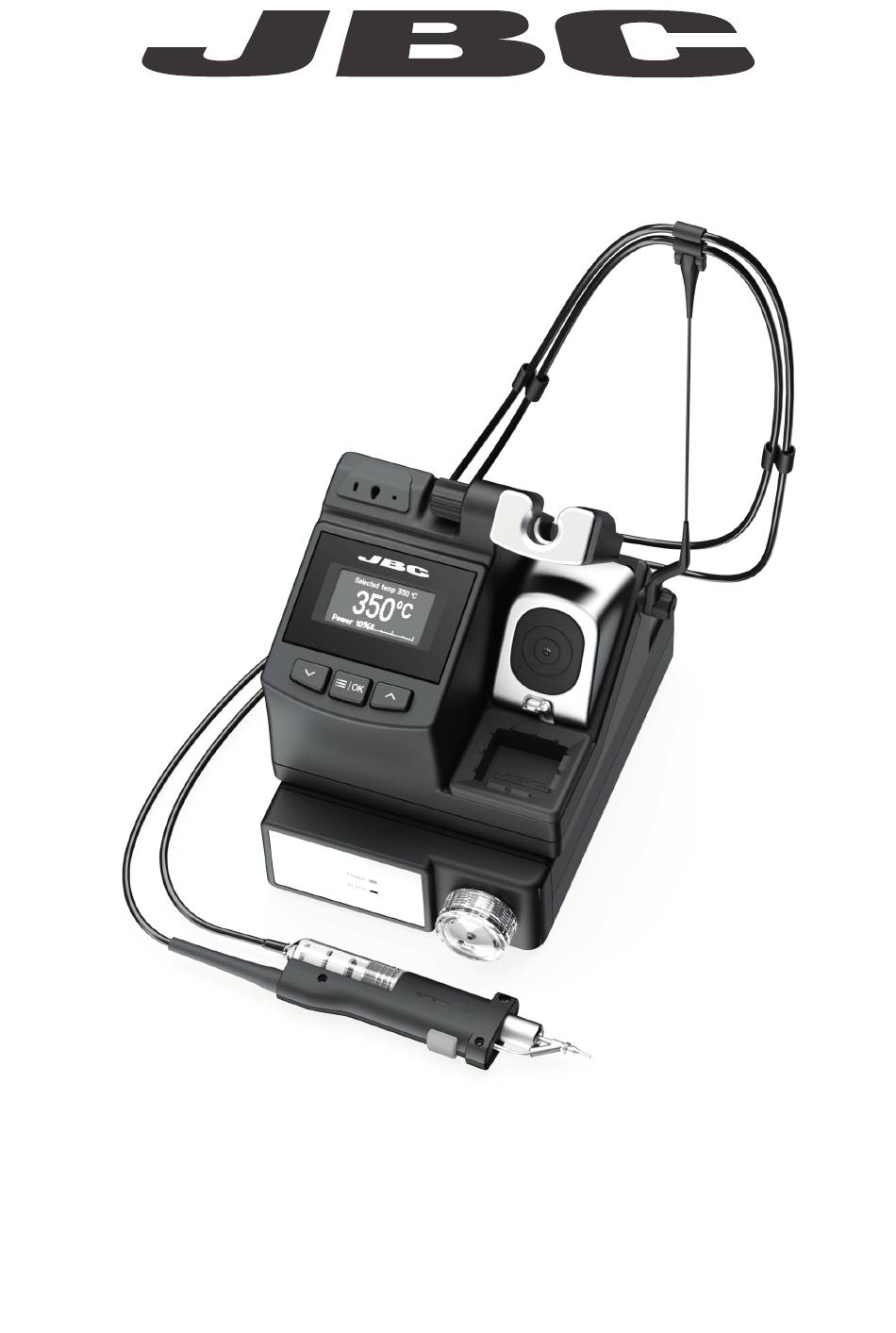

INSTRUCTION MANUAL
Compact Desoldering Station
with Electric Pump
Ref. CS-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for jbc CS-E Series

  • Page 1 www.jbctools.com INSTRUCTION MANUAL Compact Desoldering Station with Electric Pump Ref. CS-E...
  • Page 2: Packing List

    Packing List The following items are included: CSV Control Unit ........1 unit Micro Desoldering Iron ......1 unit Ref. CSV-1E (120V) Ref. DS360-A CSV-2E (230V) C360004 already inserted CSV-9E (100V) Power Cord .....1 unit Sponge ......1 unit Brass Wool ....1 unit Ref.
  • Page 3 w w w.jbctools.com DS360-A Accessories Ref. 0010259 Tips ......10 units Union Flanges ..2 units Filter ......2 units Ref. C360002 (x5) Ref. 0011356 Ref. 0008473 C360004 (x5) Cleaning brush ..1 unit Solder Collector ..2 units Cleaning Rods ....1 unit Ref.
  • Page 4 Features Cable collector Adjustable Stand: Intelligent Heat Management Process Screen Tip Cleaner Micro Desoldering Iron Ref. DS360-A Equipotential connection Main switch Fuse Power Cord Socket USB-B Module Cable Ref. 0010207 Suction Filter Ref. 0821830...
  • Page 5: Adjustable Stand

    If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL0160 A temperature resistant receptacle for removing excess solder by gently tapping or wiping.
  • Page 6: Removing The Splashguard

    Removing the Splashguard 1. Unlock the splashguard. 2. Remove it. Lock More cleaning options (not supplied): Inox Wool Metal Brush Ref. CL6205 Ref. CL6220 Provides a superior When used carefully, cleaning of the tip. it provides a more thorough cleaning. Wiper Sponge Ref.
  • Page 7: Changing The Tip

    w w w.jbctools.com Changing the Tip Tip’s fasten area. To remove the tip, use a pair of fl at-nosed Do not hold it on the spring clamp. pliers, twist the tip and pull. C360-001 C360-004 C360 Important: This operation should be done while the tip is hot and at a minimum temperature of 250°C, so that any tin left inside is still molten.
  • Page 8: Changing The Heating Element

    Changing the heating element (Ref. DSV-DS) 1. Remove the filter before changing the 2. Remove the fi xing screw and take out the heating element. heating element. 3. Insert the new heating element. 4. Tighten the fi xing screw and insert the fi lter. Changing the Pump Filters Important: Do not Suction filter...
  • Page 9: Usb Connector

    Update the station software via USB connection: Cable USB AB Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can export data to another PC. any JBC station Cable USB AB...
  • Page 10: Operation

    Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases up to 5. 1. Work 2. Sleep 3.
  • Page 11: Control Process

    w w w.jbctools.com Control Process Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp.
  • Page 12: Station Settings

    (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.
  • Page 13: Tool Settings

    w w w.jbctools.com Tool Settings Parameter description Recommendations Warnings Ideal for soldering more than Fix one temperature Fix a value within the tem- one component at a specific perature range of the station temperature. The station will (180-450ºC / 3560-840ºF). reject any attempt to change the temperature.
  • Page 14 Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
  • Page 15: Maintenance

    If necessary use a tool to lever it off. and return it to the station. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service.
  • Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 17 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
  • Page 18 Notes...
  • Page 19: Specifications

    w w w.jbctools.com Specifications CS-1E 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CSV-1E CS-2E 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CSV-2E CS-9E 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CSV-9E - Output Peak Power CD-BE: - Temperature Range: 180 - 450 °C (360 - 840 °F)
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Cs-1eCs-2eCs-9e
