Summary of Contents for Pentair T20
-

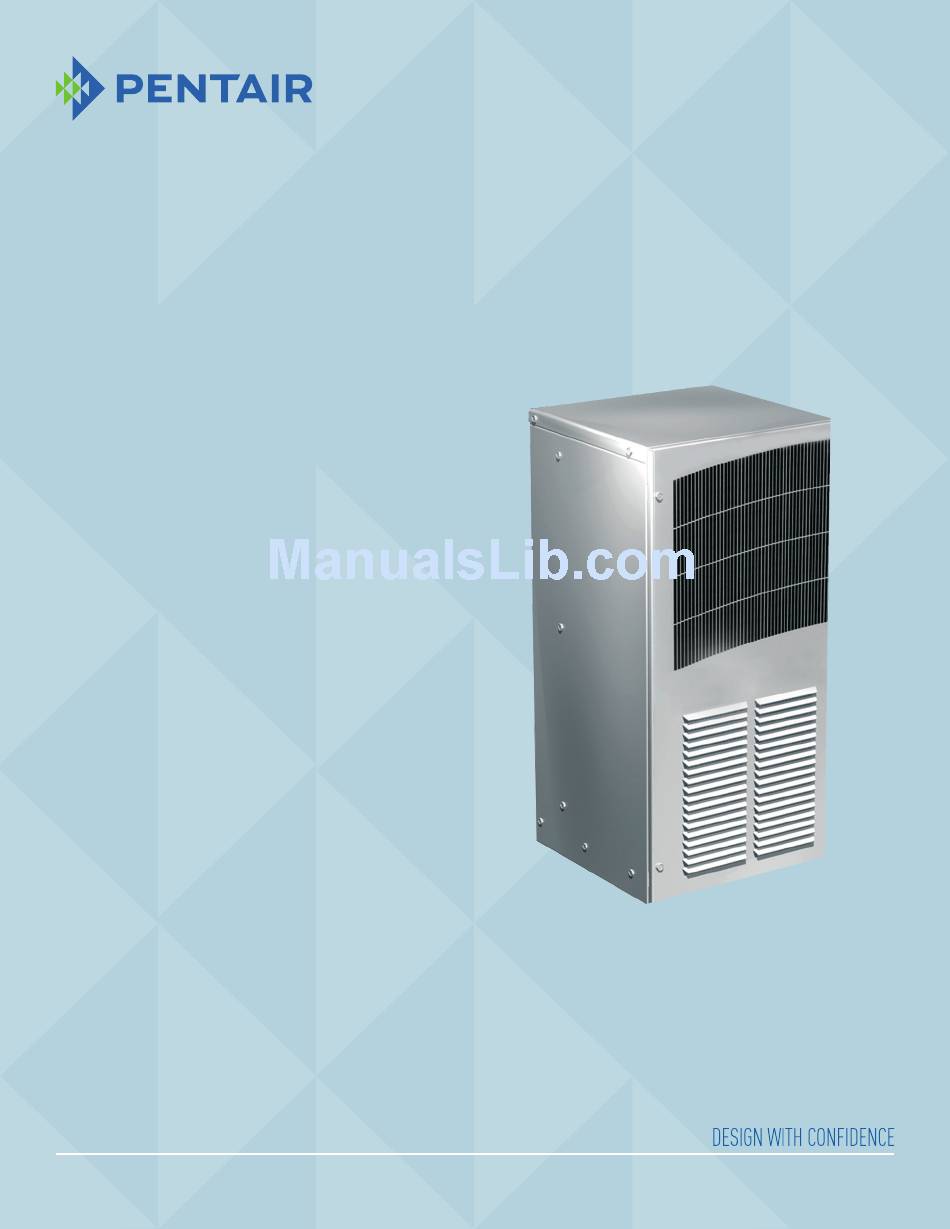

Page 1: Air Conditioner
T-SERIES Air Conditioner t20 Model INSTRUCTION MANUAL © 2016 Pentair Equipment Protection 89114993 Rev. B P/N 89114993... -
Page 2: Table Of Contents
LIMITATION OF LIABILITY..................................15 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact Pentair Equipment Protection if further information is required. -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Installation Instructions
MOUNTING IS BEHIND REMOVEABLE FRONT COVER. (6 ON BACK FACE - 9.38(3) CLEANABLE, REUSEABLE ALUMINUM INLET FILTER 6 BEHIND FRONT COVER) SLIDES OUT SLOT IN BOTTOM OF FRONT COVER. 89115040 1/2" DRAIN STUB 7.53 © 2016 Pentair Equipment Protection 89114993 - 4 -... -
Page 5: Mounting Cutout Dimensions
Filter, Air, Reusable 89057620 89057620 Filter/Dryer 52-6028-03 52-6028-03 Service Cord 52-6035-140 52-6035-141 Thermal Overload, Compressor 89109877 89109878 Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 Optional Heater 10-2004-25 10-2004-26 Optional Malfunction Switch 52-6104-42 52-6104-42 © 2016 Pentair Equipment Protection 89114993 - 5 -... -
Page 6: Wire Diagrams
WIRE DIAGRAMS WITHOUT HEAT 89114860 © 2016 Pentair Equipment Protection 89114993 - 6 -... -
Page 7: With Heat
WITH HEAT 89109602 © 2016 Pentair Equipment Protection 89114993 - 7 -... -
Page 8: Schematic
SCHEMATIC © 2016 Pentair Equipment Protection 89114993 - 8 -... -
Page 9: Temperature Control
(read change in amps of unit to determine when heating starts) and note the reading on the dial. Compare the two readings, they must be within ±3 F of each other. © 2016 Pentair Equipment Protection 89114993... -
Page 10: Principles Of Operation
Continued operation under the above conditions can and will damage and shorten compressor life. The air conditioner is available with an easily removable inlet filter to facilitate necessary cleaning. There should be no reason to neglect this necessary maintenance. © 2016 Pentair Equipment Protection 89114993 - 10 -... -
Page 11: How To Remove, Clean Or Install A New Inlet Air Filter
CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact Pentair Equipment Protection for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 12: Trouble Shooting
(replace control box cover for safety). This will activate the switch in the thermostat. Turn the power on and if both fans and the compressor come on, the thermostat needs to be replaced. © 2016 Pentair Equipment Protection 89114993 - 12 -... -
Page 13: Symptoms And Possible Causes
Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) , contact Pentair Equipment Protection at 800-896-2665. © 2016 Pentair Equipment Protection 89114993 - 13 -... -
Page 14: Warranty
Pentair Equipment Protection approval. Pentair Equipment Protection must be notified of a claim in writing not later than fourteen (14) days from the date when Buyer has become aware of such occurrence, or where the defect is such that it may cause damage, immediately, such notice containing a description of how the defect manifests itself. -
Page 15: Limitation Of Liability
B. All returns to Pentair Equipment Protection must be securely packed, using original cartons if possible. All returns must have the RMA number visible on the outside of the carton. Pentair Equipment Protection is not responsible for material damaged in transit. Any refrigerant-bearing Goods must be shipped upright for return. -
Page 16: Pentair Equipment Protection
Pentair Equipment Protection 2100 Ho man Way Minneapolis, MN 55303 USA +1.763.422.2211 +1.763.576.3200 PentairProtect.com © 2016 Pentair Equipment Protection 89114993 Rev. B P/N 89114993...
