5. Connect the Tablet to the Host
The RS-232C cable is equipped with a 25-pin female D connector with a jack screw.
The host must have a 25-pin male D connector (AMP P/N 205208-1). To lock the
connectors together, the host connector must have a screw lock (AMP P/N 205817-
1).
If the system requires them, adapter cables are available to change the connector
gender from female to male; or to reverse communication lines. Install an adapter
cable between Bit Pad Two data/power cable and the host.
6. Connect the Tablet to the Power Source
Plug the four-pin connector of the pigtail cable into the power supply. In turn, plug
the power supply into the wall outlet. For international power supplies, a plug
adapter cable must be connected between the power supply and the wall outlet.
Changing the Stylus Refill

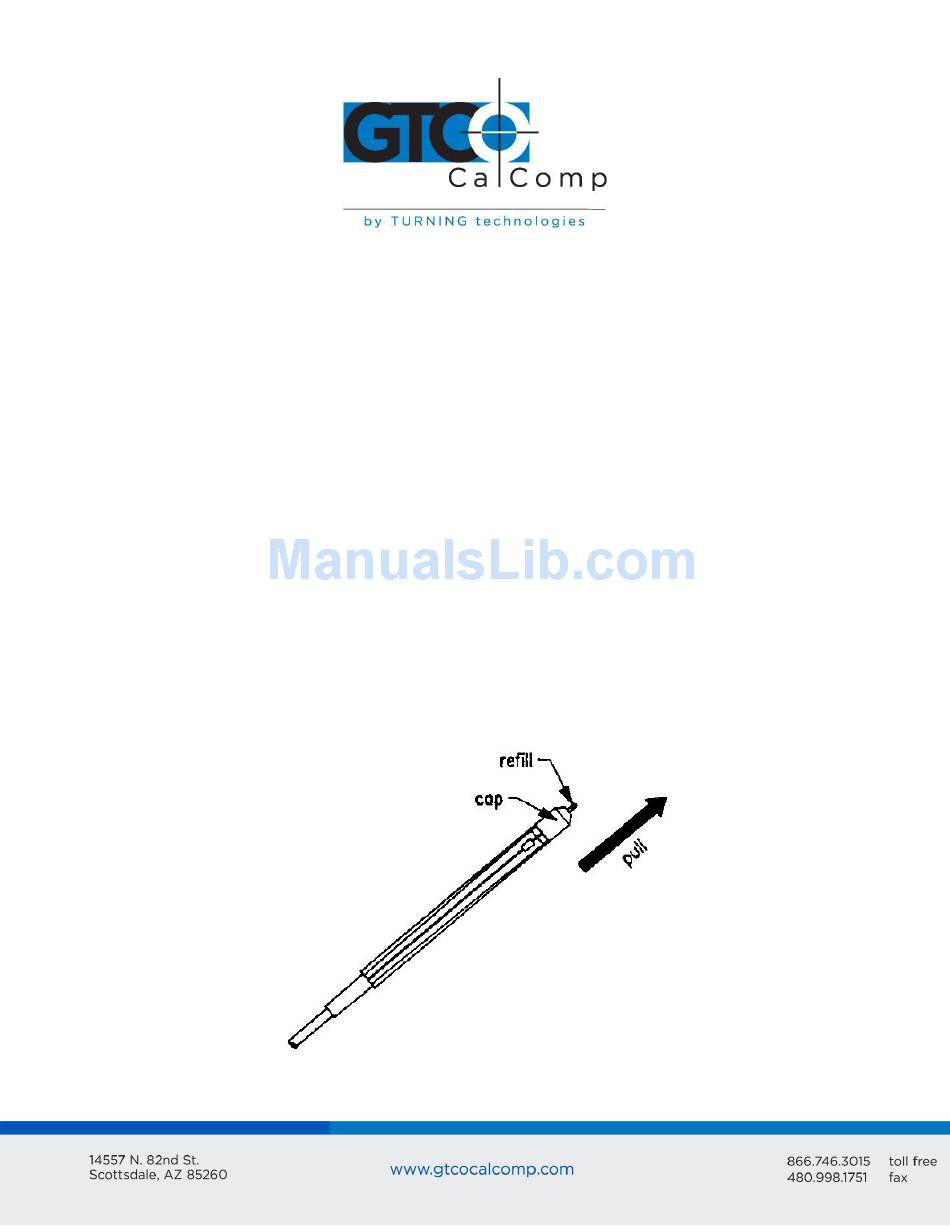

As depicted in the illustration below, to change the stylus refill, pull the cap straight out;
likewise, the refill. Replace the refill and cap.
NOTE: Do not remove the metal guide-ring in the cap. It keeps the refill in place.
Bit Pad Two 38
