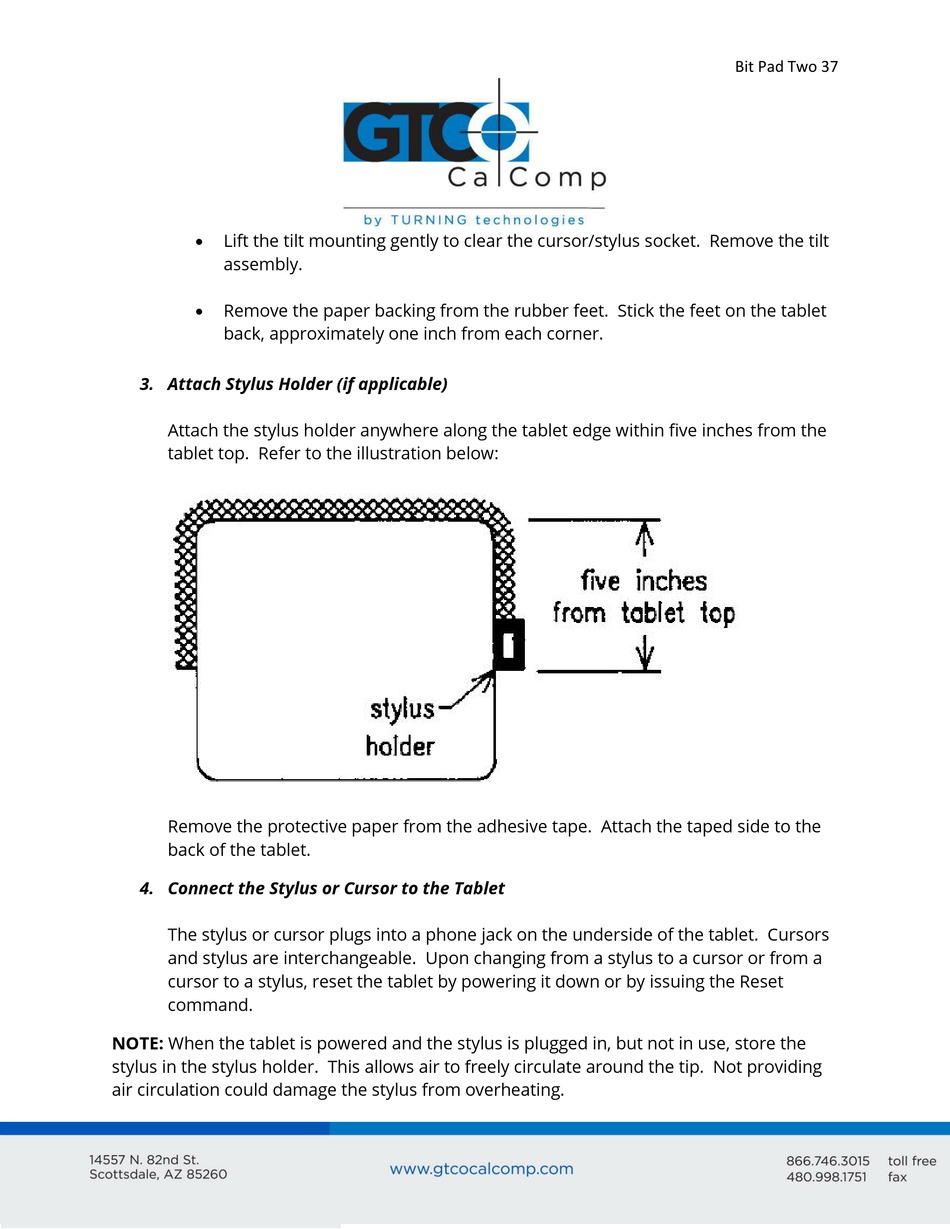

GTCO CalComp BIT PAD TWO DATA User Manual page 37

Lift the tilt mounting gently to clear the cursor/stylus socket. Remove the tilt

assembly.
Remove the paper backing from the rubber feet. Stick the feet on the tablet

back, approximately one inch from each corner.
3. Attach Stylus Holder (if applicable)
Attach the stylus holder anywhere along the tablet edge within five inches from the
tablet top. Refer to the illustration below:
Remove the protective paper from the adhesive tape. Attach the taped side to the
back of the tablet.
4. Connect the Stylus or Cursor to the Tablet
The stylus or cursor plugs into a phone jack on the underside of the tablet. Cursors
and stylus are interchangeable. Upon changing from a stylus to a cursor or from a
cursor to a stylus, reset the tablet by powering it down or by issuing the Reset
command.
NOTE: When the tablet is powered and the stylus is plugged in, but not in use, store the
stylus in the stylus holder. This allows air to freely circulate around the tip. Not providing
air circulation could damage the stylus from overheating.
