Bit Pad Two 17

Chapter 4: Operating Characteristics and Commands

Bit Pad Two has a variety of operating characteristics and functions. The operating
characteristics control the report flow, report content and tablet resolution.
Set the Bit Pad Two's operating characteristics or initiate the functions with commands
from the host or with the switches inside the tablet. The table below identifies the selector
methods available:

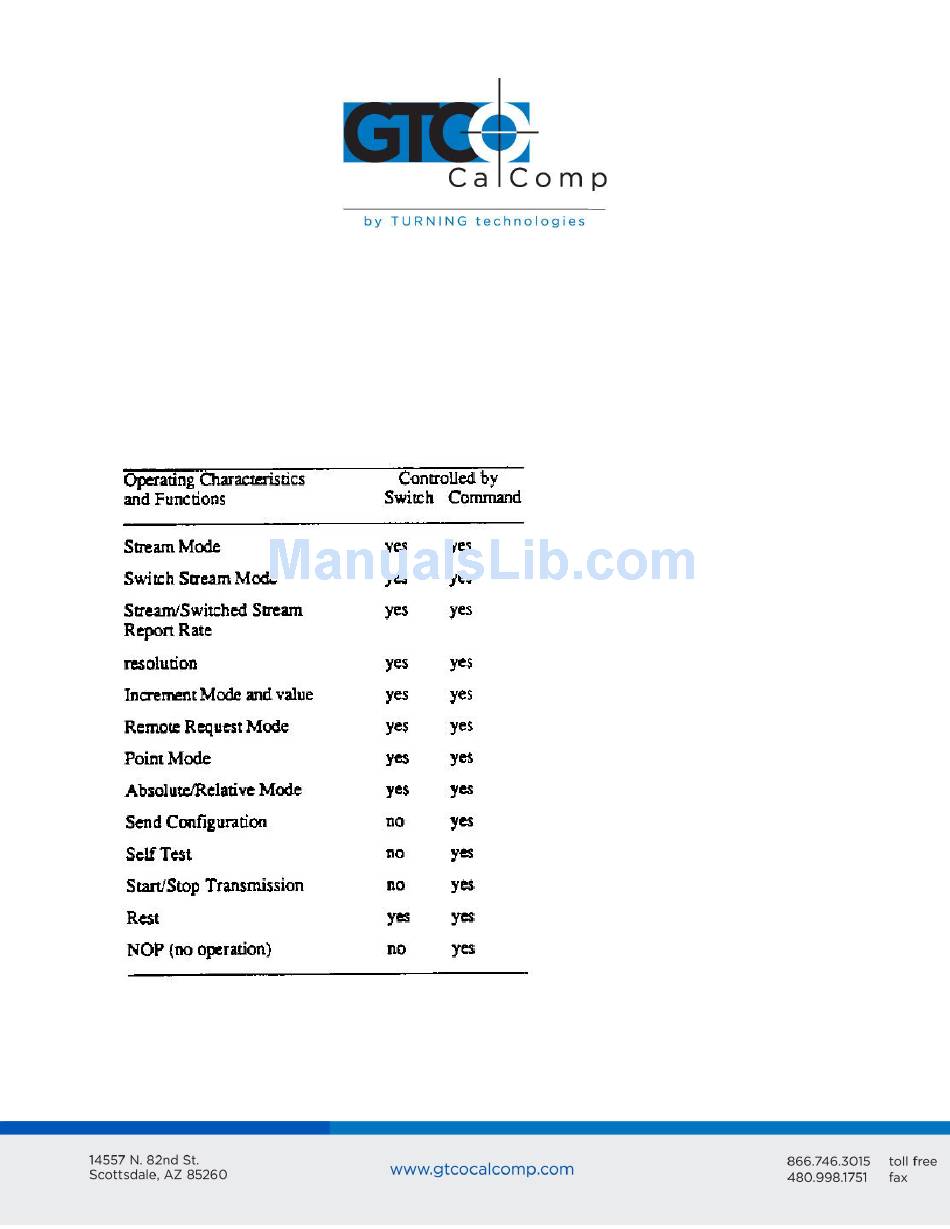

Methods of Operating Characteristic and Function Control
Commands override switch settings.
NOTE: The operating characteristics revert to the switch settings, however, each time you
power up the data tablet or issue the Reset command.
