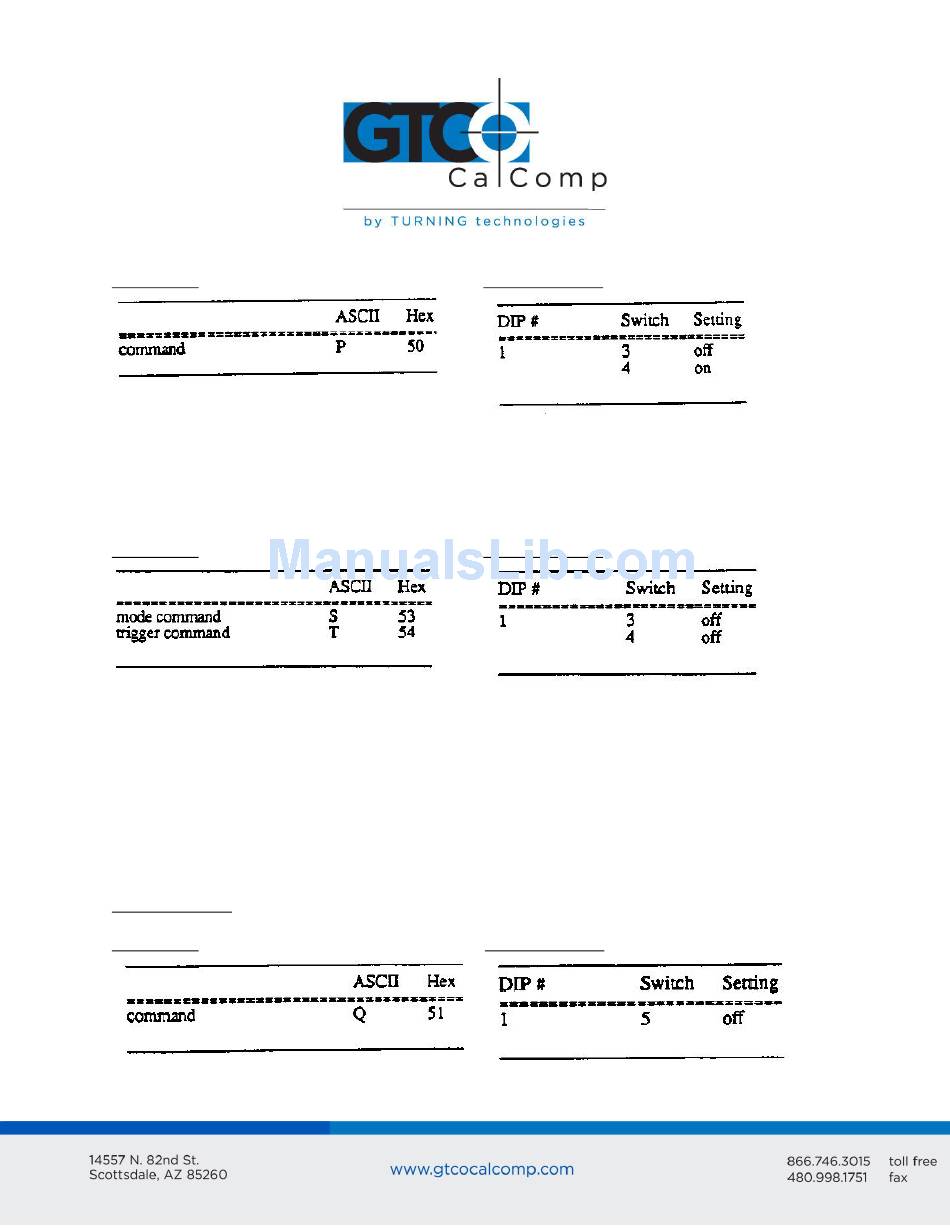

Point Mode

Command:
In Point Mode, the Bit Pad Two issues one report each time a cursor or stylus button is
pressed. Reports can be issued up to the maximum Report Rate available for the set baud
rate.

Remote Request Mode

Command:
In Remote Request Mode, the Bit Pad Two issues one report each time the host sends a
trigger command. Issue the mode command once. Thereafter, send only a trigger
command for each report.
After Remote Request Mode is initiated, the Bit Pad Two takes between two and ten
milliseconds to issue the report resulting from the first trigger command. Subsequent
reports can be issued up to the maximum Report Rate available for the set baud rate.

Modifiers

Absolute Mode

Command:
Switch Setting:
Switch Setting:
Switch Setting:
Bit Pad Two 21
