Here's a description of how Increment Mode works: last report issued becomes the center
of an imaginary square whose sides are twice the increment value. The cursor can move
anywhere inside the imaginary square without a report being issued. As soon as the
increment is satisfied along either axis, the Bit Pad Two transmits the actual X and Y
coordinates of the point. The new point becomes the center of a new, imaginary square.

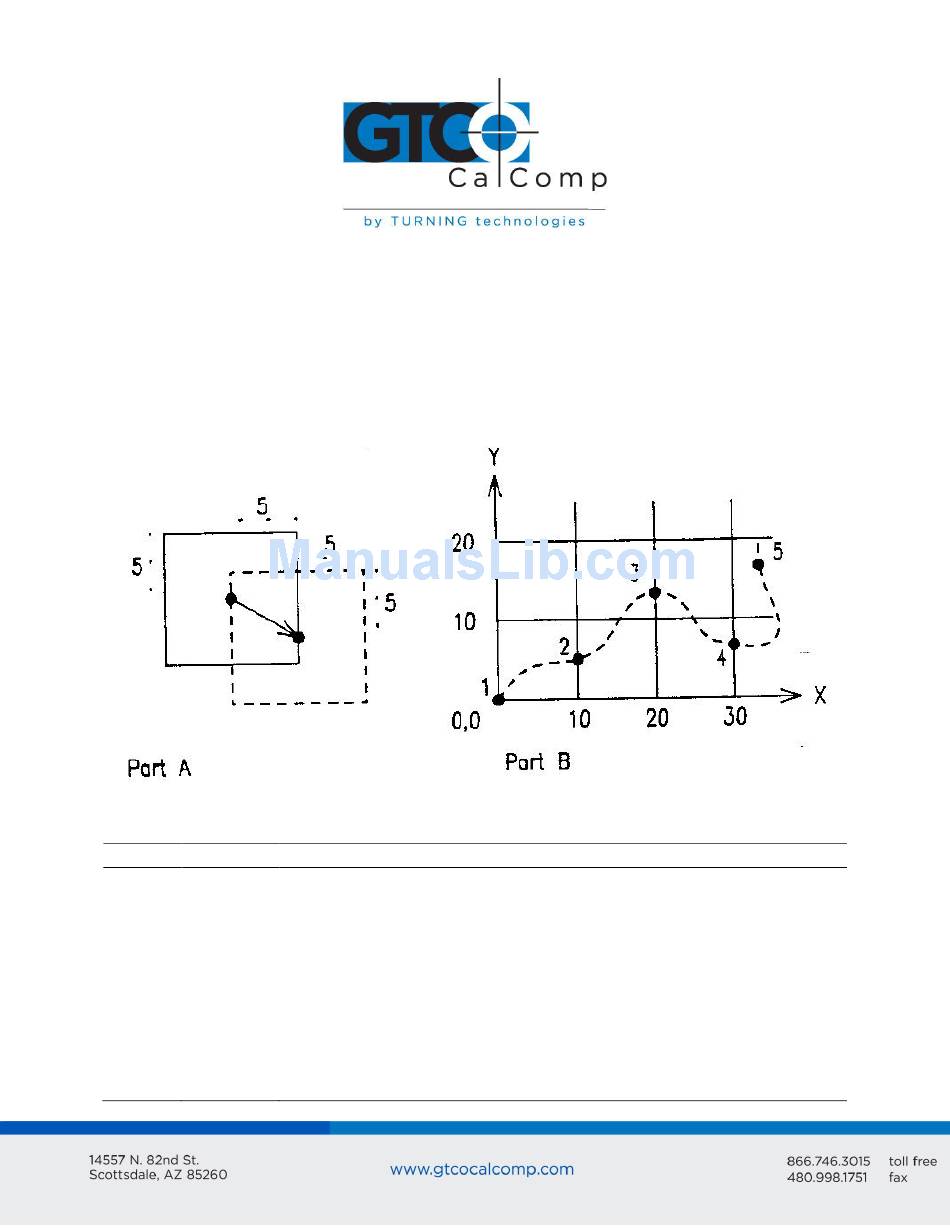

Example: Part A shows the imaginary square created around each report point; the
increment is five. Part B shows the reports issued as the cursor or stylus travels across the
tablet; the increment is 10.
The five points issued in Part B are numbered in order.
Point Report Description
1 (0,0)
2 (10,5) Only X is satisfied. The actual value of Y is transmitted.
No point is transmitted between points 2 and 3 because the cursor
or stylus did not move ten resolution counts in either the X or Y
directions.
The increment is satisfied from the last point along the X axis only;
3 (20,13) the Bit Pad Two issues the new report.
