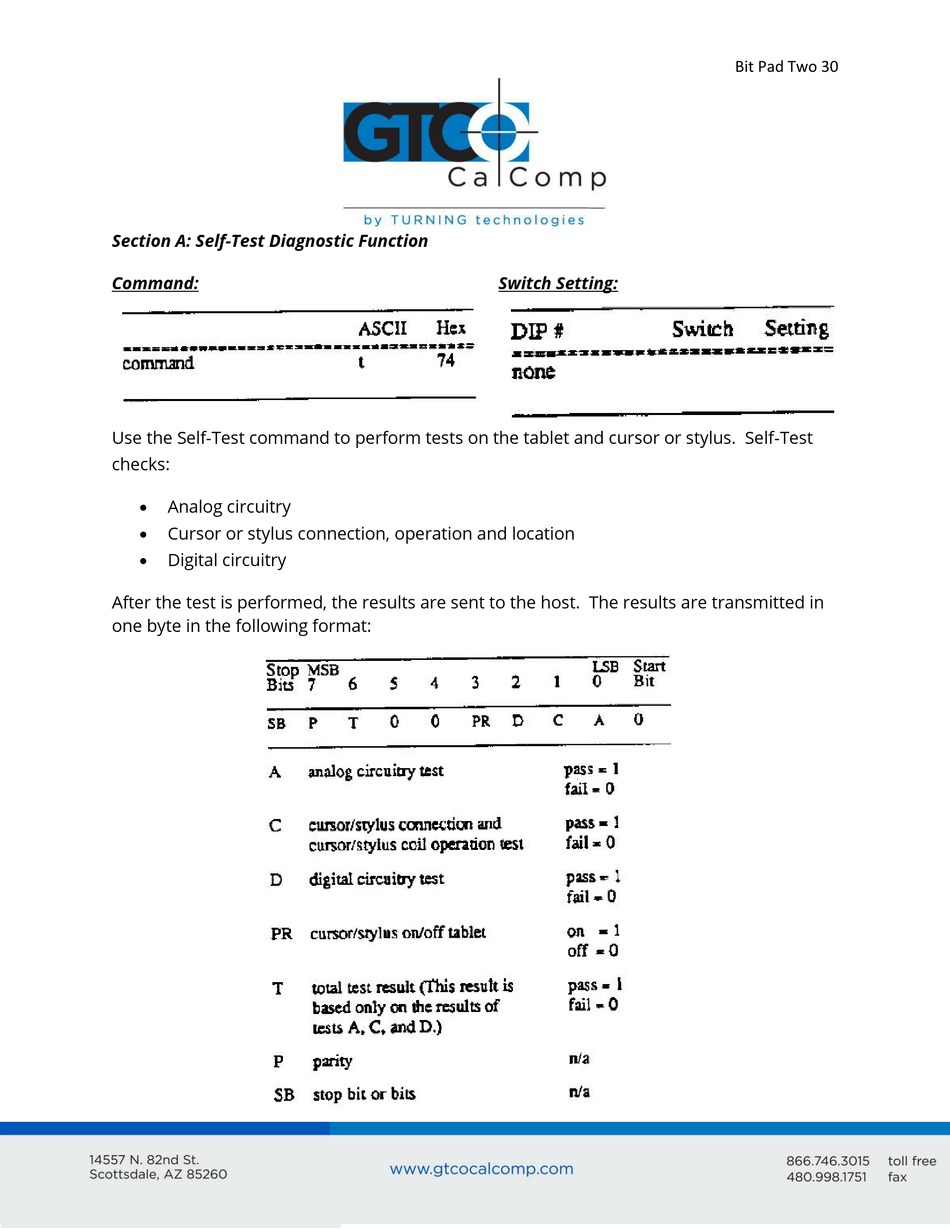

Section A: Self-Test Diagnostic Function

Command:
Use the Self-Test command to perform tests on the tablet and cursor or stylus. Self-Test
checks:
Analog circuitry

Cursor or stylus connection, operation and location

Digital circuitry

After the test is performed, the results are sent to the host. The results are transmitted in
one byte in the following format:
Switch Setting:
