3. CONNECTIONS

When used in standalone operation

Connecting Your PC Or Macintosh Computer
Connecting your PC or Macintosh computer to XT5000 Projector will
enable you to project your computer's screen image for an impressive
presentation.
To connect to a PC or Macintosh :
1. Turn off the power to your projector and computer.
2. Use a signal cable (not provided) to connect your PC or Macintosh
computer to the projector.
3. Turn on the projector and the computer.
4. If the projector goes blank after a period of inactivity, it may be
caused by a screen saver installed on the computer.
Connecting Your Document Camera
You can connect the projector to a document camera. To do so, sim-
ply:
1. Turn off the power to your projector and document camera.
2. Use a standard video cable to connect your document camera to
the Video input on your projector. Or connect to the INPUT3 (RGB)
on your projector.
3. Turn on the projector and the document camera.
NOTE: Refer to your document camera's owner's manual for more
information about your camera's video output requirements .

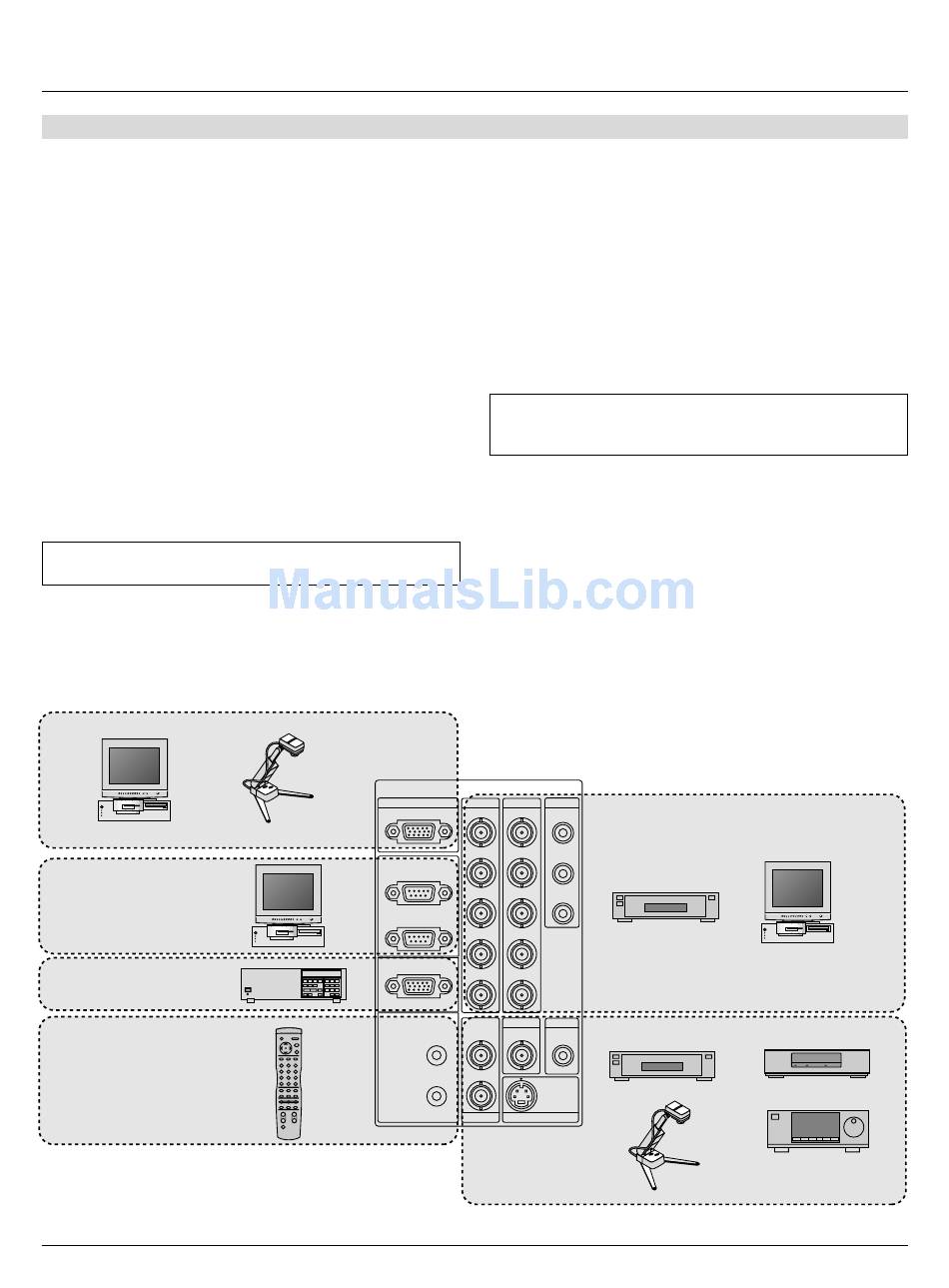

Document camera
PC
PC control
ISS-6020 Switcher
Wired remote control
Connecting Your VCR Or Laser Disc Player
Use common RCA cables (not provided) to connect your VCR or la-
ser disc player to your MultiSync XT5000 Projector. To make these
connections, simply:
1. Turn off the power to your projector and VCR or laser disc player.
2. Connect one end of your RCA cable to the video output connector
on the back of your VCR or laser disc player, connect the other
end to the Video input on your projector. Use standard RCA audio
patch cords to connect the audio from your VCR or laser disc
player to your projector (if your VCR or laser disc player has this
capability). Be careful to keep your right and left channel connec-
tions correct for stereo sound.
3. Turn on the projector and the VCR or laser disc player.
NOTE: Refer to your VCR or laser disc player owner's manual for
more information about your equipment's video output require-
ments.
