1. Part Names and Functions

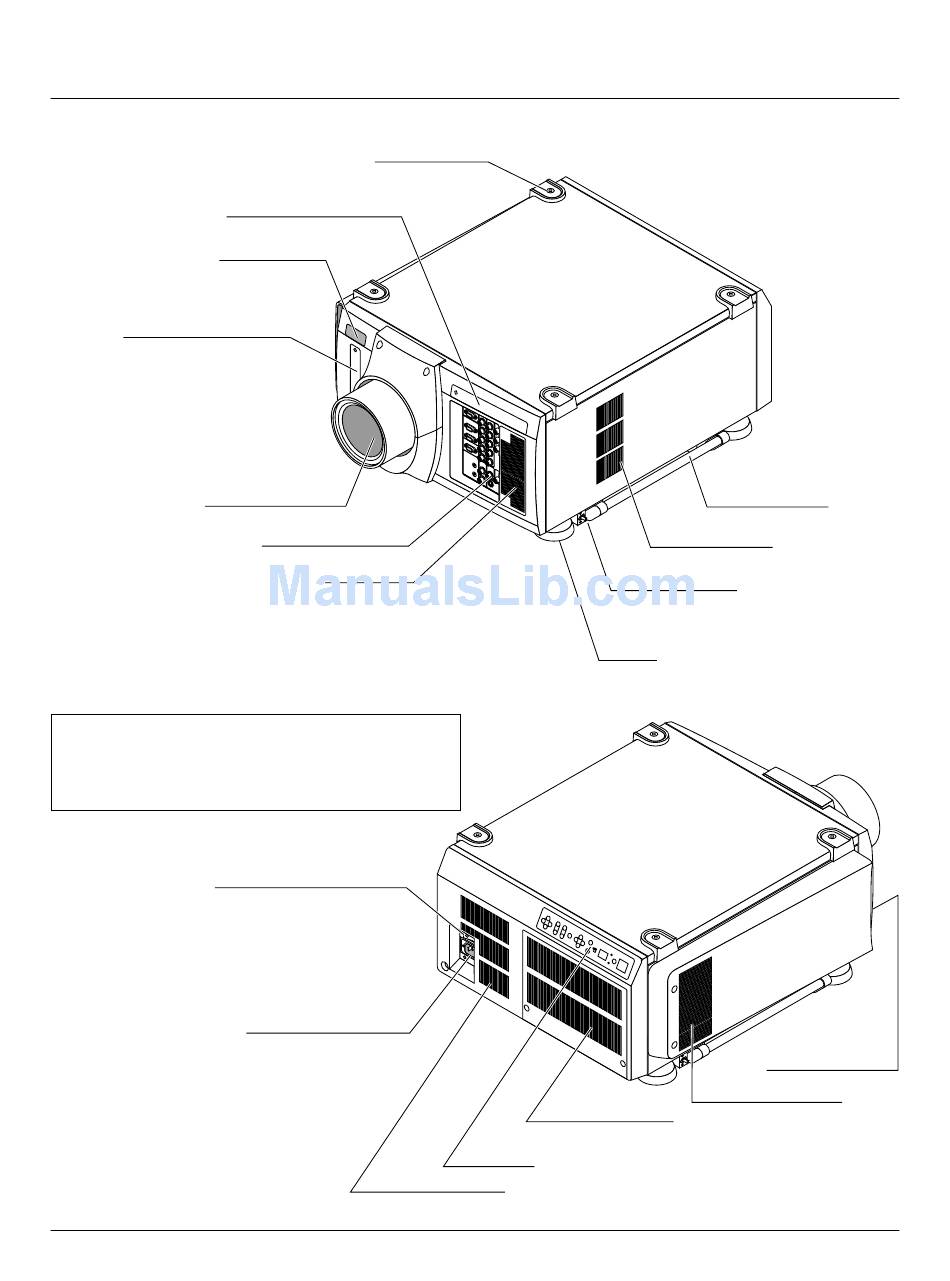

Digital Input Terminal Panel
Remote Sensor
PC Card Slot
Insert a flash memory card
here to upgrade the projector
system software or copy data
Lens (Optional)
* To turn on the main power to the projector, press the switch to the
ON position (I) and the POWER indicator on the rear panel will
turn amber in color.
Press to the OFF position (0) to turn the main power off.
NOTE: When turning off the main power, first return the projector
to the standby condition by pressing the POWER OFF button on
the remote control or the POWER button on the rear panel and
then turn off the main POWER switch. These procedures are nec-
essary to protect your projector and the connected equipment.
Power Switch (Main power)*
Stacking Pad (4 pcs)
Input Terminal Panel
Ventilation (in)
AC INPUT
Connect the supplied power
cord here (AC 100-120 /
200-240V).
Ventilation (in)
Release Lever (both sides)
Foot
Ventilation (in)
Controls
E – 8
Carrying Handle
Ventilation (out)
Ventilating duct (out)
Ventilation (out)
