Screen Size and Projection Distance

1. Place your projector on a flat level surface at the optimal distance
from the screen. (Avoid having bright room lighting or sun light
directly on the screen or projection surface.)
2. Connect the power cable, remove the lens cap and turn the projec-
tor on. (If no input signal is available, the projector will display a
black screen.)
3. Ensure that the projector is square to the screen.
4. Move the projector left or right to center the image horizontally
on the screen.
5. To move the projected image up or down, adjust the Lens Shift
Control.
6. Adjust the focus and the zoom.
NOTE:
1: When using the zoom lens, it is recommended that the projector
is positioned at an angle of from -15 to +15 degrees from the hori-
zontal.
2: While projecting an image with lower resolution than the
projector's native resolution (1024 768), if you want to enlarge
the image to fill the screen in the Native mode, proceed as follows:
1. Tturn on the "Native with Zoom" on the Resolution window.
See page E-34.
2. Press ENTER to close the window.
3. While pressing and holding CTL, press MAGNIFY or FOCUS
on the remote control to zoom the lens in or adjust the lens
focus.

Shutter mechanism

The XT5000 projector is equipped with "Shutter" feature, which al-
lows the user to shut off the light completely on the screen. To use the
shutter function, hold down the CTL button, and press the MUTE
PICTURE button on the remote control.
Projection Distance and Screen Size
Model TL-08SF
Lens
Magnification 0.84
80" 1.4
(4.48)
100" 1.7
(5.60)
200" 3.4
(11.20)
300" 5.1
(16.80)
400" 6.8
(22.40)
500" 8.5
(28.00)
* The values for projection distance are estimated.
Unit: m (feet)
TL-1Z TL-2Z TL-4Z
1.5-2.5 2.5-4.0 4.0-7.0
2.5-4.0 6.6-11.3
4.1-6.5
(8.00-13.33) (13.34-21.33) (21.34-37.33)
3.1-5.0 5.1-8.1 8.2-14.2
(10.00-16.66) (26.67-46.66)
(16.67-26.66)
6.1-10.1 10.2-16.2 16.3-28.4
(20.00-33.33) (33.34-53.33) (53.34-93.33)
9.2-15.2 15.3-24.3 24.4-42.6
(30.00-50.00) (50.00-80.00) (80.00-140.00)
12.2-20.3 32.6-56.8
20.4-35.5
(40.00-66.66) (66.67-106.66) (106.67-186.66)
15.2-25.4 25.4-40.6 40.7-71.1
(50.00-83.33) (133.34-233.33)
(83.34-133.33)

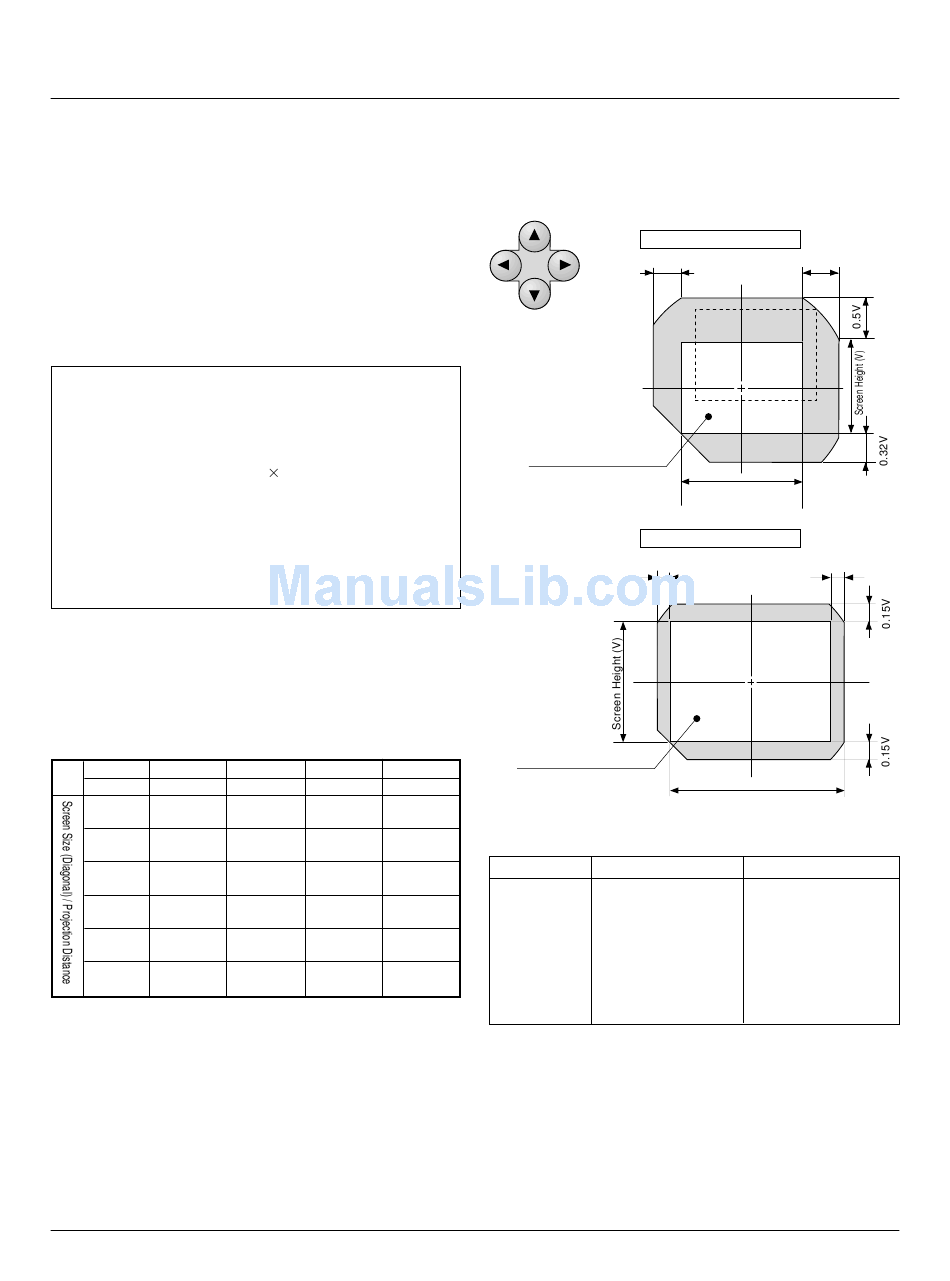

Lens Shift Adjustable Range

Lens can be shifted within the shaded area as shown below using the
normal projection position as a starting point.
(H: width of projected image, V: height of projected image)
LENS SHIFT
Normal Projection Position
Normal Projection Position
Screen Size
80"
100"
150" 3.0 (118.11)
200" 4.0 (157.48)
300" 6.1 (240.16)
400"
500" 10.2 (401.58)
E – 18
For TL-1Z, TL-2Z, TL-4Z
0.23H
0.3H
Screen Width (H)
For TL-08SF
0.08H
Screen Width (H)
H
1.6 (39.37) 1.2 (47.24)
2.0 (78.74) 1.5 (59.06)
2.3 (90.55)
3.0 (118.11)
4.6 (181.102)
8.1 (318.9) 6.1 (240.16)
7.6 (299.21)
0.08H
Unit: m (inch)
V
