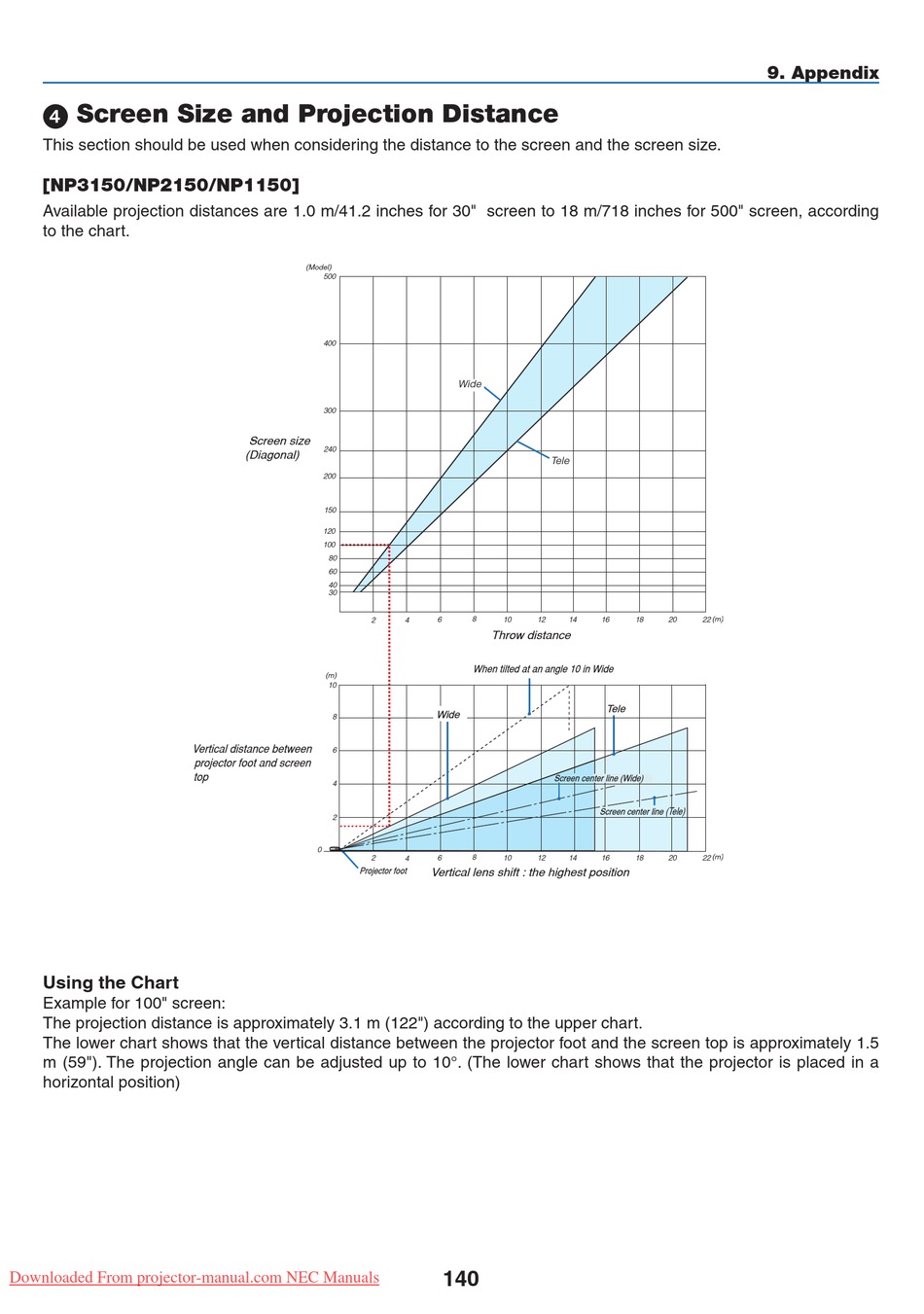

 Screen Size and Projection Distance

This section should be used when considering the distance to the screen and the screen size.

[NP3150/NP2150/NP1150]

Available projection distances are 1.0 m/41.2 inches for 30" screen to 18 m/718 inches for 500" screen, according
to the chart.
Using the Chart
Example for 100" screen:
The projection distance is approximately 3.1 m (122") according to the upper chart.
The lower chart shows that the vertical distance between the projector foot and the screen top is approximately 1.5
m (59"). The projection angle can be adjusted up to 10°. (The lower chart shows that the projector is placed in a
horizontal position)
