6. DSP CONTROL & REMOTE CONTROL

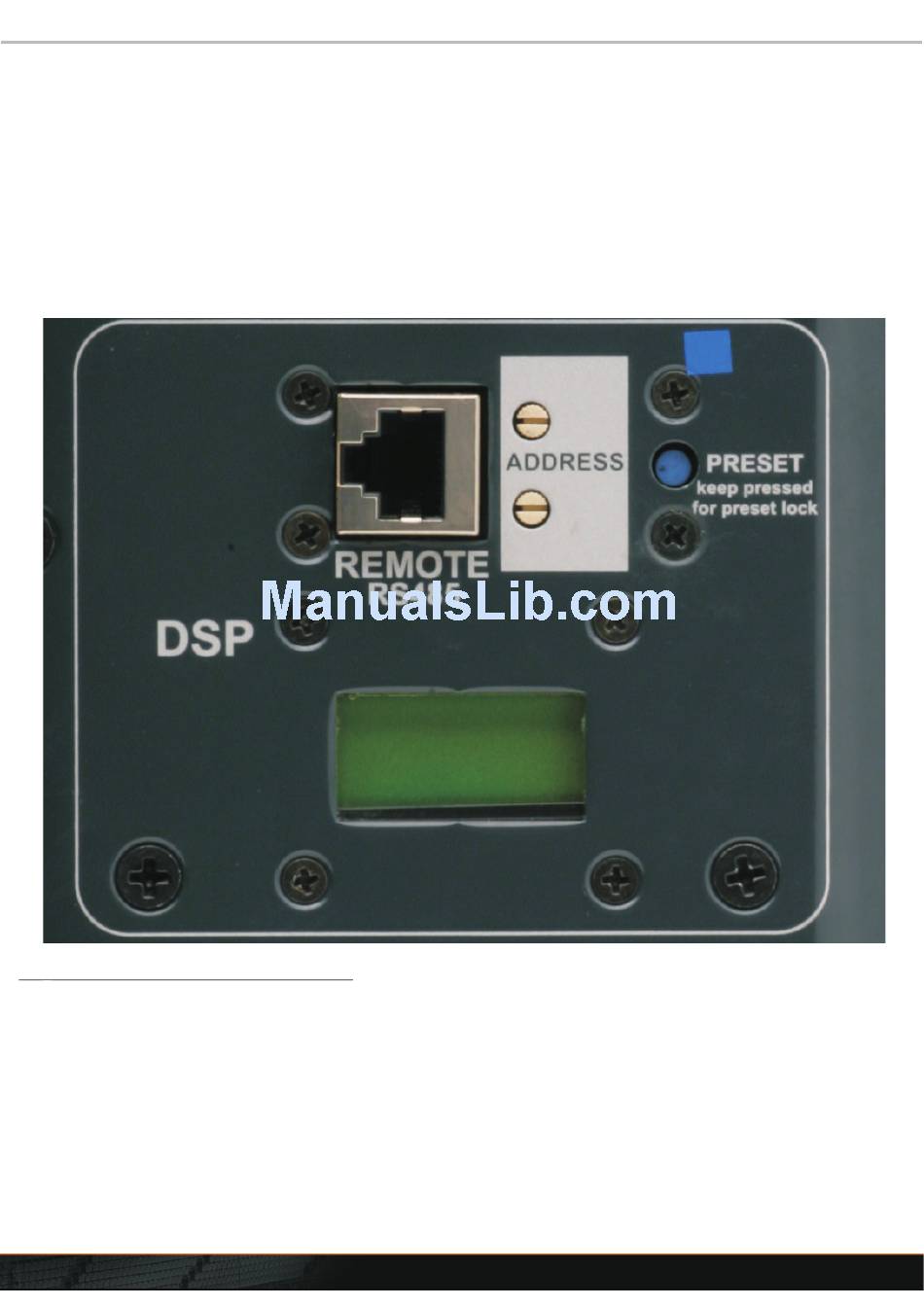

A powerful DSP manages all the functions of the speakers. Each system can store on board 16 preset that can be recalled pushing
the PRESET button. Once the preset will appear on the lower line of the display it will become automatically available after few
seconds. If you desire to set a preset as "default" you just need, once selected it, to keep pressed for five seconds the PRESET
button. After that, this preset will automatically be recall each time you will switch on your module. It is also possible to remote each
module by an RS485 serial port. In order to remote your system, you need to set each module on a different address, so that, in your
chain, no one module will have the same address. Two rotary encoders allow you to set the desired address number that will appear
on the top line of the display. Using the remote control software it is possible to mute each system, select a desired preset loaded on-
board or download a new preset pack.
For remote control operation please refer to REMOTE CONTROL AND SOFTWARE MANUAL in the next pages.
6.1 Cloner function & preset systems
It is possible to clone the entire presets bank from Speaker to Speaker without any PC connected. We will call
SpeakerA the one with the presets bank that you want clone, and SpeakerB the one that will be upgraded.
Set the SpeakerA on ID 99, will appear CLONER on the display
Keep SpeakerB on any ID number between 10 and 90.
Turn off both the speakers and connect by a RJ45 8 poles cable
Turn on the SpeakerB and after the SpeakerA
SpeakerA will start to clone, on the display will appear a cont down (00/15, 01/15, etc)
Wait till 20 seconds after 15/15
Change the ID of the SpeakerA to any other ID and turn off both Speakers
Turning on the SpeakerA check that it is on mode 16x16 and NOT 4x4.
If SpeakerA is in mode 4x4, just turn off the speaker and keep press the Preset button during the turning on
The preset are cloned to the SpeakerB.
