Installation Guide
1: Adding devices to the
system
2: Set country, language
and date/time
3: Start up the
installation menu
6

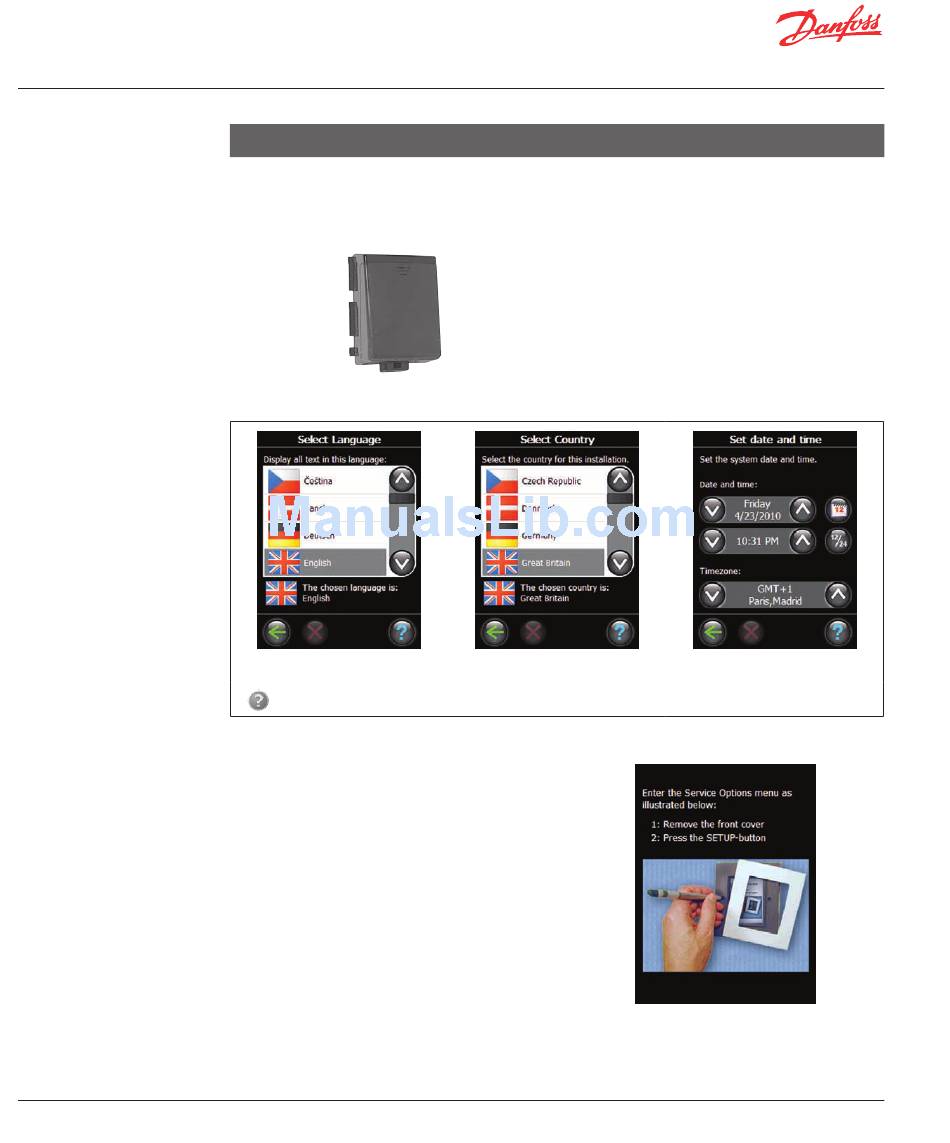

Danfoss Link™ CC - Configuration
Note! Do not configurate the Danfoss Link™ CC until all room devices have been mounted.
When adding devices to the Danfoss Link system,
the distance between CC and device must not
exceed 1.5 m. To accomplish this an installation tool
is offered: Danfoss Link BSU Battery Supply Unit.
1. Select Language.
If lights up, a help text is available and provides you with a description to the process, which is in progress.
Remove the front cover of the Danfoss Link™ CC by
gently pulling it off. Press and hold the setup pin for
3 seconds to start the installer menu.
Danfoss Link can control attached devices in two
different modes:
1. Heating regulation: Control of room heating
devices - more information see Configuration 4:
Create rooms.
2. ON/OFF Functions: Scheduled ON and OFF
control of various electrical devices - more
information see Configuration 7: Adding service
devices.
VISGL45X © Danfoss
Put 10 fresh AA alkaline batteries in the BSU by slid-
ing off the lid.
Be aware of the correct battery polarity.
Slide the lid back on and attach the BSU battery
pack onto the back of the Danfoss Link™ CC. When
you are ready to do the commissioning, turn the
switch located on the BSU to the ON position.
Danfoss Link™ CC will now start up. This might take
several minutes - please be patient . . .
2. Select Country
04/2011
3. Set Date and Time
