Installation

Danfoss Link™ CC - Installation
The Danfoss Link™ wireless system's transmission
range is sufficient for most applications; however
each building has different obstacles affecting com-
munication and maximum transmission distance.
If communication problems occur Danfoss suggests
that accessories would be required to support the
system, such as repeaters. In exceptional cases the
wireless system may not be suitable for your instal-
lation.
Note! Do not power the Devilink™ CC until the manual tells you to do so.
Do not remove the protective film on the touch screen, the end user should do this.

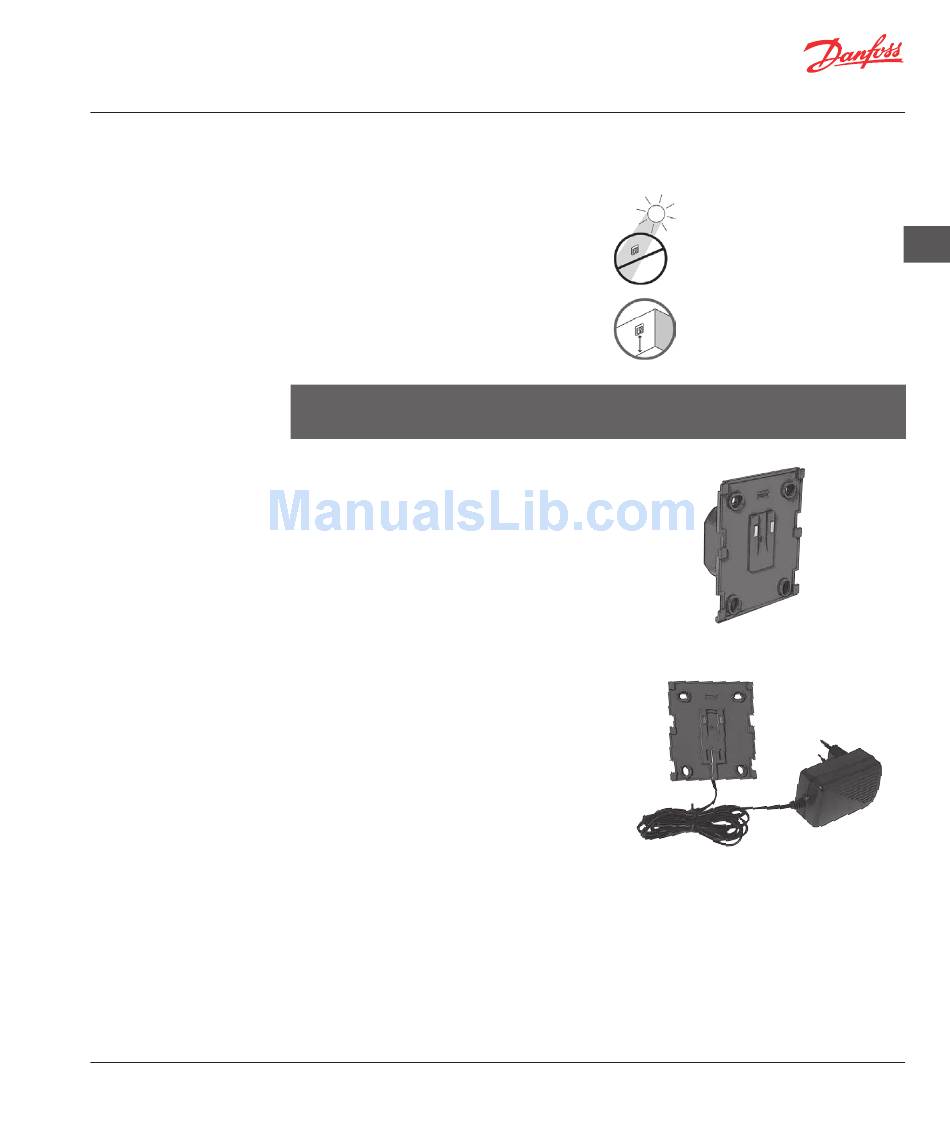

Danfoss Link™ CC can be installed with either a PSU
(in-wall power supply) or a NSU (net power supply.
Installing Danfoss Link™ CC with In-Wall PSU:
• Hold the PSU over the wall box and mark up the 4
screw holes.
Make sure the top is level.
• Drill holes and put fitting plugs in.
• Connect the PSU according to the connection
diagram on the back side.
• Mount the PSU with the 4 screws.
Installing Danfoss Link™ CC with NSU:
• Hold the mounting plate on the wall and mark up
the 4 screw holes. Make sure the top is level.
• Drill holes and put fitting plugs in.
• Mount the mounting plate with the 4 screws.
Do not mount the Danfoss Link™ CC yet!
• Connect the NSU to a power outlet.
VISGL45X © Danfoss
Please be aware of the following, when installing
Danfoss Link™ CC:
Danfoss Link™ PSU (in-wall Power Supply)
Danfoss Link™ NSU (Net Power Supply)
04/2011
Do not install Danfoss Link™ CC,
where it will be subject to direct
sunlight.
The installation height should
typically be between 140-170 cm.
