Installation Guide
2: Changing parameters
for Heat Regulation
12
Danfoss Link™ CC - Modifying an existing installation
Danfoss recommends - especially by electrical heated floors - always to install a floor sensor.
• Comfort heating: Constant temperature on the floor in bathrooms and other rooms where a comfortable
warm surface is required.
• Total heating: Control of room temperature in living rooms etc. Install the floor sensor with the Danfoss
Link™ FT and a Danfoss Link™ RS. Choose Combined regulation when doing the configura tion on the
Danfoss Link™ CC.
Note! Alway use a floor sensor when the heating element is installed on or beneath wooden surfaces and
other surfaces sensitive to temperature !

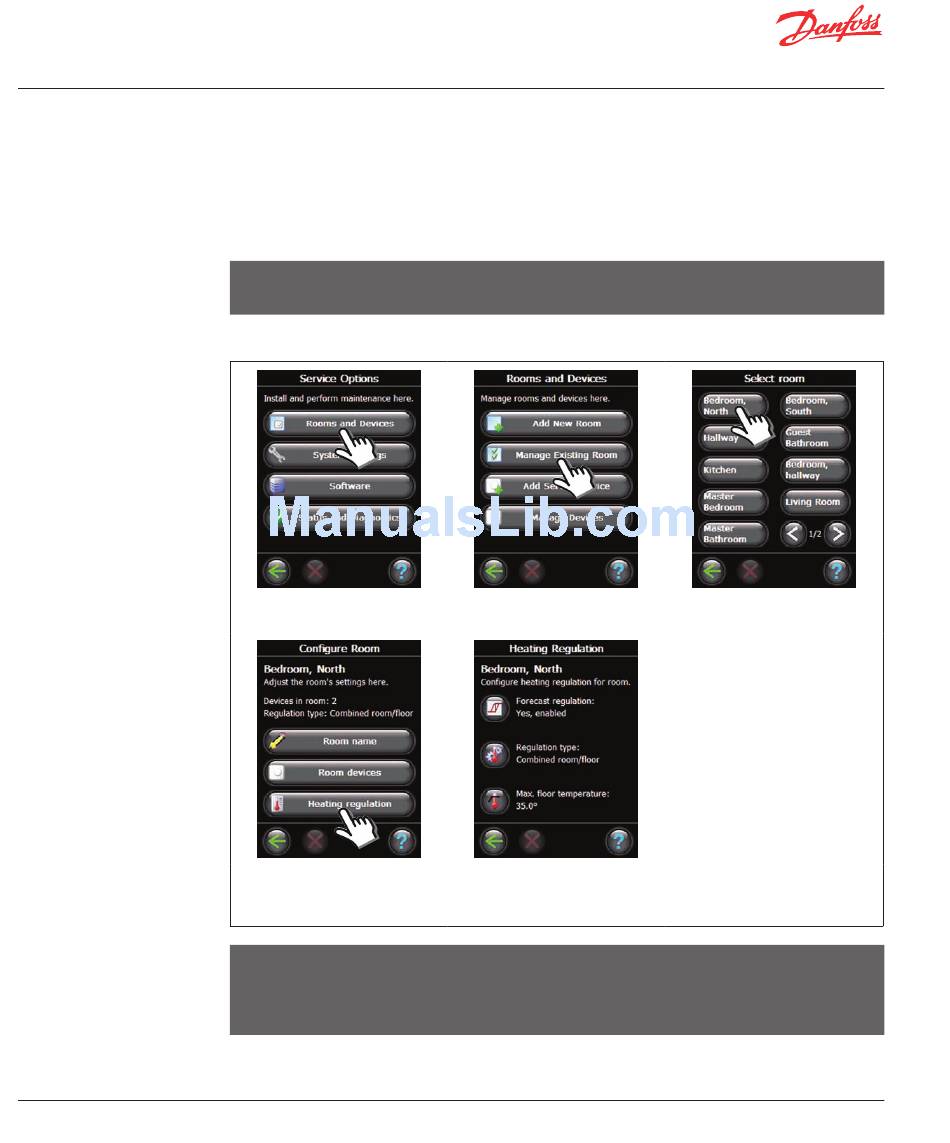

Remove the front cover and press the Set-Up pin for 3 seconds.
1. Select Software.
4. Select Heating regulation.
Note! The floor temperature is measured where the sensor is placed. The temperature at the floor sensor
can differ many degrees from the temperature measured on the top of e.g. a wooden floor. Floor manu-
factures often specify the max. temperature on the top surface of the floor. Please contact your supplier
for information on maximum surface temperature.
VISGL45X © Danfoss
2. Select Manage Existing Room.
5. Choose one of the settings (to
change a setting, please enter
the pin code 0044).
04/2011
3. Select an existing room.
• Forecasting method: by
activation of the forecast
method, the system will
automatically predict the
heating start-up time necessary
to reach desired room tempera-
ture at desired time.
• Regulation type: only in
connection with electrical
heating systems.
• Maximum floor temperature:
the default setting is 35°C.
