8: Perform network test

9: Finalise installation
10
Danfoss Link™ CC - Configuration
After finishing installation, a network test have to be performed, to
ensure, that communication between all added devices and Central
Controller is stable.
Do not perform the network test before CC is mounted at final desti-
nation.

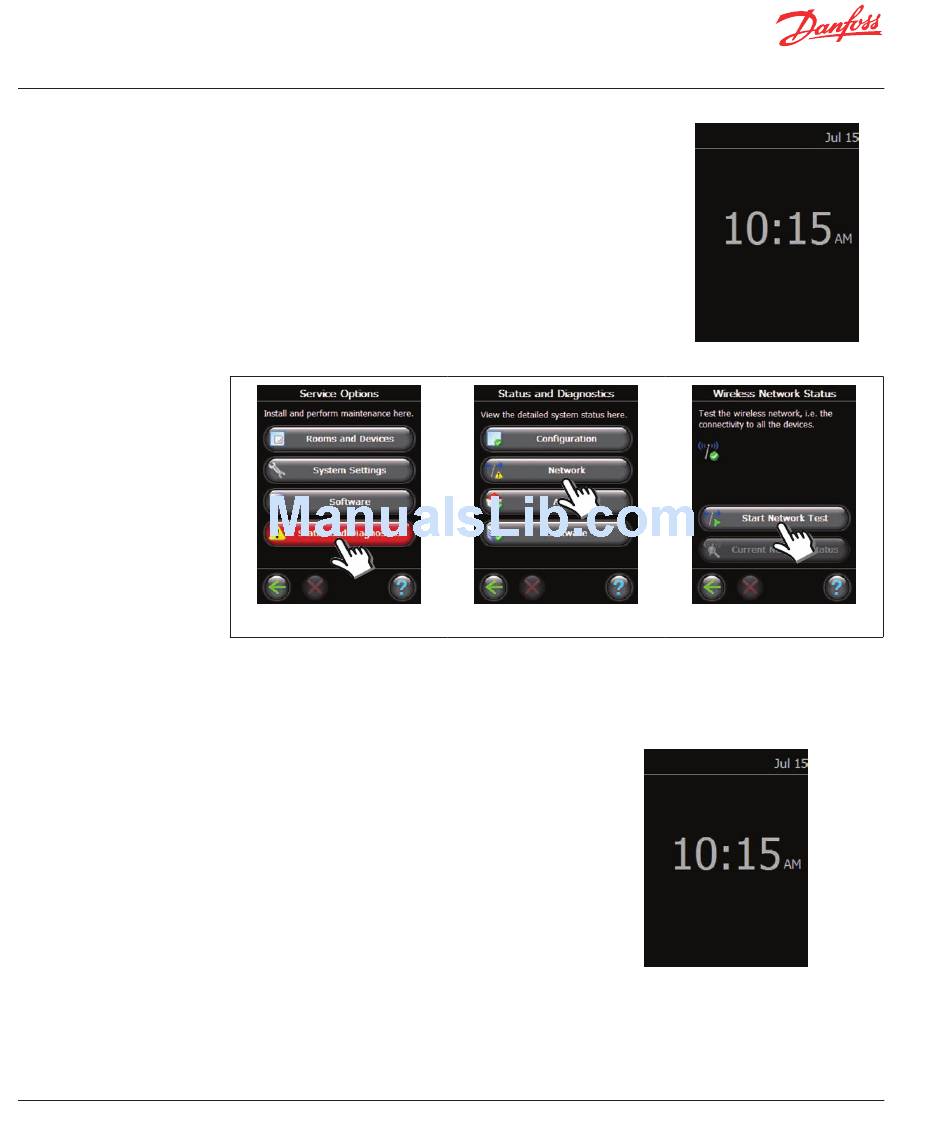

Turn off the battery pack and place the Danfoss Link™ CC on the
previously installed mounting plate. The CC will now power up again
and show you a screen like this.If there is uncertainty about the
network's performance, it is advisable to perform a network test before
the installation is completed entirely.
Remove the front cover and press the Set-Up pin for 3 seconds.
1. Select Status and Diagnostics.
At the end of the network test the CC awaits for all battery operated devices to wake up and report.
To speed up the process to fulfil the network test, you may press any button on the battery operated
devices to force them to report immediately.
Press the Set-Up pin to close the installa tion.
VISGL45X © Danfoss
2. Select Network.
04/2011
3. Select Start Network Test.
