D. Reversible Flue Collar and Horizontal Flue
Heat Shield
Tools Required: #2 & #3 Phillips head screwdriver; 1/2"
wrench

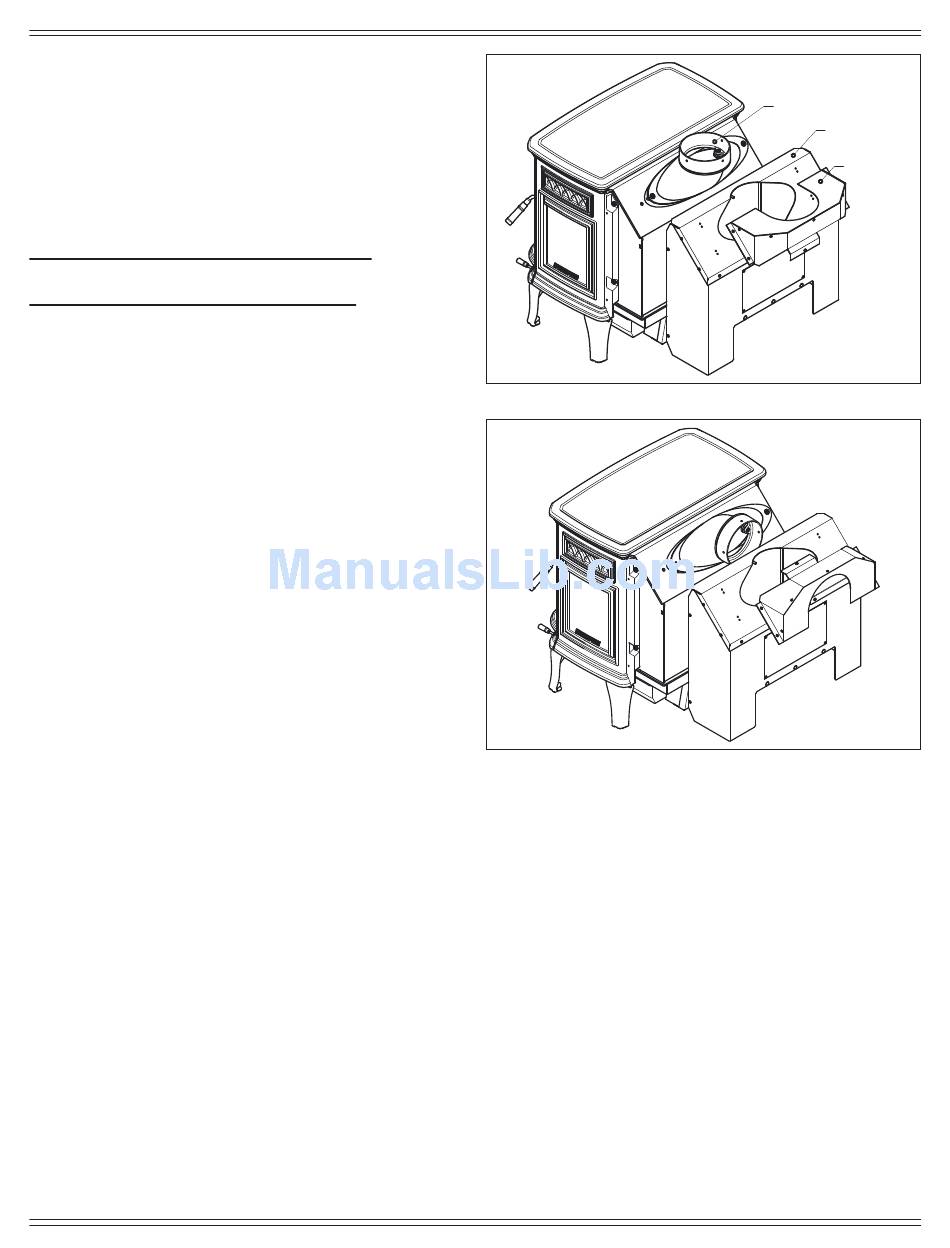

The fl ue collar is reversible for either a top or rear venting
installation. The appliance is shipped with the fl ue collar in
the top vent position. (Figure 17.1)
Converting Collar For Rear Vent Installation
And
Installing Required Horizontal Flue Shield
1. Remove fl ue cover from convection shroud (5 Phillips
screws).
2. Remove convection shroud from appliance (4 Phillips
screws).
3. Remove, rotate 180 degrees and install cast fl ue transition
in the horizontal position.
4. Install convection shroud on to the appliance.
5. Rotate 180 degrees and install the fl ue cover (Use second
set of provided holes).
February 8, 2016
Figure 17.1
Figure 17.2
7062-197B
Explorer I
Flue Transition
Convection Shroud
Flue Cover
17
