Terminal Panel - NEC MultiSync LCD3210 User Manual

Parts Name and Functions
AC IN
RGB 1 (DVI-D)
AC IN connector
1
Connects with the supplied power cord.
RGB 1 IN (DVI-D)
2
To input digital RGB signals from a computer.
* This connector does not support analog input.
RGB 2 IN (mini D-Sub 15 pin)
3
To input analog RGB signals from a personal computer or other
RGB equipment.
RGB 3 IN
[R, G, B, H, V] (BNC)
4
To input the analog RGB signals from a computer or other RGB
equipment. A Sync-on-Green signal can be connected to the G
connector.
RGB OUT
(mini D-sub 15 pin)
5
To output the signal from the RGB 2 or 3 IN connector.
DVD/HD
(BNC)
6 AV
Connecting equipment such as a DVD player, HDTV device, or
Laser disc player.
Denotes an AV unit function.
AV
All AV functions are enabled when the AV unit is installed.

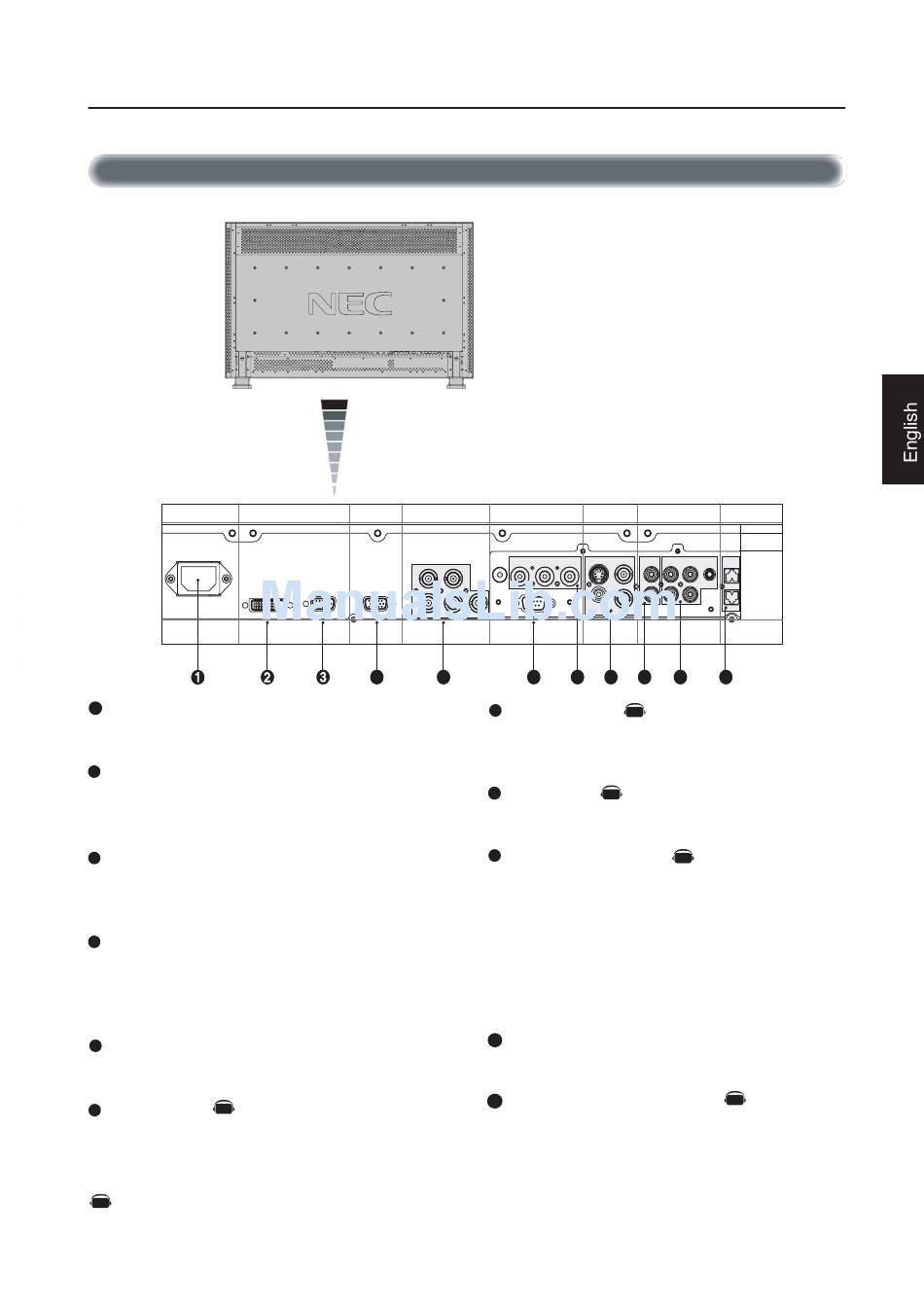

Terminal Panel

LCD monitor
PC IN PC OUT RGB3 IN
H V
RGB 2 (D-SUB) RGB OUT (D-SUB)
R G
5 4
English-7
-continued
DVD/HD IN VIDEO
Y Cb/Pb Cr/Pr S-VIDEO IN OUT OUT
R
L
IN
IN
RS-232 IN
B
6 9 8
10
AUDIO IN 1,2,3
7
AV
Input audio signal from external equipment such as a computer,
VCR or DVD player.
AUDIO OUT
8
AV
Output the audio signal from the selected AUDIO IN source.
VIDEO INPUT/OUTPUT
9
VIDEO IN connector (BNC and RCA): Input a composite video
signal. BNC and RCA are not available at the same time.
(Use only one input).
VIDEO OUT connector (BNC): Output the composite video
signal from the VIDEO IN source.
S-VIDEO IN connector (DIN 4 pin): Input the S-video (Y/C
separate signal). See page 26, S-VIDEO MODE SETTING.
EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232C
10
Input signal from control equipment such as a computer.
EXTERNAL SPEAKER TERMINAL
11
Outputs the audio signal from the selected audio source.
AUDIO SPEAKER OUT
IN3 IN2
IN1
R
L
7
11
AV
AV
