Pinch rollers and grit rollers

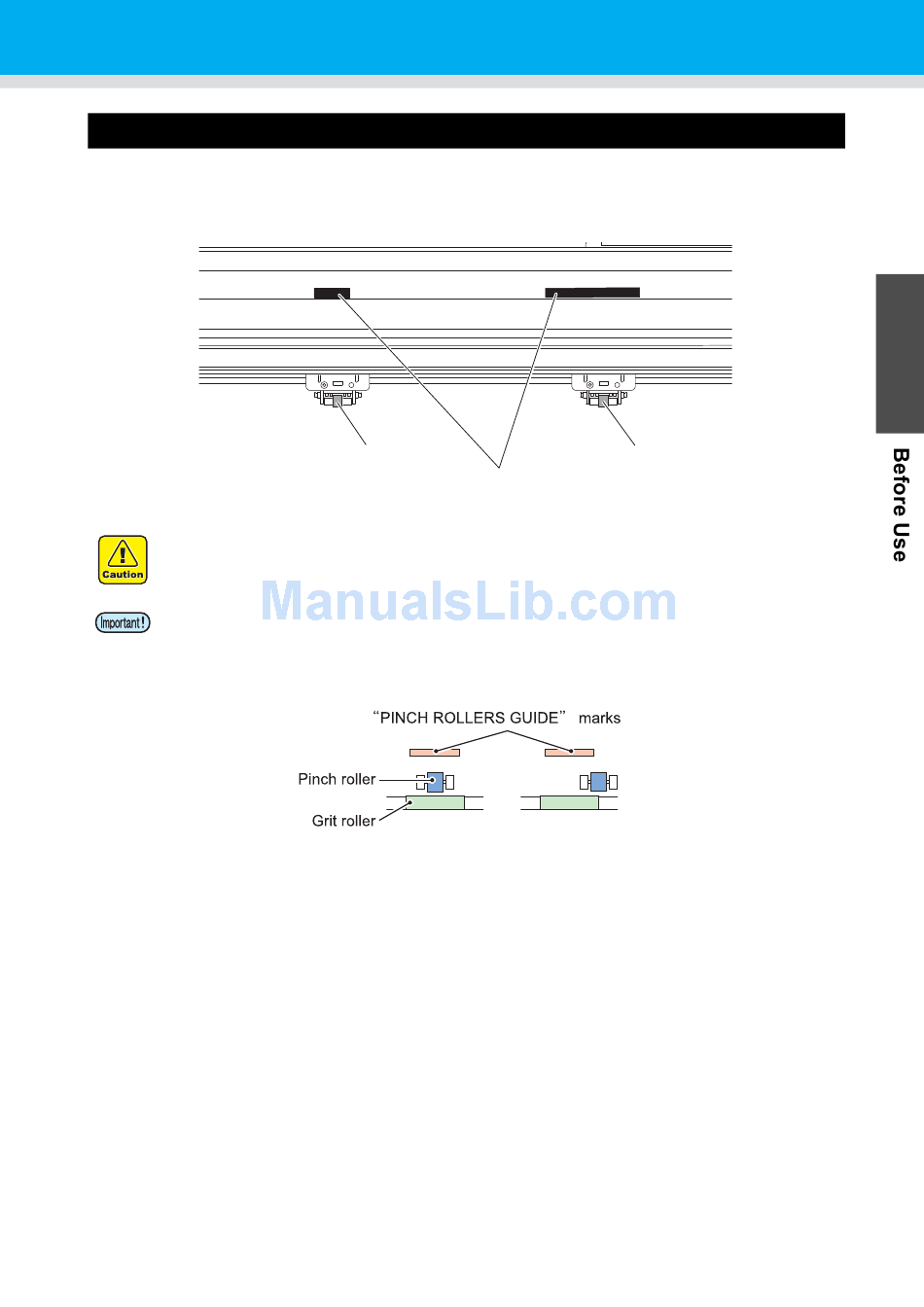

Align the pinch roller to the width of the sheet to be set, and move it to an appropriate position of the grit roller.
The movement range of the pinch roller is as shown below.
Move the pinch roller guessing the pinch roller guide marks as the measure.
• Keep away from the rotating grit rollers. If you touch the rotating grit rollers, you can injure your fingers
with them or your can get your fingers caught between the rotating grit rollers and the platen.
• Be sure to raise the pinch rollers whenever the machine is not operated. Otherwise, the pinch roller
may be deformed.
• Never set the pinch rollers in any positions deviated or separated from the grit rollers. In case the
pinch rollers are not set properly, they may cause an error and the sheet detection cannot be
performed correctly.
Pinch roller 2
"PINCH ROLLERS GUIDE" marks
OK
Configuration and function
Pinch roller 1
Not Good
1
3
4
5
6
1-7
