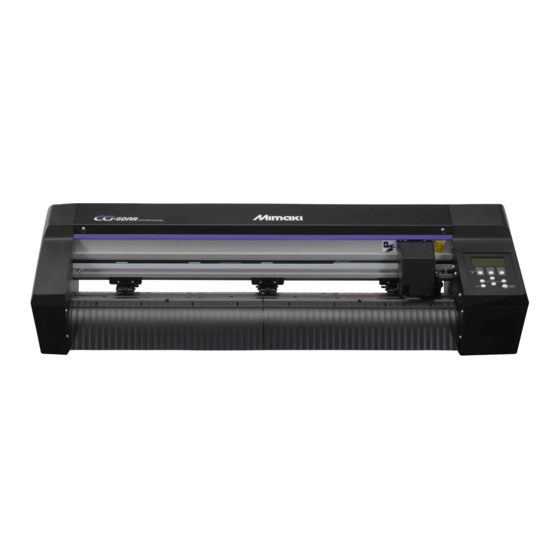

MIMAKI CG-AR Series Care And Maintenance
  1. Manuals
  2. Brands
  3. MIMAKI Manuals
  4. Plotter
  5. CG-AR Series
  6. Care and maintenance

MIMAKI CG-AR Series Care And Maintenance

Hide thumbs Also See for CG-AR Series:
Table of Contents

Advertisement

Quick Links

You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/
D203643-10
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG-AR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI CG-AR Series

Summary of Contents for MIMAKI CG-AR Series

  • Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203643-10 Original instructions...

  • Page 2: Table Of Contents

    Table of Contents Maintenance 1. Maintenance Precautions ............ 4 2. Maintenance Items and Timing...........  5 Items Required for Maintenance............ 5 3. Maintenance Procedure..............  6 Cover (Exterior) Cleaning .............. 6 Cleaning the Y-Bar Rail Surfaces ............ 7 Cleaning the Grit Rollers...............  8 Cleaning the Pinch Rollers ..............

  • Page 3: Maintenance

    Maintenance To ensure years of precise performance, maintain this product periodically based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product.

  • Page 4: Maintenance Precautions

    1. Maintenance Precautions 1. Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. We recommend cleaning this machine and replacing consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when this machine is used for extended periods.

  • Page 5: Maintenance Items And Timing

    "When Not in Use for Extended Periods"(P. 8) Items Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/cutting.html • Avoid storing this product in locations accessible to children.

  • Page 6: Maintenance Procedure

    3. Maintenance Procedure 3. Maintenance Procedure Cover (Exterior) Cleaning • Do not allow liquids to get inside the product. Otherwise there is a risk of failure, electric shock, or fire. • For heavy soiling, wipe using a soft cloth soaked in dilute detergent and thoroughly wrung out.

  • Page 7: Cleaning The Y-Bar Rail Surfaces

    3. Maintenance Procedure Cleaning the Y-Bar Rail Surfaces • Before use, be sure to gently wipe the four rail faces A to D shown in the following figure with a dry cloth to remove any dirt or dust. Dirt on the rails may cause abnormal noise and affect cutting quality.

  • Page 8: Cleaning The Grit Rollers

    3. Maintenance Procedure Cleaning the Grit Rollers With use, the protrusions on the grit rollers may become clogged with paper dust from sheets, causing sheets to slip. To prevent this, visually check for any debris, and clean promptly. A brush (such as a toothbrush) should be used to clean the grit rollers. Use a small amount of alcohol if dirt is difficult to remove.

  • Page 9: Consumable Item Replacement

    To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/cutting.html • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.

  • Page 10: Pen Line Rubber Replacement

    4. Consumable Item Replacement Part name Quanti Note Pinch roller Retaining screw Not used during replacement. Curved E-ring Not used during replacement. E-ring Not used during replacement. O-ring Washer Not used during replacement. l Recommended replacement guide Replace the pinch rollers every month if used for approximately 12 hours per day. Replace the pinch rollers every two weeks if used 24 hours per day.
  • Page 11 4. Consumable Item Replacement Use tweezers to peel off the end of the pen line rubber. • Wipe off any adhesive remaining in the platen slot with alcohol. Attach the double-sided tape provided into the platen slot. Peel off the backing paper from the double-sided tape. Attach a new pen line rubber on top of the double-sided tape.
  • Page 15 CG-AR Series Requests for Care and Maintenance February, 2022 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203643-10-01022022...
  • Page 16 © MIMAKI ENGINEERING CO., LTD.2022 FW : 1.0...
