MIMAKI CG-60SRIII Operation Manual page 142

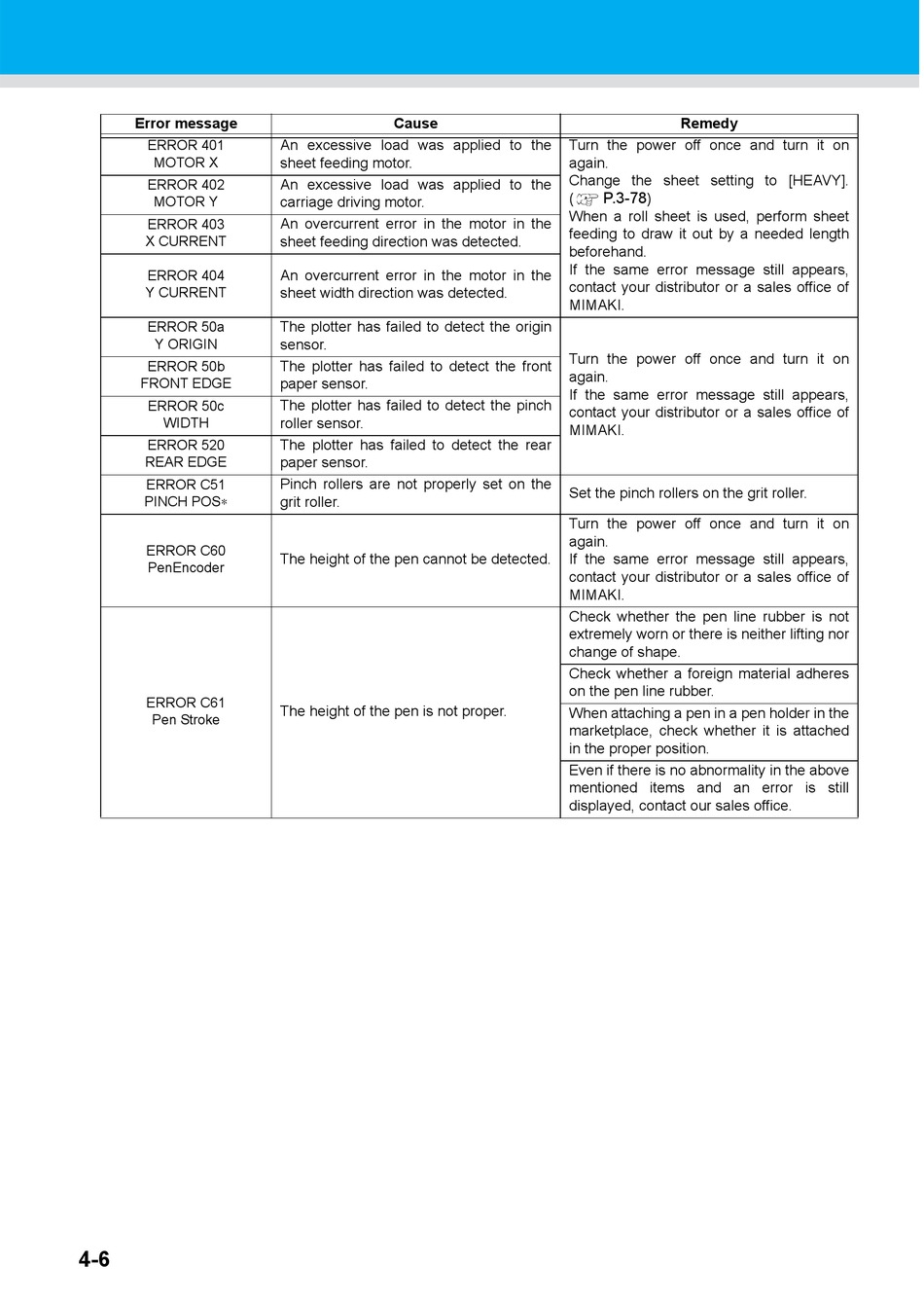

Error message
ERROR 401
MOTOR X
ERROR 402
MOTOR Y
ERROR 403
X CURRENT
ERROR 404
Y CURRENT
ERROR 50a
Y ORIGIN
ERROR 50b
FRONT EDGE
ERROR 50c
WIDTH
ERROR 520
REAR EDGE
ERROR C51
PINCH POS∗
ERROR C60
PenEncoder
ERROR C61
Pen Stroke
4-6
Cause
An excessive load was applied to the
sheet feeding motor.
An excessive load was applied to the
carriage driving motor.
An overcurrent error in the motor in the
sheet feeding direction was detected.
An overcurrent error in the motor in the
sheet width direction was detected.
The plotter has failed to detect the origin
sensor.
The plotter has failed to detect the front
paper sensor.
The plotter has failed to detect the pinch
roller sensor.
The plotter has failed to detect the rear
paper sensor.
Pinch rollers are not properly set on the
grit roller.
The height of the pen cannot be detected.
The height of the pen is not proper.
Remedy
Turn the power off once and turn it on
again.
Change the sheet setting to [HEAVY].
P.3-78 )
(
When a roll sheet is used, perform sheet
feeding to draw it out by a needed length
beforehand.
If the same error message still appears,
contact your distributor or a sales office of
MIMAKI.
Turn the power off once and turn it on
again.
If the same error message still appears,
contact your distributor or a sales office of
MIMAKI.
Set the pinch rollers on the grit roller.
Turn the power off once and turn it on
again.
If the same error message still appears,
contact your distributor or a sales office of
MIMAKI.
Check whether the pen line rubber is not
extremely worn or there is neither lifting nor
change of shape.
Check whether a foreign material adheres
on the pen line rubber.
When attaching a pen in a pen holder in the
marketplace, check whether it is attached
in the proper position.
Even if there is no abnormality in the above
mentioned items and an error is still
displayed, contact our sales office.
