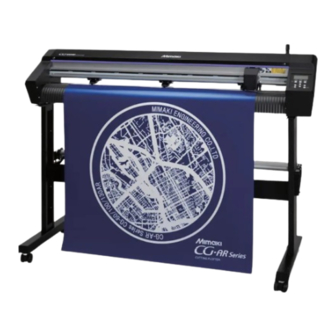

MIMAKI CG-AR Series Support Document
  1. Manuals
  2. Brands
  3. MIMAKI Manuals
  4. Plotter
  5. CG-AR Series
  6. Support document

MIMAKI CG-AR Series Support Document

Hide thumbs Also See for CG-AR Series:

Advertisement

Quick Links

Download this manual
For CG-AR series users
Support document of
cutting with register marks
(ERROR C36 MARK DETECT)
June 2023
Mimaki Engineering Co., Ltd.
Ver:1.00
CSD200035 EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the CG-AR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI CG-AR Series

Summary of Contents for MIMAKI CG-AR Series

  • Page 1 For CG-AR series users Support document of cutting with register marks (ERROR C36 MARK DETECT) June 2023 Mimaki Engineering Co., Ltd. Ver:1.00 CSD200035 EN...

  • Page 2: Table Of Contents

    < Table of contents > 1. Register mark detection after sheet detection ............3 2. Register marks creating condition ................5 3. Register mark setting ....................7 4. Plotting from FineCut ....................9 5. Register mark error when plotting via FineCut and the other errors ....10 6.
  • Page 3 When did “ERROR C36 MARK DETECT” occur? * In this document, the sheet is set in rear side, and the register mark detection setting is set to 1 point (recommended setting). * Hereafter, “FineCut/Coat9” is referred to as “FineCut” in this document. Please check the flow chart below and check and deal with the corresponding parts.

  • Page 4: Register Mark Detection After Sheet Detection

    1. Register mark detection after sheet detection point (1) Are the register marks created with FineCut? Register marks created with Illustrator cannot be read. Created with Created with Only register marks created with Illustrator FineCut FineCut can be detected. point (2) Is the sheet white and the black register marks? Colored sheets and colored register...
  • Page 5 When the clamp lever is raised, the light pointer will illuminate. point You can manually move the carriage left and right. Move the carriage (5) Is the sheet tilted? between TP1 and TP2 and observe the movement line of the light pointer to confirm the tilt of the sheet.

  • Page 6: Register Marks Creating Condition

    2. Register marks creating condition When the register mark is Type 1 (outward-facing register mark) point (1) Is there any object obstructing the area around the register marks? Unprintable area If there are objects in unprintable area, errors may occur in case of sheet misalignment or other issues.
  • Page 7 point The area around the register marks (from the corners of the register marks (7) Is there any data or dirt in the to an area equal to the length of the register marks) is an unprintable area. unprintable area? Ensure that no data is printed in this area and it remains free from dirt.

  • Page 8: Register Mark Setting

    3. Register mark setting Execute the menu. * Press the up/down key to change the setting, press the [ENTER] [MARK DETECT] key to confirm the settings or proceed to the next menu. FUNC1 SET UP <ENT> ENTER MARK DETECT <ENT> Default setting is “OFF”.
  • Page 9 Default setting is “0”. point It is recommended to se the speed to 15cm/s to 20cm/s when the sheet is (7) What are you setting the high- sliding and the register marks cannot be read property. speed limit to? SPD LIMIT: 15cm/s (8) Do you set [SKEW CHECK] Default setting is “OFF”.

  • Page 10: Plotting From Finecut

    4. Plotting from FineCut Please follow the operation instructions. 1. Launch FineCut and click on the [Register Mark] tab in the plot screen. * Rotate the sheet beforehand to ensure it is in the same orientation, and then click on the [Register Mark] tab. 2.

  • Page 11: Register Mark Error When Plotting Via Finecut And The Other Errors

    5. Register mark error when plotting via FineCut and the other errors Measure the distance between the registration marks on the printed point material and compare it with the specified registration mark distance in (1) In case of an error during your data.

  • Page 12: Troubleshooting

    6. Troubleshooting Q. Register mark detection pointer is not turned on. A. Is the register mark detection setting turned off? Set it to “1pt”. [SETUP] -> [MARK DETECT] -> [MARK DETECT] Q. The register mark detection is not capturing the registration marks on the backside. A1.
  • Page 13 Q. The length of the cut is shrinking A. Try setting the high speed limit [SPD LIMIT] in the register mark detection menu to 20 cm/s or lower. GO to [SETUP] -> [MARK DETECT] -> [SPD LIMIT] to adjust the value. - 12 - CSD200035 EN...
  • Page 14 This document was created based on calls received from users. If you cannot solve the problem even after checking the contents of the document, or if you have any questions, please contact your local dealer for assistance. - End of document - - 13 - CSD200035 EN...
