Haier XQJ60-31 Service Manual

Hide thumbs Also See for XQJ60-31:

Advertisement

Table of Contents

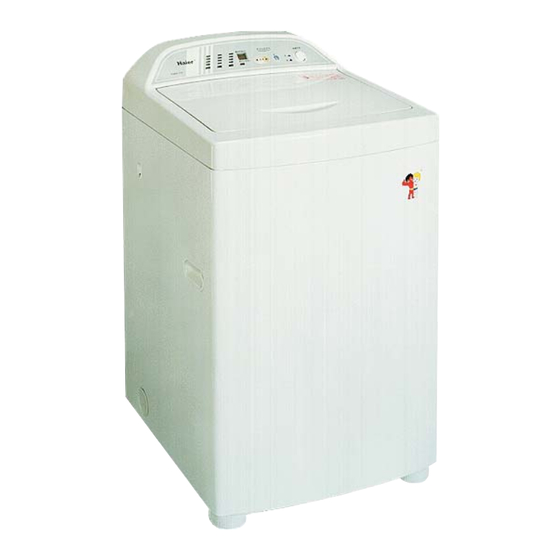

Computerized Automatic Washing Machine
Features:
T op-head model,nice and elegant
Soak wash the wash result is more better
Eccentric plusator better effect
Special No.: HWM5TL

SERVICE MANUAL

3.Names of the Parts................................................................3
4.Usage o f Operating Knobs............................................................4
5.Product Briefs and Major Features..................................................5
7.Tr ouble sh ooting .........................................................................13
view of the compone nts ...................................19
9.
Components List
· þÎ ñÊ Ö²
Models XQJ60-31
Contents
...........................................................1
.. .........7
Edition: 2006.07.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XQJ60-31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haier XQJ60-31

Summary of Contents for Haier XQJ60-31

  • Page 1: Table Of Contents

    Computerized Automatic Washing Machine · þÎ ñÊ Ö² SERVICE MANUAL Models XQJ60-31 Contents 1.Table of Specifications ............1 2.Circuit Diagram 3.Names of the Parts..............3 4.Usage o f Operating Knobs............4 5.Product Briefs and Major Features..........5 ...7 Key Points in Installa tion,...

  • Page 2: Table Of Specifications

    Table Of Specifications HWM5TL Model 230-240V~ 50Hz Rated voltage * rated frequency 5.0kg (weight of standard dry cloth) Rated wash/spin capacity Water level Water quantity Wash capacity Large About 50L 3.5~4.5kg Water level and quantity of different wash capacity Medium About 44L 2.0~3.5kg Small...

  • Page 3: Circuit Diagram

    Overall Dimension Sketch Unit:mm Circuit Diagr am The capacitor coil L is used to protect the circuit,please do not dismantle it Orange Orange Power switch Macro-active switch Blue Black Purple Blue Retractor Stop switch Drain Pump Fuse White Pink Water level sensor Pink Blue Gray...

  • Page 4: Names Of The Parts

    The Actual Circuit Diag Red/Blue ColdWater Gray inletvalve Orange Orange Orange Purple Pink Pink Black Water level Macro-active Hot Water Stop switch Powerswitch switch Sensor inletvalve Control panel seat Blue Orange Gray Fuse White Gray Gray Blue Outer switch Temperature sensor Motor Retractor Drain pump...

  • Page 5: Usage O F Operating Knobs

    Usage of the Operation Knobs...

  • Page 6: Product Briefs And Major Features

    Product Briefs and Major Features <1>Product Briefs (1) Computersequencer It adopts pouring seal with polyurethane on the surface.The light-emitting diode is sealed with insulation bushing to avoid humidity. T o avoid splashing,the bottom of the control panel seat wherethe computer plate is installed adopts enclosed structure,and the surface of the operation components of the front control board is coated with control panel film.
  • Page 7 Product Briefs And Major Features (2) Major features rand new appearance,top head modle: 1+1 control,simple operation Automatic power-off function: Low vibration and low noise: Alarm against breakdown: Imbalance-revising function:...

  • Page 8: Key Points In Installa Tion, Adjustment And Disassembly

    Key Points in Installa tion, Adjustment and Disassembly Please install and adjust the washing machineaccordingto the requirement of this manual. It is important for user's safe and proper using the machine. Install the bottom plate After you open the package,please lean the washing machinegently down on soft Back items ( like the towel cloth, blanket, etc.

  • Page 9: Usage Of The Drain Hose

    Key Points in Installa tion, Adjustment and Disassembly How to changethe direction of the drain hose Cover outer drain hose to drain outlet of washing machineand fasten with drain hose clamp. Usage of the drain hose 0.8m<H<1.2m The drain hose must be hang up when using the washing machine.The high of the drain hose less than 1.2m.
  • Page 10 Key Points in Installa tion, Adjustment and Disassembly Confirm the water faucet Water faucet, not suitable Water faucet, suitable Outlet end surface It is required that the front end shall be longer than 10cm. The outlet end surface of the faucet shall be flat and smooth. If not please file it to avoid leakage.
  • Page 11 Key Points in Installa tion, Adjustment and Disassembly Conn ectio n betw een the water in let hose and the was hin g machin e 1.Do not take off the water absorption cushion. Nut of the water inlet hose Please check if the cushion is dropped or damaged before each usage.
  • Page 12 Key Points in Installa tion, Adjustment and Disassembly 2. Key points in Disassembly Points of attention in maintenance (1) General attention Be sure to pull off the power plug in disassembly or maintenance. The wiring between the conductionwires mostly adopts AMP terminal. Keep the terminal in good condition during dismantling or maintenance.
  • Page 13 Key Points in Installa tion, Adjustment and Disassembly (2) Points of attention in assembly: Fix the wiring in the control panel seat to its original position. Do not make it touch sharp corner and mobile position. The space surrounding the computersequencer is rather narrow. Please dispose it carefully and do not make the wire squeezed into the gapbetween the front control board and the control panel seat.

  • Page 14: Trouble-Shooting

    Trouble-shooting T able 1. Trouble alarm and solve method In spinning after washing and The top lid is not closed. Close the top lid. rinsing, the machine stops running. The draining does not work, (The WASH,RINSE and SPIN Is the drain hose blocked Clean the foreign materi al indicator flash and alarming by foreign material?
  • Page 15 Trouble-shooting T able 3. Trouble-shooting charts 1. No action(The indicator is off) Confirm that there's n o power failur e, and the power plug is ins erted reliably. Th e power sw itch is at "On" mode. Measure the voltage Exist Replace the sequencer.
  • Page 16 Trouble-shooting T able 2. No water filling Switch on the power. Push the START/P AUSE button. Remove the foreign materials of the water Exist Confirm the action sound inlet valve filter screen or raise the water of the water inlet valve? pressure to 0.03Mpa-0.78MPa before use.
  • Page 17 Trouble-shooting T able 4. No draining Set rinse or spin. Start the machine. Roll up normally Check the drain system like Check if the E lectro-magnet iron acts? the drain valve etc. Measu re the Exist voltage of the two ends of Re place the Electro-magnet ir on the E lectro-magnet ir on No Exist...
  • Page 18 Trouble-shooting T able 6. No spinning The washing and draining are normal. No On/Off point Check the On/Off point of the Replace the safety switch. safety switch. Normally Check if the clutch pawl Replace the Electro-magnet iron is pulled enough. Replace the retarder .
  • Page 19 Trouble-shooting T able 8. T oo much noise in washing If the noise of the motor Replace the motor. is too much? If the motor fast ened tightly? Fasten the motor. If t he inner gear of the retarder Replace the retarder. is engaged well? If the belt is too tight Adjust the belt.

  • Page 20: Exploded View Of The Compone Nts

    Sincere Forever Haier Group Haier Industrial Park, No. 1, Haier Road 266101,Qingdao,China http://www.haier.com...
