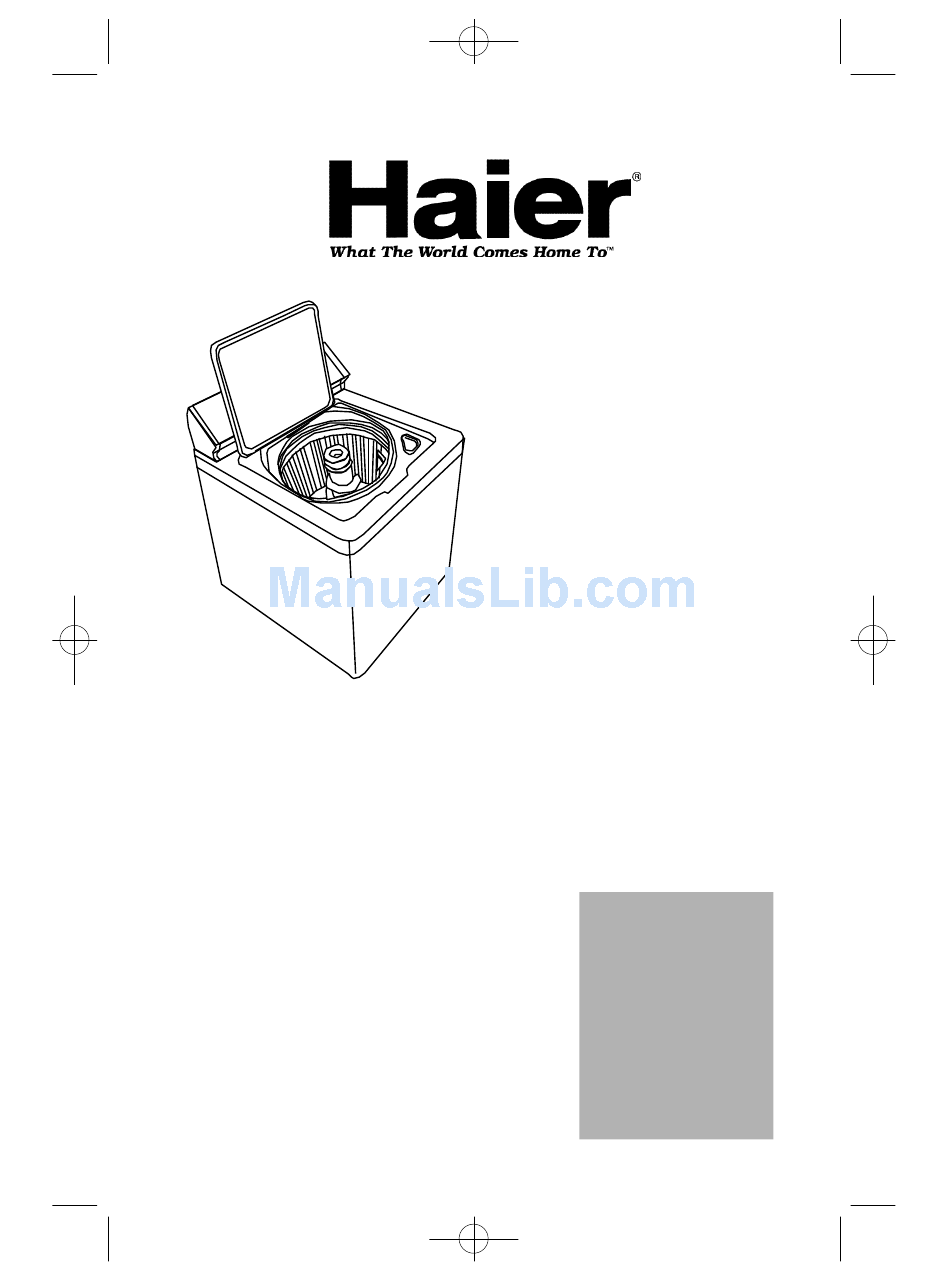

- Page 1 XQJ100-96A manual 10/22/01 11:30 AM Page 1 Top Load Clothes Washer Lave-Linge Automatique à Dessus Frontal Pour des Vêtements Lavadora Automática Para las Ropas de Cargado Tapa User Manual- Model # Guide de l’Utilisateur- Modèle XQJ100-96A Manual del Usuario- Para Modelo de...
-
Page 2: Safety Instructions
12. Do not add or mix any flammable or explosive substances to the wash. 13. Do not try to remove clothes while the tub or the agitator is moving. Let it come to a complete stop before use. -
Page 3: Save These Instructions
If this is the case, before using the washer turn on all the hot faucets and let the hot water run for a few minutes. This will let the trapped hydrogen escape. During this process do not turn on an electric appliance, smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen gas is flammable and can explode. -
Page 4: Table Of Contents
OPERATING INSTRUCTIONS ............4 Parts and Features..................4 Operations ....................5 Normal Operating Sounds..............10 Lint Filter....................11 Safety Lid Switch..................11 Care and Cleaning Guide ............11 Cleaning and Maintenance ..............12 Moving and Vacationing ..............13 Storage of Your Washer ..............13 Troubleshooting ................14 INSTALLATION INSTRUCTIONS ............16 Tools and Materials Required..............16 Unpacking Your Washer ..............17... -
Page 5: Operating Instructions
WARM WARM COLD WARM COLD PULL TO START PUSH TO STOP 8 CYCLES - HEAVY DUTY - 2 SPEED HAND W ASHABLE DELICATES SUPER CAPACITY 1. Temperature Control Knob 5. Liquid Fabric Softener Dispenser 2. Load Size Knob 6. Inner Wash Tub 3. -
Page 6: Operations
This will turn the washer "ON". To turn the washer off, move the knob to "OFF" position. Soak Cycle: This is used for heavily soiled or stained clothes. Here the tub fills with water than pauses to soak the clothes. The cycle is completed when water is extracted by spinning of the drum. - Page 7 This cycle is approximately 9 minutes for regular wash and 6 minutes for light wash. Load Size/Water Level: • Depending on the size of your load that you want to wash, you can select the appropriate water level settings: Small, Medium or Large.
-
Page 8: Loading The Washer
Hold it until you have the amount of water you need. Once done, return to your original load size setting. Warning: If you hold the RESET knob for an extended periods while the washer is running then it will cause washer to overflow. -
Page 9: Proper Use Of Detergent
Note: You can use less or more detergent depending on the size of the load, water type in your living area, whether it is soft or hard and whether the clothes are heavily soiled or lightly soiled. -
Page 10: Bleach Dispenser
Note: Use only liquid bleach in dispenser. You can use powdered bleach by directly adding it to wash tub. Warning: • Be careful not to spill undiluted bleach on the washer cabinet or your clothes. As it is a strong chemical, it may damage some of your clothes or the finish of the washer if not properly diluted. -
Page 11: Normal Operating Sounds
Non-colors Fabrics, lingerie with light or normal soil clothes & special care fabrics Note: Hot water needs to be at a temperature of at least 120˚F – 140˚F. (49˚C- 60˚C) for the soap to dissolve and to avoid soap residue remains on clothes. -
Page 12: Lint Filter
Note: It does not require any maintenance or special cleaning. Safety Lid Switch • If for any reason you open the lid in the middle of the wash cycle, the washer will not spin and will shut off automatically. Once the lid is... -
Page 13: Care And Cleaning Guide
• Remove pins or other sharp objects from clothes to prevent scratching interior parts. • Leave lid open after you are done washing to allow inside of washer to dry and prevent bad orders. -
Page 14: Moving And Vacationing
Storage of Your Washer in Cold Environment • The Washer must be stored at room temperature. • If you just got delivery of a washer when outside temperature is below freezing, do not operate until washer has warmed to room temperature. -
Page 15: Troubleshooting
• Check if the washer is overloaded: load may need to be re-balanced and clothes may need to be redistributed. • Check if the lid is open. You may have to close the lid properly. • Check if the control knob is set properly. You may have to adjust the control knob. - Page 16 • Spots or stains on your clothes: this is due to incorrect use of fabric softener. You may need to read proper instructions on the container and follow proper directions for using the softener.
-
Page 17: Installation Instructions
10/22/01 11:30 AM Page 17 English INSTALLATION INSTRUCTIONS Tools and Materials Required You will need to have following tools to help you in the installation of your Washer: • Scissors • Phillips Screwdriver • Standard Screwdriver • Pliers • Wrench •... -
Page 18: Unpacking Your Washer
• To remove the cardboard shipping brace from the washer, step on the cardboard base and tilt the washer back, until the security shipping screw is free from the base. Slide out the cardboard base and lower the washer in place. Open the top lid to remove the styrofoam drum brace. -
Page 19: Steps For Installation
English Steps for Installation • Select a suitable location for the washer on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the bottom corners of the washer. - Page 20 4. Install the drain hose hook to the outer drain hose tube. Using the drain hose clamp, attach the drain hose to the unit as shown below. 5. Plug in the Washer to a regular 115 volt / 60 Hz, 15 amp outlet.
-
Page 21: Electrical Connections
This appliance is equipped with a cord having a grounding wire with a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded. -
Page 22: Warranty
Damage to clothing. workmanship. Haier is solely responsible for Damage incurred in shipping. - Page 23 IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA...
