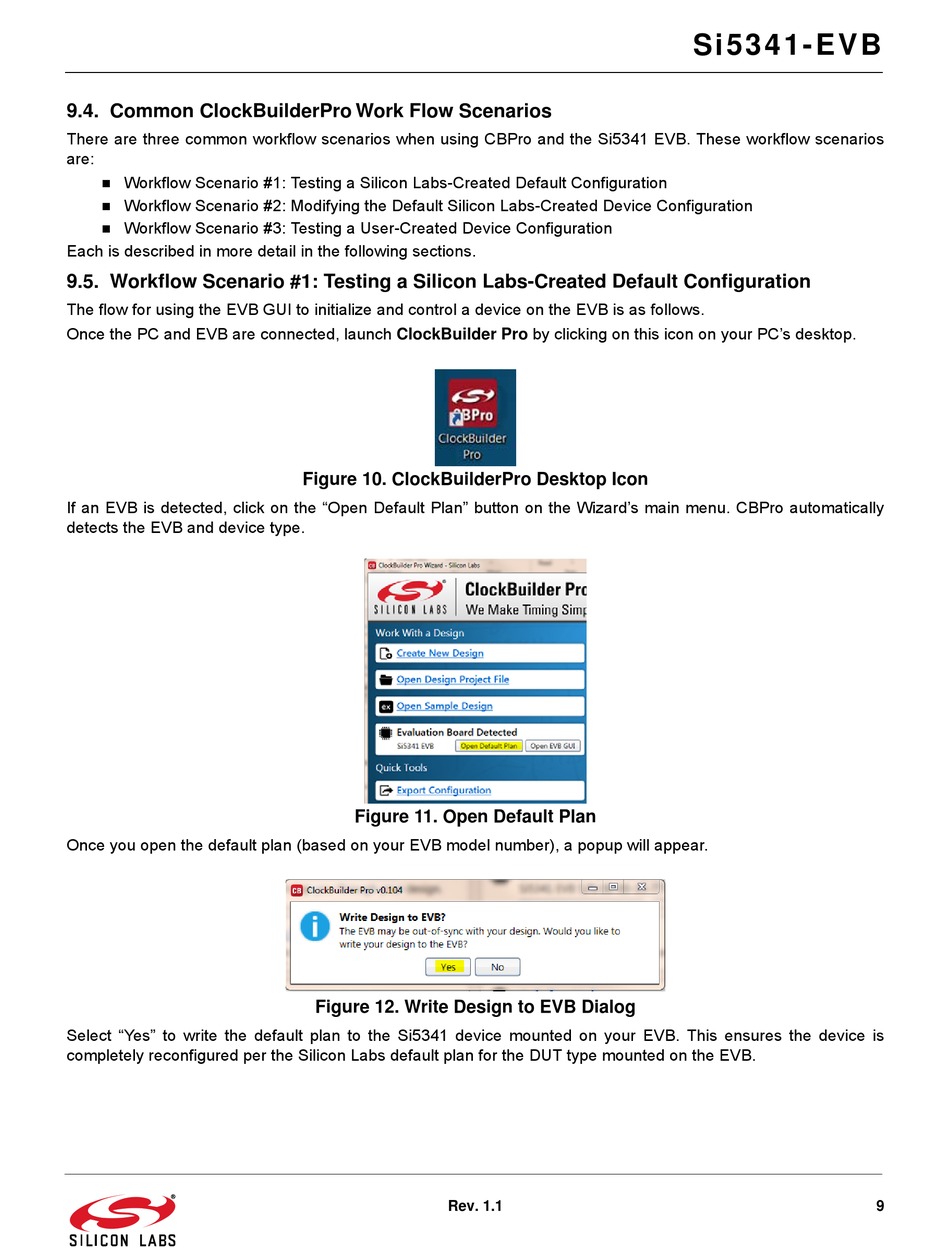

9.4. Common ClockBuilderPro Work Flow Scenarios
There are three common workflow scenarios when using CBPro and the Si5341 EVB. These workflow scenarios
are:
Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration

Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device Configuration

Workflow Scenario #3: Testing a User-Created Device Configuration

Each is described in more detail in the following sections.
9.5. Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
The flow for using the EVB GUI to initialize and control a device on the EVB is as follows.
Once the PC and EVB are connected, launch ClockBuilder Pro by clicking on this icon on your PC's desktop.
If an EVB is detected, click on the "Open Default Plan" button on the Wizard's main menu. CBPro automatically
detects the EVB and device type.
Once you open the default plan (based on your EVB model number), a popup will appear.
Select "Yes" to write the default plan to the Si5341 device mounted on your EVB. This ensures the device is
completely reconfigured per the Silicon Labs default plan for the DUT type mounted on the EVB.
Figure 10. ClockBuilderPro Desktop Icon
Figure 11. Open Default Plan
Figure 12. Write Design to EVB Dialog
