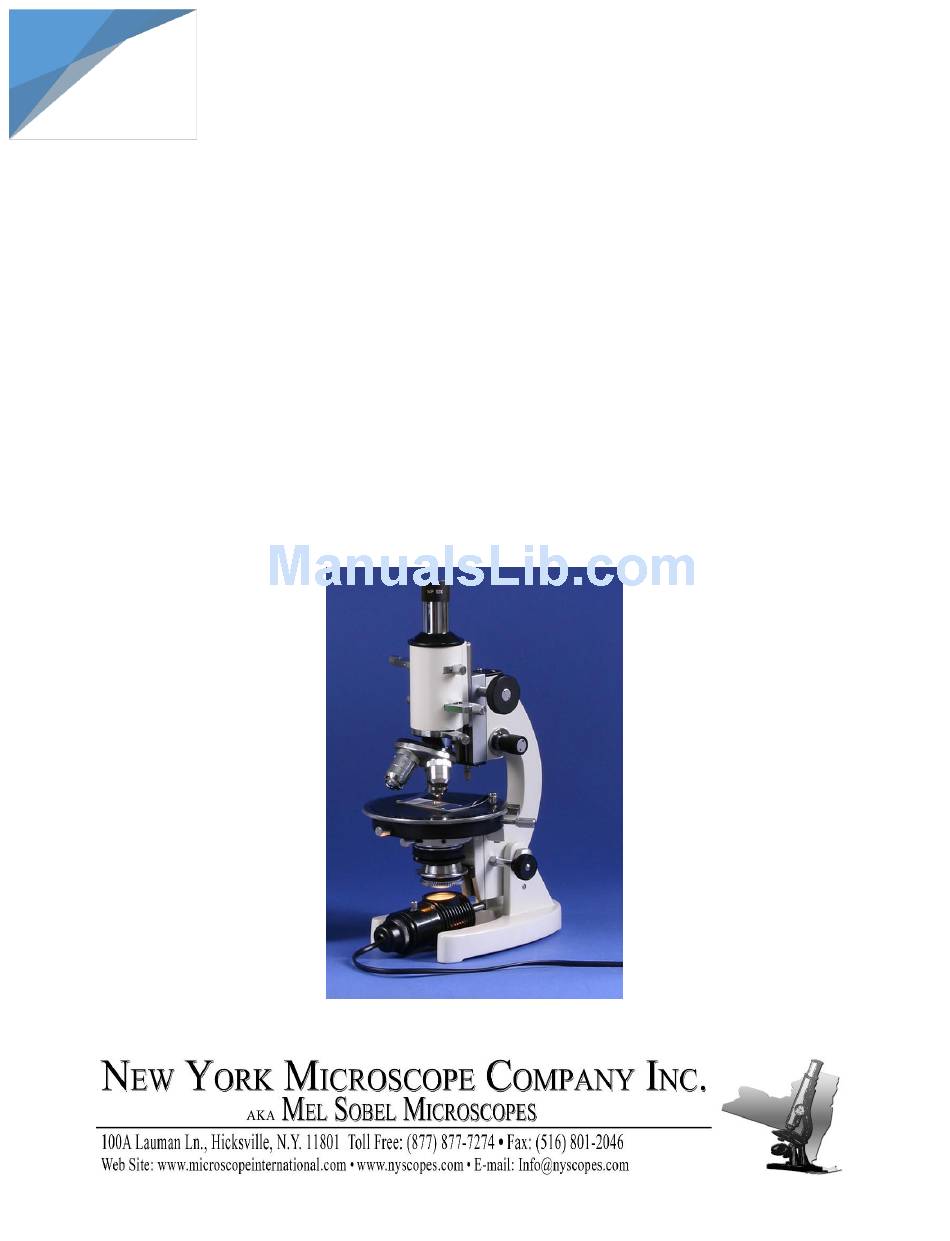

- Page 1 ® STEINDORFF POLARIZING Microscope Model Number SPMM User Manual...
- Page 2 ® STEINDORFF PARTS LAY-OUT LIST OF PARTS 1. Eyepiece Condenser Knob 2. Microscope Tube Reflector 3. Bertrand Lens Polarizer Coarse Motion Knobs 13. Rotating Stage Fine Motion Knobs Objective Tube Lock Nosepiece Stage Clips Mica & Gypsum Plate Stage Lock...
- Page 3 ® STEINDORFF The Observation of Orthoscope Usually to observe a tissue section by Microscope, the condenser should be lower down and the Bertrand lens is taken away from the light path. Doing like this way, the optical nature of minerals be able to be observed by means of getting in visual field of transmitting parallel light.
- Page 4 ® STEINDORFF High Power objective 40x is most suitable to get an image of Conoscope. The condenser might to be put on a higher position for better results. Maintenance of Lens Surface Wipe off dust deposited on the lens surface with a soft brush or blow it off with a blower. Lightly and carefully wipe off finger prints or oily stains with a soft, clean, cotton cloth, gauze, or lens paper moistened with a suitable lens cleaner.
