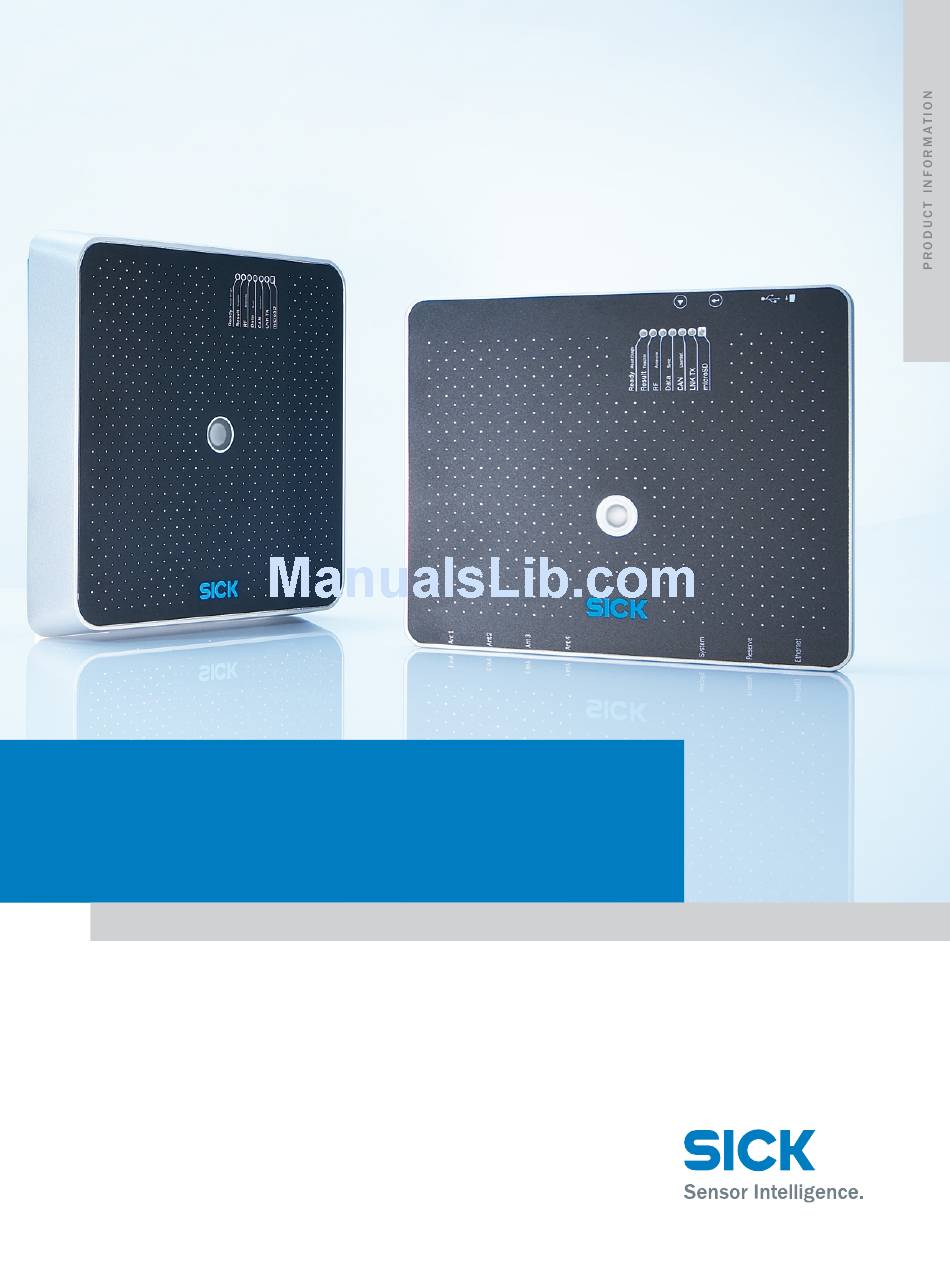

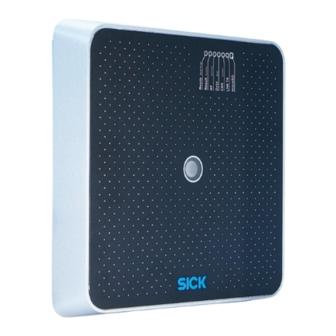

- Page 1 RFU63x Interrogators (Write/Read Units) Intelligent technology ensures easy integration...
- Page 2 The RFU63x sets new standards for automatic identification with RFID. through its combination of high-performance hardware and intelligent software, the RFU63x is capable of solving the most demanding auto Id tasks in industrial automation. The RFU63x fulfills industry standards such as EPCglobal and ISO/IEC 18000-6C and reads/writes to conventional passive storage media.
- Page 3 Identification of special load carriers 8014330/2012-12-19 R F U 6 3 x – I n t e R R o g a t o R s ( W R I t e / R e a d U n I t s ) | s I c K Subject to change without notice...
-
Page 4: Additional Information
Product description The RFU63x is an ultra-high frequency ment system. With IDpro compatibility, (UHF) RFID solution for industrial en- the RFU63x is easy and cost-efficient to vironments. Via integrated application integrate in common industrial environ- management software, the RFU63x is ments. - Page 5 RFU63x Interrogators (write / read units) detailed technical data Features compact device with integrated antenna Interrogator (write/read unit) (write/read unit) Version Long Range Carrier frequency Europe 865 MHz ... 868 MHz North America 902 MHz ... 928 MHz Australia 920.25 MHz ... 925.75 MHz –...
- Page 6 Protocol TCP/IP, EtherNet/IP, PROFINET can bus Function Host Protocol CSN (SICK CAN Sensor Network) PRoFIBUs dP l, optional via external connection module (CDF) switching inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB620/CDM420) switching outputs 4 (“Result 1”, “Result 2”, 2 outputs via optional CMC600 in CDB620/CDM420)
-
Page 7: Ordering Information
RFU63x Interrogators (write / read units) ordering information • Frequency band: UHF (860 ... 960 MHz) • Version: Long Range Product category Radio equipment type approval model name Part no. Europe (EN 302 208-2 V1.4.1) RFU630-13100 1054396 North America (FCC Part 15) -
Page 8: Dimensional Drawings
RFU63x Interrogators (write / read units) dimensional drawings dimensions in mm (inch) RFU630-1310x 64.3 (2.53) 238.6 (9.40) 1 4 x antenna input (“external”, TNC plug, reverse) 2 “Power/Serial Data/CAN/I/O” connection 3 “Ethernet” connection 4 1 x LED multi-color (process feedback) - Page 9 RFU63x Interrogators (write / read units) RFU630-0410x 40.1 (1.58) (9.41) 1 4 x antenna input (“external”, TNC plug, reverse) 2 “Power/Serial Data/CAN/I/O” connection 3 “Ethernet” connection 4 1 x LED multi-color (process feedback) 5 7 x LED for status display...
- Page 10 Small connection module for one sensor, 4 cable glands, base for CMC600, 1.2 A fuse CDB620-001S02 1056432 Illustration may differ CDF600 fieldbus proxy to connect a RFU63x to a PROFIBUS network CDF600-0120 1056443 Fieldbus proxy/gateway for connecting identification sensors to PROFIBUS-DP networks CDF600-2100...
- Page 11 RFU63x Interrogators (write / read units) Plug connectors and cables Kurzbeschreibung Artikelnr. Ethernet cable, 4-pole, shielded, M12 plug, 4-pin (D-type encoded) / RJ-45 plug, 8-pin, 2 m 6034414 Ethernet cable, 4-pole, shielded, M12 plug, 4-pin (D-type encoded) / RJ-45 plug, 8-pin, 3 m...
- Page 12 RFU63x Interrogators (write / read units) Kurzbeschreibung Artikelnr. Cable, M12, 17-pin, to connection module CDx 15-pin D-sub, 3 m (socket/plug), drag-chain compliant 2061605 Extension cable, 3 m, 15-wired, shielded, with 15-pin D-sub HD (plug/socket) AWG26 6034418 Extension cable, 2 m, 15-wired, shielded, with 15-pin D-sub HD (plug/socket) AWG26...
- Page 13 notes 8014330/2012-12-19 R F U 6 3 x – I n t e R R o g a t o R s ( W R I t e / R e a d U n I t s ) | s I c K Subject to change without notice...
- Page 14 notes R F U 6 3 x – I n t e R R o g a t o R s ( W R I t e / R e a d U n I t s ) | s I c K 8014330/2012-12-19 Subject to change without notice...
- Page 15 – your quick access to maximum efficiency Singleturn/Multiturn HIPERFACE DSL ® Search online quickly and safely with the SICK “Finders” Product Applications Literature Service Connection diagram Accessories Spare part Software Product Finder: We can help you to quickly target the Literature Finder: Go directly to the operating instructions, product that best matches your application.
- Page 16 • Laser measurement technology for lity of products, requests for quotation from SICK will provide you with an ideal detecting the volume, position and and online orders basis for your plans – there is no need contour of people and objects to settle for anything less than the best.
