O P E R A T I N G I N S T R U C T I O N S

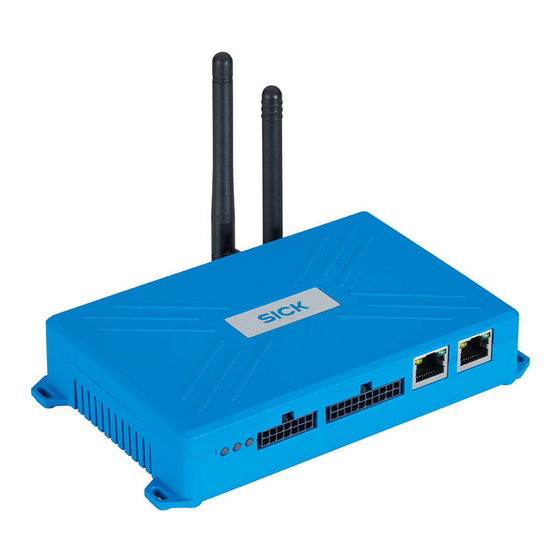

TDC-E (Telematic Data Collector)
Gateway systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC-E and is the answer not in the manual?

Questions and answers

Related Manuals for SICK TDC-E

Summary of Contents for SICK TDC-E

  • Page 1 O P E R A T I N G I N S T R U C T I O N S TDC-E (Telematic Data Collector) Gateway systems...
  • Page 2 This document is a translation of an original document of SICK AG. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 3: Table Of Contents

    Time ....................38 7.2.5 Logs ..................... 39 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 4 Creating users ..................88 8.6.3 Changing user password ..............89 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 5 TDC-E pin assignments ................... 102 12 Disposal ........................104 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 6: About This Document

    More information on this can be found in the customer documentation. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 7: Target Groups

    Wireless Local Area Network WLAN 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 8: Further Information

    Figures may differ from the actual design. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 9: For Your Safety

    In case of damage, contact SICK Service. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 10: Requirements For The Qualification Of Personnel

    NOTE Important information and useful notes. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 11: Sources Of Danger

    Read document Disconnect before maintenance or repairs 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 12: System Description

    8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 13 Tab. 2: DIN mounting rail bracket (optional) 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 14: Data Collection

    • The TDC-E motion data is processed together with the received GPS data. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 15: Data Processing

    Linux operating system Docker Container with application 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 16: Data Transmission

    REST API interface integrated in the TDC-E. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 17 • Thanks to the defined topic structure, this service is able to retrieve the messages and continue to process them. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 18 • The TDC-E has the role of data provider. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 19: Status Display On The Tdc-E

    Tab. 3: Status display on the TDC-E 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 20: Mounting

    Fig. 11: Sliding the cover of the SIM card holder to the side 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 21: Mounting Device

    Securely attach the device using four M3 fillister head screws. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 22: Mounting On Din Mounting Rails

    Attach the mounting rail bracket to the mounting rail via the lugs, making sure it audibly engages. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 23 Place the TDC-E on the bar and use the mounting holes on the mounting rail bracket to screw it on. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 24: Electrical Installation

    Cover or enclose live parts in the vicinity. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 25: Connection Overview Of Tdc-E

    NOTE A detailed pin assignment can be found in the appendix. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 26: Connector

    Please also refer to section 11.3 TDC-E pin assignments appendix. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 27: Connecting The Voltage Supply

    Connecting the TDC-E to the voltage supply 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 28: Connecting Antennas

    Plug the Cinch male connector at the end of the connecting cable into the MCX female connector on the TDC-E. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 29: Configuration

    NOTE We recommend using Google Chrome. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 30: Initial Registration

    ▸ Create initial user with Save. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 31: Performing Registration

    Configuration of the interface for data transmission via MQTT or WebSocket 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 32: Configuration Of The Device Settings

    It can switch to the user administration here and log out of the Device Manager. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 33: System Settings

    The reboot takes about 180 seconds. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 34: Maintenance

    • Allows the TDC-E to be reset to factory settings. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 35 ▸ Install backup afterwards with Apply. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 36 PUT/system/reset/system "reset": "true" PUT/system/reset/data "reset": "true" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 37: Firmware

    GET/system/updates REST API – settings PUT/system/updates/{updateId} 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 38: Time

    "enabled": true, "ntpServers": [ "string" "currentTime": "2021-01-15T09:25:31.294Z" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 39: Logs

    REST API – queries REST API logs GET/system/logs 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 40: Network Settings

    /networking/{}..7.3.2 Segments 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 41 WAN segment. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 42 Check with the responsible network operator (DHCP client, DHCP server or manual IP). 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 43 "subnet": "string", "dhcp": true, "gateway": "string" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 44: Lan

    "type": "bridge", "enabled": true, "state": "connected" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 45: Wlan

    Highlight the network in the list and click Connect. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 46 Confirm WLAN access point with Apply. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 47 "active": true, "interval": 0, "duration": 0 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 48: Modem

    In the Details section, click Connect. Activating connection 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 49 "dialString": "string" POST/networking/modem/{modem}/sms/messages "phoneNumber": "string", "content": "string" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 50: Dns

    PUT/networking/dns "domainName": "string", "domainNameServers": [ "string" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 51: Tools

    PUT/tools/nslookup "host": "string PUT/tools/sensors "host": "string 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 52: Security Settings

    • Allows uploading of security certificates for HTTPS connections or root certificates. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 53 "content": "string" POST/security/keys/device "name": "string", "content": "string" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 54: Logs

    REST API – queries REST API logs GET/security/log 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 55: Help

    REST API – queries REST API licenses GET/system/licenses 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 56: User Management In Device Manager

    ▸ Enter login name and password. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 57: Assigning User Role

    • device manager: Access to the Device Manager. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 58: Editing User

    Click on the delete icon in the user administration toolbar. The user will be removed from the user management. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 59: Use Rest Api Interface For Device Manager

    Access to the device data in Swagger requires a corresponding login as administrator. ▸ In Swagger, click Authorize. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 60: Generating Request In Swagger

    Under Parameters, click on Try it out. The Request body area is activated for editing. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 61 • The response is output in the JSON structure. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 62: Configuring The Connection Settings

    Live display of the TDC-E. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 63 Saves the current site configuration onto a data card. Tab. 5: Live display icons 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 64: Authenticating Access To Interface Parameters

    NOTE The configuration is not stopped. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 65 If the query is confirmed, the login window for changing the authorization is displayed. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 66 Then click on the Start current site configuration icon. The start progress bar visualizes the progress. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 67: Data Collection Interfaces

    MQTT subscription directory tdce/accelerometer/state Results "PreviousState":"Opened", "NewState":"Closed" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 68: Analog Inputs

    8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 69 MQTT subscription directory tdce/analog-inputs/value Results "AinName":"AIN_A", "PreviousValue":0.045, "NewValue":23.862 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 70: Can Interface

    Results "Id": 128, "Data": [1,2,3] 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 71 "CanBusName":"Can B", "Id":128, "Data":[3,4,5,6], "IsErrorFrame":false, "IsExtendedFrameFormat":false, "IsRemoteTransmissionRequest":false 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 72: Digital Inputs And Outputs

    MQTT subscription directory tdce/dio/direction Results "Name":"DIO_A", "Direction":"Output" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 73 "Direction":"Output", "AvailableDirections":["Input","Output"] "DioName":"DIO_B", "Value":1, "Direction":"Output", "AvailableDirections":["Input","Output"] 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 74: Gps

    "SpeedMph":0.0, "SpeedKmh":0.0, "Course":null, "Fix":0,"NumberOfSatellites":0, "GpsFixAvailable":false, "Hdop":0.0 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 75: Led Management

    Results "Id":"Yellow", "State":"On" "Id":"Red", "State":"On" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 76: Position Sensor

    Activate the position sensor via the Enabled checkbox. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 77 MQTT subscription directory tdce/magnetometer/state Results "PreviousState":"Opened", "NewState":"Closed" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 78: Onewire

    WebSocket server URL ws://192.168.0.100:31768/ws/tdce/onewire/state MQTT subscription directory tdce/onewire/state 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 79: Serial Interfaces

    MQTT publish directory tdce/rs4xx/in Results dGVzdA== 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 80 MQTT subscription directory tdce/rs4xx/state Results "PreviousState":"Closed", "NewState":"Open" 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 81: Ssi

    Websocket server URL ws://192.168.0.100:31768/ws/tdce/ssi/state MQTT subscription directory tdce/ssi/state 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 82: Interfaces For Data Transmission

    Port used to connect to the WebSocket server. Port 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 83: Configuration Of The Mqtt Interface

    User name and password for logging in to the MQTT message MqttUsernamt broker. MqttPassword 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 84 NOTE Via the File tab, the Rules file can be downloaded and edited in the editor. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 85: Saving The Configuration

    The right-hand side of the window shows an excerpt of each logged entry. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 86 NOTE Reset the level of detail. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 87: User Management In The Interface Manager

    Select Setup  User Management from the menu bar. Fig. 23: User administration 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 88: Creating Users

    Finish with Save. The list of standard users is extended to include the newly created user. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 89: Changing User Password

    Select Setup  User Management from the menu bar. Fig. 26: Changing password 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 90: Docker Container Management

    • The home page of the configuration interface is displayed. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 91: Portainer User Interface

    • Among other things, the number of installed containers and loaded images can be seen here. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 92: Implementing Application

    ▸ Click on Create the volume. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 93 Then click on Deploy the stack. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 94 Node-RED is now available via port 1880. Result 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 95: User Management In The Portainer

    To do this, click on my account. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 96: Maintenance And Repair

    Start Portainer and reinstall customer applications (9.2 Implementing application). 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 97: Technical Data

    Europe, Middle East, Africa, APAC excluding Japan 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 98 100 Ω typical for current mode. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 99 43222605 Tab. 8: TDC-E data sheet 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 100: Internal Sensors

    ± 0.5 °C from 20 °C to 100 °C Tab. 12: Thermometer accuracy 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 101: Dimensional Drawings

    Dimensional drawings Fig. 27: Dimensional drawings 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 102: Tdc-E Pin Assignments

    Analog input – Channel F Tab. 14: PWR+AIN/DIO cable 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 103 Y and Z pins. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...

  • Page 104: Disposal

    The following assemblies may contain substances that need to be disposed of separately: • Electronics: Capacitors, accumulators, batteries. 8027311 / V1-0/2022-04|SICK O P E R A T I N G I N S T R U C T I O N S | TDC-E (Telematic Data Collector) Subject to change without notice...
  • Page 105 Phone +36 1 371 2680 Phone +386 591 78849 E-Mail ertekesites@sick.hu E-Mail office@sick.si India South Africa Phone +91-22-6119 8900 Phone +27 (0)11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
