O P E R A T I N G I N S T R U C T I O N

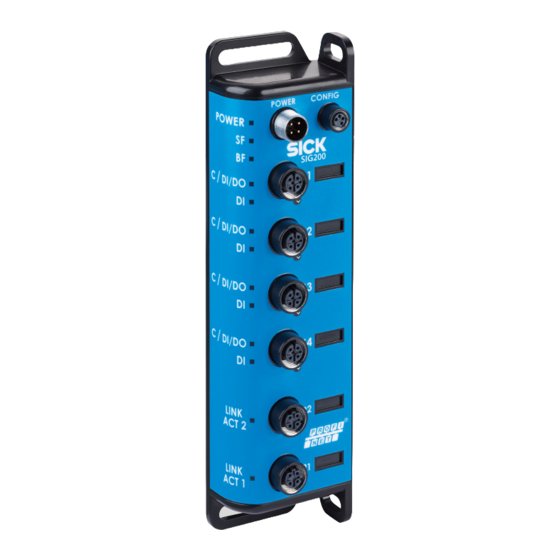

Sensor Integration Gateway - SIG200
PROFINET
Integration Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIG200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK SIG200

Summary of Contents for SICK SIG200

  • Page 1 O P E R A T I N G I N S T R U C T I O N Sensor Integration Gateway - SIG200 PROFINET Integration Products...
  • Page 2 This document is an original document of SICK AG. E497722 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Technical data..................98 12.1 General technical data................8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 4: Safety Information

    Notes on UL approval UL Environmental Rating: Enclosure type 1 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 5: Correct Use

    SICK AG shall become void. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 6: Product Description

    Ethernet Port P1 DI: LED for pin 2 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 7 Pin 4 - no IO-Link com‐ munication active 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 8: Transport And Storage

    ■ components and packaging on a regular basis. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 9: Mounting

    There are no screws inlcuded in the scope of delivery. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 10: Electrical Installation

    = 4 A O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 11 Digital Output or IO-Link n. c. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 12: Sig200 Configuration

    Drag & Drop into the topology or network view. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 13 Within SIG200 the slots are struc‐ tured in the following way: 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 14 The communication parameters of the IO-Link Master are displayed by double-clicking on SIG200 in the “Device overview” window. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 15 Click with the right mouse button on the selected module and click afterwards on “assign device name”. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 16 SIG200. Figure 7: Device names O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 17 The I/O addresses can be selected and changed by selecting the IO-Link modules. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 18 Link Master has to be connected to a suitable programmable logic controller (PLC). O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 19 The PROFINET slots have the following functions: 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 20 Function Various Logic Editor data representation O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 21 IO-Link Device Process Data (Slot 2, subslots 2…5) 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 22 8 byte IO-Link Process Data Out … O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 23 Pin 4 of Port x is high (SIO mode, Digital Input) 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 24 For the Logic Editor (Slot 1, subslot 2) the following process data submodules are avail‐ able: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 25 16 byte Logic Editor data output … 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 26 128 byte Logic Editor data output … O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 27 Expected Device ID Port cycle time 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 28 Input data length Output data length O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 29 Output data length 45827 Output data (0xB30 … 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 30 Function “Expected Vendor ID” (see "Expected Vendor ID", page O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 31 SIG200 offers several functions related to the IO-Link Master function. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 32 Global diagnostics allows you to define if any diagnostic messages from SIG200 are transmitted to the PLC. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 33 Vendor ID is only checked for Inspection Level “1”…”4”. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 34 Input data length allows you to read out the current input data length (from a supplied IODD or determined during IO-Link Device start-up). O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 35 Index 0xB200/0xB201/0xB202/0xB203, Byte 7: RevisionID Encoding Version V1.0 Version V1.1 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 36 (1 byte for the number of entries and 3 bytes for each entry). O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200...
  • Page 37 IO-Link Device on this port as well as all the profile identification numbers. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 38 Input Data Source invalid Input Data Source valid O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 39: Operation Via Webserver

    The following web browser software is supported: 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 40: Operation Via Sopas Et (Usb/Ethernet)

    SOPAS ET overview and standard functions on each page SIG200 pages have the following common layout: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 41 Now you can change the device configuration 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 42 The process data button provides the process data of the connected IO-Link devices. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 43 IP Address will be set to 0.0.0.0 according to the specification. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 44 Each notifica‐ tion can be acknowledged by clicking on the entry. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 45 Figure 13: Status page 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 46 IODD as an XML file. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 47 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 48 IODD to be removed and click on DELETE. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 49 IO-Link device with port class A from any manufacturer. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 50 The following figure shows the view if no IODD file is supplied; default IO-Link parame‐ ters are visualized: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 51 SIG200 it can be downloaded to the attached IO-Link device. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 52 Some logic blocks require at least two input signals. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 53 On the settings page, the language of the user interface can be selected (German or English). 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 54: Configuration Via Rest Api

    JSON format. JSON, O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200...
  • Page 55 The exact format of variables and parameters are described inside the chapter Data Types. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 56 HTTP Response. "header": O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 57 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 58 An Array with a length of 0 will be transmitted as an empty Array: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200...
  • Page 59 "DeviceIdent": { "Name": "SIG200", "Version": "1.0.0.0A" 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 60 "message": "Ok" "data": { "OrderNumber": "1234567" O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 61 "message": "Ok" "data": { "DailyOpHours": 53.687633514 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 62 "message": "Ok" "data": { "EtherIPGateAd‐ dress": [ O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 63 (write) "data": { "Port1Pin4Config‐ uration": 2 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 64 8 = 120ms POST (write) "data": { "Port1CycleTime": O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 65 "Pin2Value": false, "ConnectedDe‐ vice": "PAC50- BCD" 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 66 CBCAAABAk‐ MAAAQAAAACRA AABAAAAMhRAA AEAAAQAFI‐ AAAQBAAAAVQAA AQA=" O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 67 “Value” defines the value) 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 68 The following table shows the access functions on REST in “Raw access”: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 69 DataOut: byte array of process data 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 70 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 71 IODD 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 72 3, 3 = port 4 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 73: Device Functions

    46 page", page 46 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 74 59 page 49 api/crown/ac/Trigger‐ DataStorage O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 75: Data Storage

    IO-Link device. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 76: Logic Editor

    Removing IODDs of devices which has been connected in the Logic Editor could lead to incompatibilities. This is indicated by the following notification: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 77 EDIT in the upper right corner. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 78 Example: O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 79 The input and output blocks can be moved to the workspace to achieve a better routing and overview. Figure 27: Connections 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 80 • Pay attention to inputs and outputs (Integer/Boolean). O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 81 Use your mouse to get more information about Logic or DebounceValue. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 82 TRANSFER AND EXECUTE FLOW to also delete the logic from the actual device. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...
  • Page 83 SIG200. This input will be visualized with "Rest In" on the logic editor page. Profinet: 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 84 Settings no settings available O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 85 (16 bit). 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 86 Selection of the one's or two's complement (Default Two's Complement) O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 87 (false means 0). Settings No settings available 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 88 If Fourth half byte selected send bits marked with x xxxx|----|----|---- O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 89 The falling edge is configured with the OffDelay setting. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 90 Settings No settings available O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 91 For more information see truth table Settings No settings available 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 92 For more information see truth table Settings No settings available O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 93 2,345). In case, the calculated result would be a decimal number, the logic editor will round up or down. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 94: Firmware

    DEVICE FUNCTIONS Firmware O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...

  • Page 95: Troubleshooting

    Pin 4 - no IO-Link communication active 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 96: Disassembly And Disposal

    This symbol on the product, its package or in this document, indicates that a product is subject to these regulations. O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK...

  • Page 97: Maintenance

    Subject to change without notice. Specified product properties and technical data are not written guarantees. 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...

  • Page 98: Technical Data

    Storage temperature -40 °C ... +75°C O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 99 80 (HTTP), 2111/2113/2122 (SOPAS) Open UDP ports 1900 (UPNP) 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 100 Short-circuit protection in accordance with VDE 0160 O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 8017853/2019-06-06 | SICK Subject to change without notice...
  • Page 101 TECHNICAL DATA 8017853/2019-06-06 | SICK O P E R A T I N G I N S T R U C T I O N | Sensor Integration Gateway - SIG200 Subject to change without notice...
  • Page 102 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
