ZiLOG Z80 User Manual page 24

< %27
7UGT U /CPWCN

,QVWUXFWLRQ 5HJLVWHU DQG &38 &RQWURO
3,1 '(6&5,37,21
2YHUYLHZ
80
•

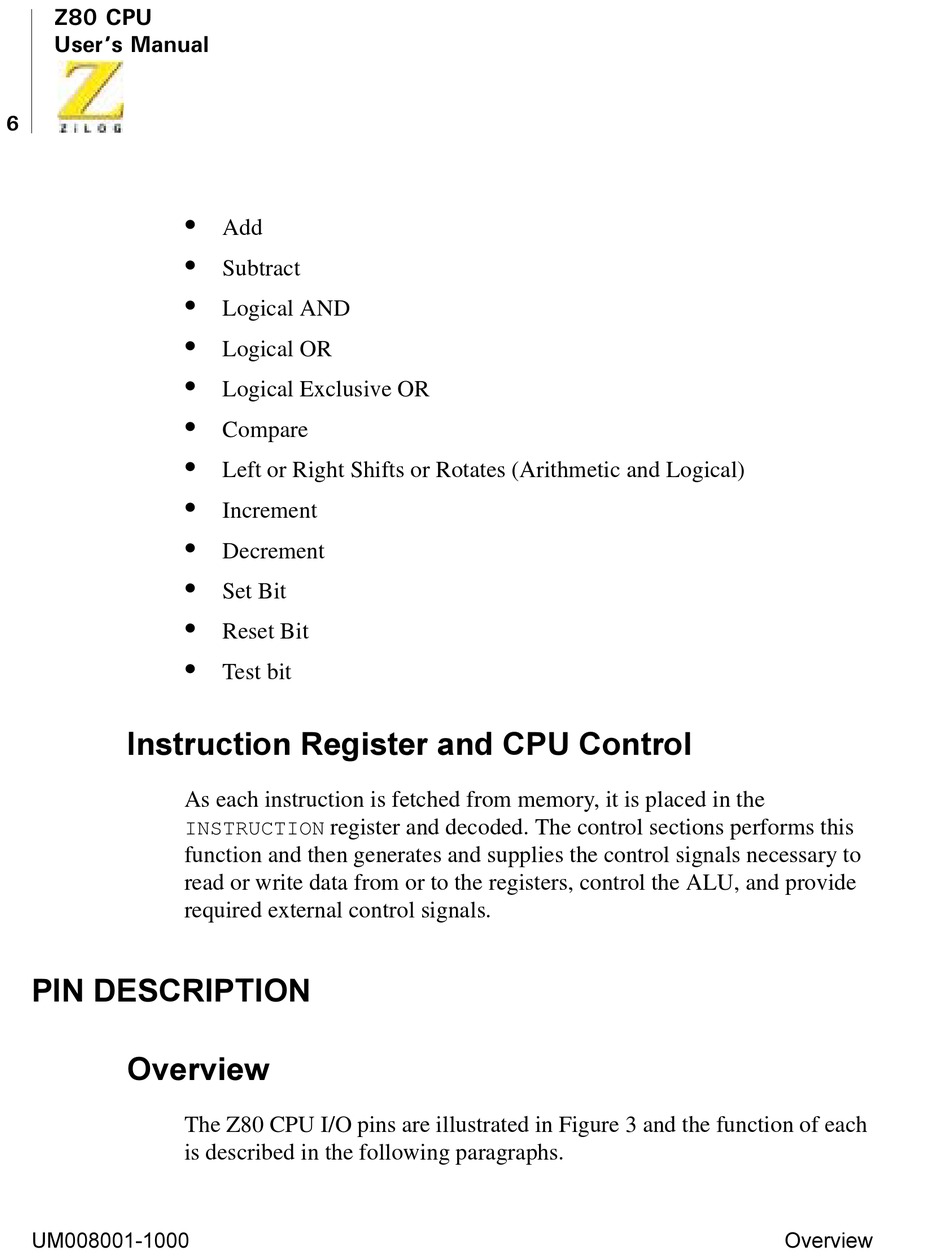

Add
•
Subtract
•
Logical AND
•
Logical OR
•
Logical Exclusive OR
•
Compare
•
Left or Right Shifts or Rotates (Arithmetic and Logical)
•
Increment
•
Decrement
•
Set Bit
•
Reset Bit
•
Test bit
As each instruction is fetched from memory, it is placed in the
register and decoded. The control sections performs this
INSTRUCTION
function and then generates and supplies the control signals necessary to
read or write data from or to the registers, control the ALU, and provide
required external control signals.
The Z80 CPU I/O pins are illustrated in Figure 3 and the function of each
is described in the following paragraphs.
2YHUYLHZ
