Specifications - Dahua IPC-KW10 User Manual

HD Cube Network Camera User's Manual

Support PIR human body movement detect. (This function is optional. For some
series product only.).

Support motion detect function.

Support dual-stream, ACF.

Support picture parameter setup such as electronic shutter and gain setup.

Assistant
Built-in microphone and speaker (This function is optional. For some series
product only.).
Function

Support video watermark function to avoid vicious video modification.

Log function. Support system resource information and running status real-time
display.

Backlight compensation: screen auto split to realize backlight compensation to
adjust the bright.

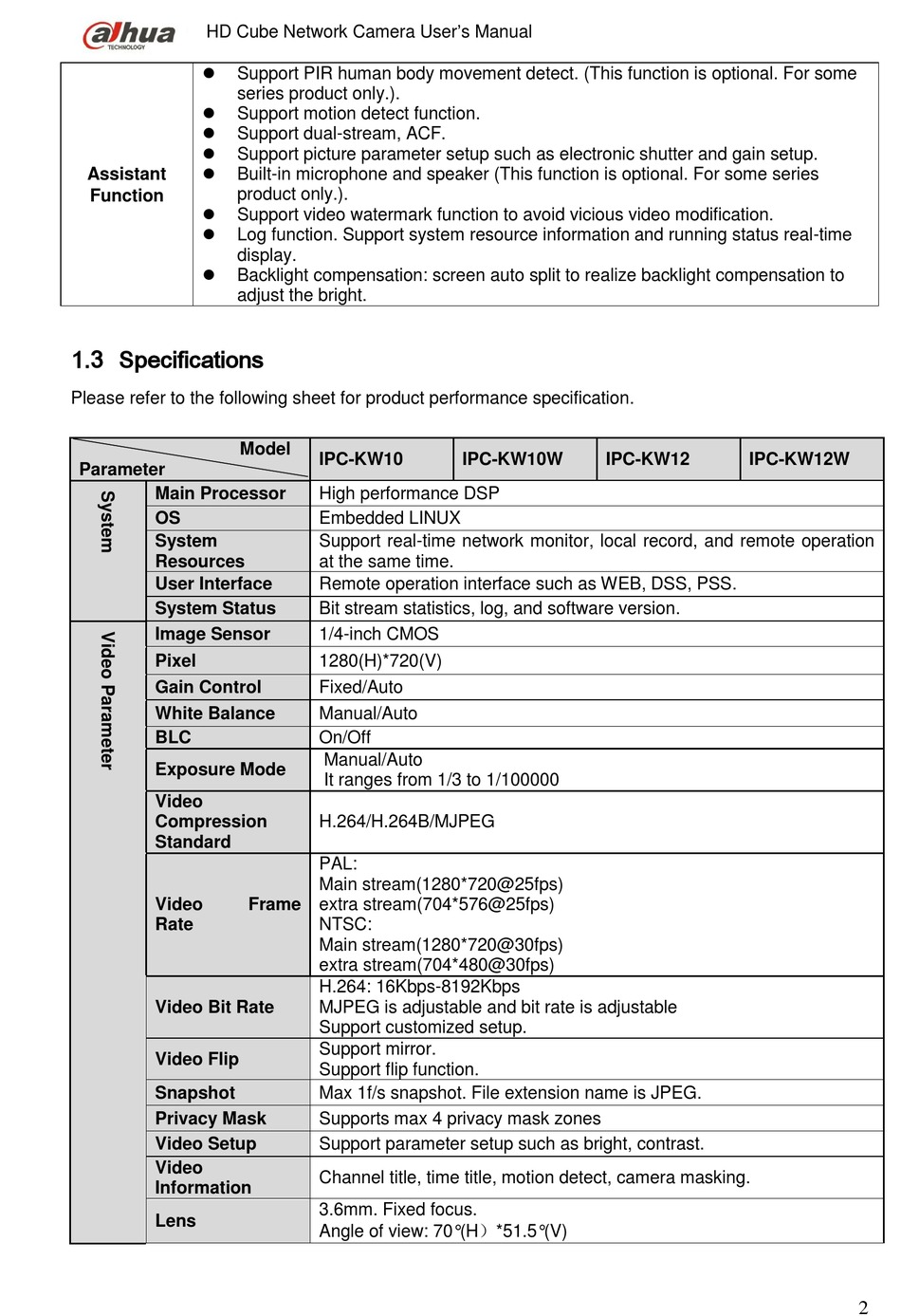

1.3 Specifications

Please refer to the following sheet for product performance specification.
Model
Parameter
Main Processor
OS
System
Resources
User Interface
System Status
Image Sensor
Pixel
Gain Control
White Balance
BLC
Exposure Mode
Video
Compression
Standard
Video
Rate
Video Bit Rate
Video Flip
Snapshot
Privacy Mask
Video Setup
Video
Information
Lens
IPC-KW10
High performance DSP
Embedded LINUX
Support real-time network monitor, local record, and remote operation
at the same time.
Remote operation interface such as WEB, DSS, PSS.
Bit stream statistics, log, and software version.
1/4-inch CMOS
1280(H)*720(V)
Fixed/Auto
Manual/Auto
On/Off
Manual/Auto
It ranges from 1/3 to 1/100000
H.264/H.264B/MJPEG
PAL:
Main stream(1280*720@25fps)
Frame extra stream(704*576@25fps)
NTSC:
Main stream(1280*720@30fps)
extra stream(704*480@30fps)
H.264: 16Kbps-8192Kbps
MJPEG is adjustable and bit rate is adjustable
Support customized setup.
Support mirror.
Support flip function.
Max 1f/s snapshot. File extension name is JPEG.
Supports max 4 privacy mask zones
Support parameter setup such as bright, contrast.
Channel title, time title, motion detect, camera masking.
3.6mm. Fixed focus.
Angle of view: 70° (H）*51.5° (V)
IPC-KW10W IPC-KW12 IPC-KW12W
2
