- Page 1 IPC-L26N WiFi Active Alarm Floodlight Camera Quick Installation Guide V1.0.2 Dahua Technology Co., Ltd...
-
Page 2: Foreword
General This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting for a Dahua Network Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. - Page 3 Please contact the customer service for the latest program and supplementary documentation. Video loss is inherent to all digital surveillance and recording devices; therefore Dahua cannot be held liable for any damage that results from missing video information. To minimize the occurrence of lost digital information, Dahua recommends multiple, redundant recording systems, and adoption of backup procedure for all data.
- Page 4 Legal Notices Copyright This user guide is ©2020, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered...
-
Page 5: Important Safeguards And Warnings
Important Safeguards and Warnings This chapter describes the contents covering proper handling of the device, hazard prevention, and prevention of property damage. Read these contents carefully before using the device, comply with them when using, and keep it well for future reference. Installation and Maintenance Professionals Requirements All installation and maintenance professionals must have adequate qualifications or ... - Page 6 have the same characteristics as the original parts. Unauthorized parts may cause fire, electrical shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized modifications or repairs. Perform safety checks after completion of service or repairs to the unit.
- Page 7 Contact the manufacturer or a qualified service representative to service the camera or to replace a component, including the desiccant. Dahua recommends the use of a thunder-proof device in concert with the unit. Do not touch the CCD or the CMOS optic sensor. Use a blower to clean dust or dirt on the ...
-
Page 8: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity Change Passwords and Use Strong Passwords The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. - Page 9 Change ONVIF Password Older IP camera firmware does not automatically change the ONVIF password when the system credentials are changed. Update the camera’s firmware to the latest revision or manually change the ONVIF password. Forward Only Ports You Need ...
- Page 10 Connect IP Cameras to the PoE Ports on the Back of an NVR Cameras connected to the PoE ports on the back of an NVR are isolated from the outside world and cannot be accessed directly. Isolate NVR and IP Camera Network ...
-
Page 11: Table Of Contents
Table of Contents Foreword ............................... I Important Safeguards and Warnings....................IV Cybersecurity Recommendations ....................VII Table of Contents ..........................X 1 Overview ............................1 Camera Components........................ 1 LED Indicators .......................... 2 Application Guidelines ......................2 2 Installing the Camera ........................3 Installation Tips ......................... 3 Unpacking .......................... -
Page 12: Overview

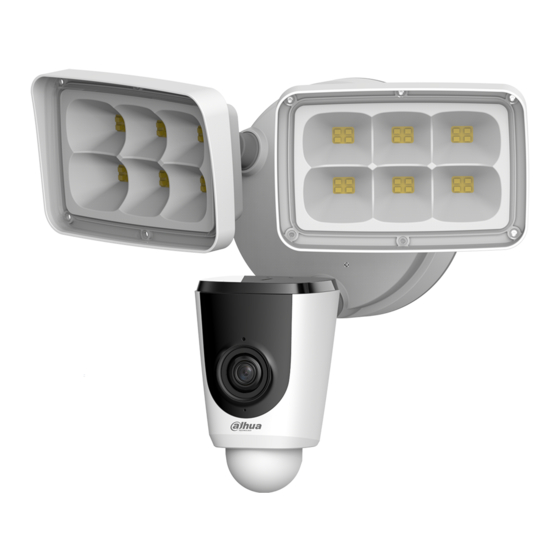

Overview The IPC-L26N WiFi Active Alarm Floodlight camera is a component of the Dahua WiFi camera series. The camera offers Passive IR motion detection and is capable of sounding a siren and turning on a spotlight when an intruder is detected. This device is compatible with Dahua NVRs and with the DMSS mobile application. -
Page 13: Led Indicators
LED Indicators LED Indicator Light Device Status Powered off. Rebooting after reset. Device malfunction. Try resetting the camera (see ‘Camera Steady Red Overview’ for details) and repeating the setup. Network connection failed. Try resetting the camera (see Flashing Red ‘Camera Overview’... -
Page 14: Installing The Camera
Installing the Camera The camera ships with all the components to mount the camera to a wall. Before installing the camera consider the following: Review the “Installation Tips” section to help you choose an ideal mounting location. Decide whether to run the cables through the wall or along the wall. ... -
Page 15: Parts List
Parts List Figure 2-1: IPC-L26N Package Contents Camera Assembly Refer to the illustration below to assist planning the installation location and method. Figure 2-2: IPC-L26N Mounting Assembly... -
Page 16: Inserting An Sd Card
Inserting an SD Card Twist and slide the cover on the top of the camera towards the back and then remove. Insert the SD card into the slot and gently push until it clicks into place. Twist and slide the cover back into place and ensure the cover is secure. Mounting the Camera to a Wall Determine if a junction box exists at the installation location. - Page 17 Connect the wires from the camera to the main wires using the supplied wire nuts: Connect the copper wire (ground) from the camera to the main ground wire. Connect the white wire (neutral) from the camera to the main neutral wire. ...
-
Page 18: Connecting To The Dmss App
Connecting to the DMSS App Install the free mobile app on your smart phone: Apple App Store: iDMSS Google Play Store: gDMSS Tap the iDMSS or the gDMSS icon to open the app. Note: Ensure your mobile device is connected to the same 2.4 GHz WiFi network that will be used with for the camera. - Page 19 Scan the QR code on the back of the video doorbell. If the QR code does not work, tap Manually enter SN and type the video doorbell’s serial number. Then click Next. Follow the directions on the Add Device screen and then click Next to continue. Tap Join then select the WiFi network for the video doorbell.
- Page 20 Type the password for the selected WiFi network, then click Next. Type a descriptive name for the video doorbell then tap the Save icon. Type a security password for the video doorbell to initialize the device, then click Next. The initialization process may take some time to complete.
-
Page 21: Troubleshooting
Ensure that you have enabled and configured white The warning light is not switching on automatically light deterrence. The camera siren cannot switch on automatically. You The siren is not switching on can control the camera siren manually using the Dahua automatically DMSS app. - Page 22 Dahua Technology USA 23 Hubble Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Support: 877-606-1590 Sales: sales.usa@dahuatech.com Support: support.usa@dahuatech.com © 2020 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice.
