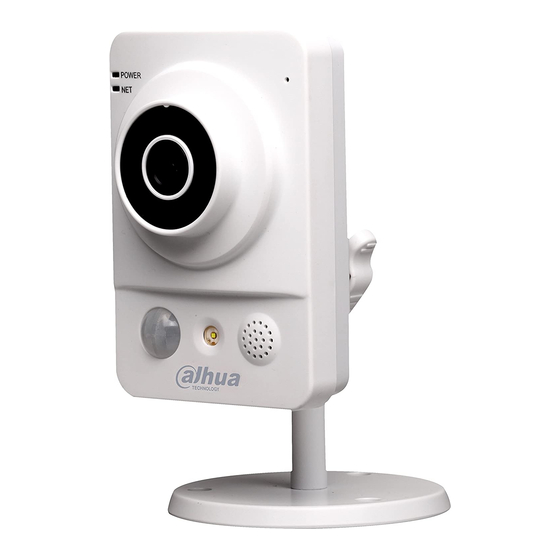

- Page 1 HD Cube Network Camera User’s Manual HD Cube Network Camera User’s Manual Version 1.1.0 Zhejiang Dahua Technology CO., LTD...
- Page 2 HD Cube Network Camera User’s Manual Welcome Thank you for purchasing our network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
HD Cube Network Camera User’s Manual Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. - Page 4 HD Cube Network Camera User’s Manual Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
HD Cube Network Camera User’s Manual Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Specifications ........................ 2 Framework ........................... 6 Device Components ..................... 6 Dimensions ........................8 Bidirectional talk......................8 2.3.1 Device-end to PC-end ..................8 2.3.2 PC-end to the Device-end .................. -
Page 6: General Introduction
HD Cube Network Camera User’s Manual 1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts video data collection, transmission together. It can connect to the network directly without any auxiliary device. -
Page 7: Specifications
Backlight compensation: screen auto split to realize backlight compensation to adjust the bright. 1.3 Specifications Please refer to the following sheet for product performance specification. Model IPC-KW10 IPC-KW10W IPC-KW12 IPC-KW12W Parameter Main Processor High performance DSP Embedded LINUX... - Page 8 HD Cube Network Camera User’s Manual Lens Interface M12. Lens is the default accessories Audio Bit Stream One-way Dual-way Audio Built-in microphone Built-in microphone and speaker Input/Output Audio Bit Rate 8/16kbps 16bit Audio Compression G.711A/G.711Mu/PCM Standard 396 (18*22) detection zones Motion Detect Activation event: video storage, image snapshot, log, email SMTP function and etc.
- Page 9 HD Cube Network Camera User’s Manual Model IPC-KW100W IPC-KW100A IPC-KW100 Parameter Main Processor High performance DSP Embedded LINUX System Support real-time network monitor, local record, and remote Resources operation at the same time. User Interface Remote operation interface such as WEB, DSS, PSS. System Status Bit stream statistics, log, and software version.
- Page 10 HD Cube Network Camera User’s Manual Record Priority Manual>Video detect>Schedule SD Card Storage Support Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet Wireless IEEE802.11a/b/g/n, Network built-in antenna. Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, Network Protocol RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UpnP, NTP, Bonjour, SNMP, QoS, 802.1x Remote Monitor,...
-
Page 11: Framework
HD Cube Network Camera User’s Manual 2 Framework 2.1 Device Components You can refer to the following figure for component information. See Figure 2-1 Figure 2-1 Component Please refer to the following sheet for detailed information. Port Name Indicator Connector Note ... - Page 12 HD Cube Network Camera User’s Manual Port Name Indicator Connector Note Passive IR motion detect port. It can detect the IR object movement (such as human body or other heating object). PIR sensor Note: Only certain series have this function. For lighting at night IR light Output audio signal.
-
Page 13: Dimensions
HD Cube Network Camera User’s Manual 2.2 Dimensions Please refer to the following figure for dimension information. The unit is mm. See Figure 2-2. Figure 2-2 Dimension 2.3 Bidirectional talk 2.3.1 Device-end to PC-end Device Connection Please connect the earphone to the audio output port in the PC. Login the Web and then click the Audio button to enable the bidirectional talk function. -
Page 14: Alarm
HD Cube Network Camera User’s Manual 2.4 Alarm The alarm interface is shown as in Figure 2-3. Please follow the steps listed below for local alarm input and output connection. 1) Connect the alarm input device to the alarm input port of the I/O cable. 2) Connect the alarm output device to the alarm output port of I/O cable. - Page 15 HD Cube Network Camera User’s Manual Alarm output: Alarm output is OC door, requiring increase of external pull-up resistor. Output signal is high and low levels. After pull-up resistor is increased, output signal is high level by default. When there is alarm output, output signal becomes low level. Figure 2-5 Alarm output...
-
Page 16: Device Installation
HD Cube Network Camera User’s Manual 3 Device Installation This series camera support two installation modes: wall mount and pendant mount. See Figure 3-1 and Figure 3-2. Important Please make sure the installation surface can min support the 3X weight of the camera and the bracket. - Page 17 HD Cube Network Camera User’s Manual Fix the device with screw in the accessories bag. Step 5 Connect the cable and then boot up the device. Step 6 Loosen the adjust knob for a little bit, adjust the camera to proper surveillance position according to your actual requirements.
-
Page 18: Quick Configuration Tool
HD Cube Network Camera User’s Manual 4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”... - Page 19 HD Cube Network Camera User’s Manual If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface, please select a device IP address and then double click it to open the login interface.
-
Page 20: Web Operation
HD Cube Network Camera User’s Manual 5 Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ... - Page 21 HD Cube Network Camera User’s Manual Figure 5- 2 Web login After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. See Figure 5- 3. Figure 5- 3 Web monitoring window...
-
Page 22: Faq
HD Cube Network Camera User’s Manual 6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device. factory default setup. SD card hot swap Before draw out SD card, please stop record or snapshot first and then wait for at least 15 seconds to remove the SD card. - Page 23 HD Cube Network Camera User’s Manual The general power adapter can work ranging from 0℃ to 40 ℃. The Power adaptor device may result in unstable power supply when the temperature exceeds the working temperature. Please replace an industry-level power adapter if you are using in the harsh environments. ...
-
Page 24: Appendix Toxic Or Hazardous Materials Or Elements
If there is any uncertainty or controversy, please refer to the final explanation of us. Please visit our website for more information. Dahua Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com...
