Quick Configuration Tool; Overview; Operation - Dahua IPC-KW10 User Manual

HD Cube Network Camera User's Manual

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

Double click the "ConfigTools.exe" icon; you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.

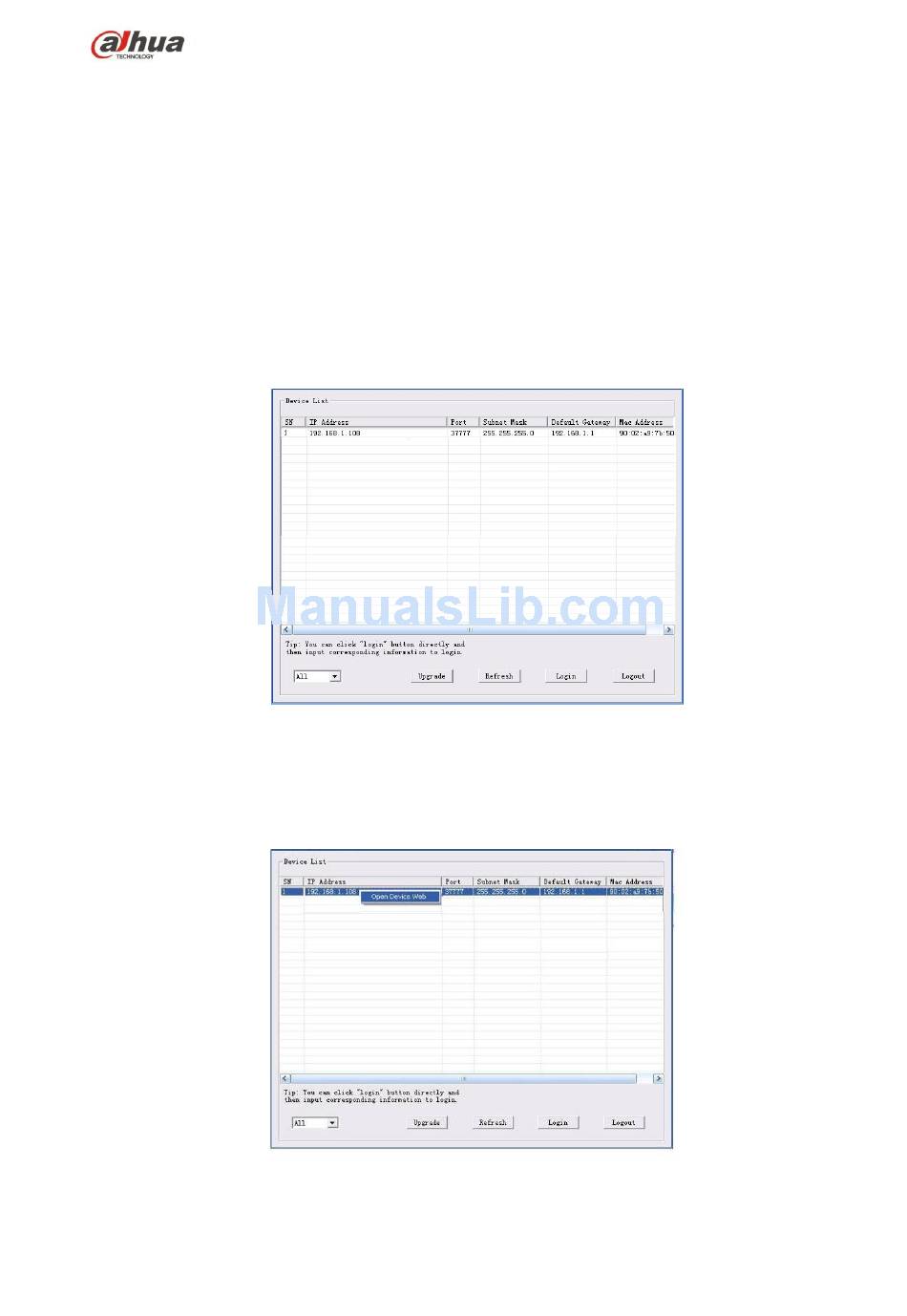

Figure 4-1 Search interface
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Select the "Open Device Web" item; you can go to the corresponding web login interface.
Figure 4-2 Search interface 2
13
