Gardenline Hedge Trimmer User Manual

Gardenline Hedge Trimmer User Manual

26cc 2-stroke petrol hedge trimmer

Advertisement

26cc 2-Stroke Petrol Hedge Trimmer
After Sales Support
Now you have purchased a Gardenline
product you can rest assured in the
knowledge that as well as your
3 year parts and labour guarantee
you have the added peace of
mind of dedicated helplines
and web support
User Guide
®
AFTER SALES SUPPORT
1800 909 909
AUS
MODEL: HTKS26 PRODUCT CODE: 43671
Read all safety warnings and all instructions
2
www.powertoolsupport.com
11/2015
thoroughly before operating this product.
YEAR WARRANTY
IM ed7; 9/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hedge Trimmer and is the answer not in the manual?

Questions and answers

Dinko kavaz
July 30, 2025

Lokking to buy the trigger lockout lever

User image 688a244a9cc45
Dinko kavaz
July 30, 2025

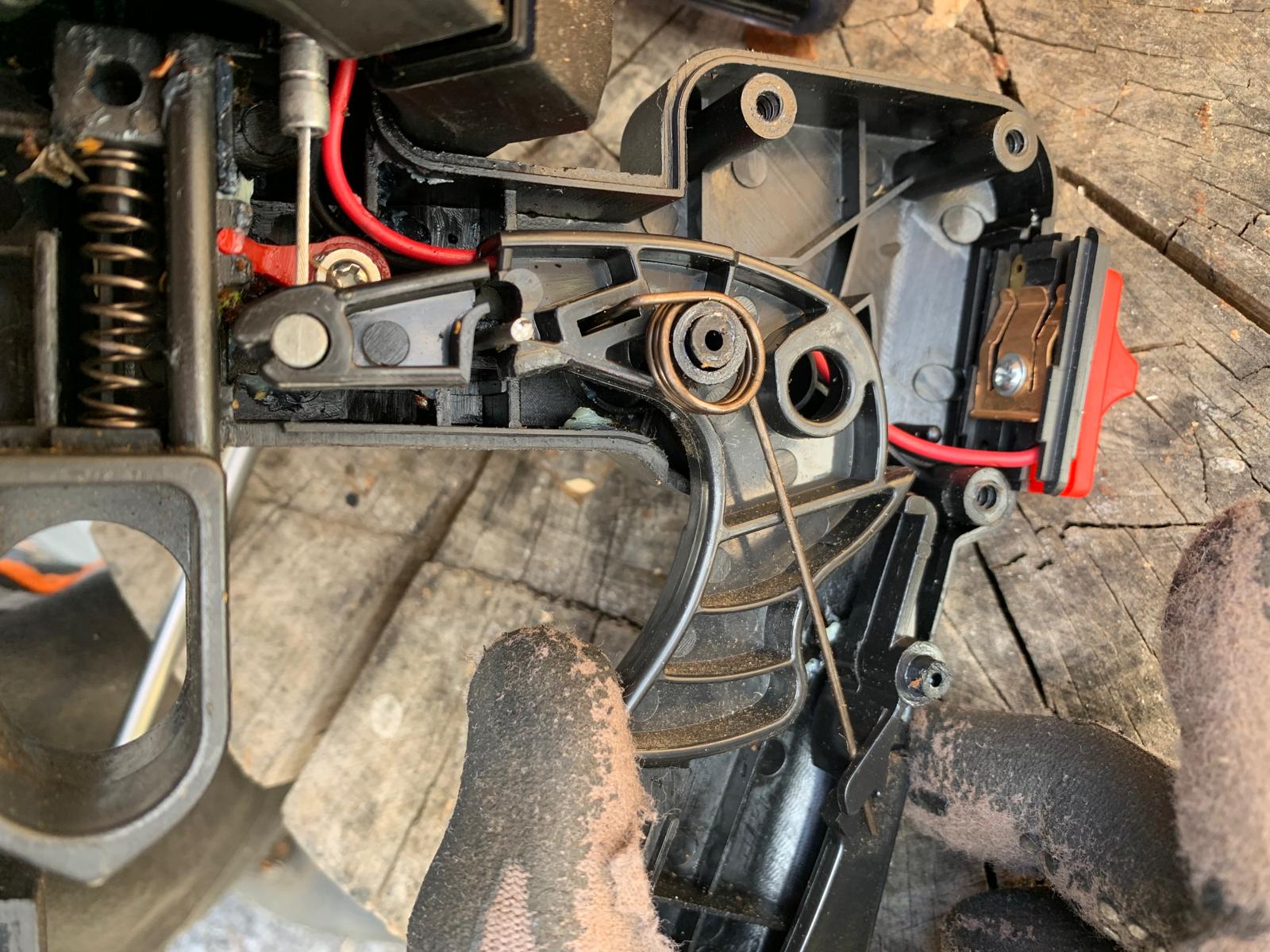

I am looking to replace the trigger lockout lever, which is broken on my Gardenline Hedge trimmer. I attach photos of the broken plastic part

User image 688a241365413
dinko kavaz
July 30, 2025

I need to replace / buy a broken part. On my petrol gardenline hedge trimmer. I need the" trigger lockout lever". I can not attach photograph from this device will try from my phone. Regards.

Summary of Contents for Gardenline Hedge Trimmer

  • Page 1 26cc 2-Stroke Petrol Hedge Trimmer User Guide After Sales Support Now you have purchased a Gardenline ® product you can rest assured in the knowledge that as well as your 3 year parts and labour guarantee you have the added peace of...
  • Page 2: Table Of Contents

    Stopping the Engine Operation of the Throttle Trigger Starting a Warm Engine The Operation of the Rotary Handle Use of the Petrol Hedge Trimmer Using the Hedge Trimmer with the Trimmer on its side Trimming instructions Blade Maintenance Blade Lubrication Greasing...
  • Page 3: Introduction

    First time users or inexperienced operators pay particular attention to the operation of the Hedge Trimmer, including details of starting and stopping and correct use of the Hedge Trimmer on pages 14 to 19, as well as the maintenance instructions on pages 20-23.
  • Page 4: Description Of Symbols

    General Information & Safety Instructions Description of symbols The rating plate on your tool, and instructions within this manual may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compatibility. Wear hearing protection.
  • Page 5: Specifications

    General Information & Safety Instructions Specifications Engine: 26cc, 2 stroke Idling Engine speed: 3000min Full Engine speed: 9000min Blade cutting length: 510mm Bar length: 633mm Maximum Cutting capacity Ø : 24mm Fuel tank capacity: 500ml Fuel type: Unleaded petrol Fuel mixture: Unleaded petrol: 2-Stroke oil (40:1) Spark Plug: Torch L7RTC...
  • Page 6: Safety Instructions

    General Information & Safety Instructions Safety instructions WARNING Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool, battery-operated (cordless) power tool, or petrol operated power tool.
  • Page 7 General Information & Safety Instructions • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 8: Additional Safety Rules For Petrol Hedge Trimmers

    Prevent the spilling of fuel as this may also ignite with the hot motor. Never refuel whilst the engine is running. • Be careful where you store the hedge trimmer. Store the hedge trimmer in a dry area away from flammable liquids.
  • Page 9 Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blade. • Prior to cutting with the hedge trimmer, always check the area to be cut for hidden objects. Be observant for fencing wire, Garden stakes, or electrical cables.
  • Page 10: Parts List

    Parts List 1. Blades 9. Air filter cover 17. Primer bulb 2. Blunt plate 10. On/Off switch 18.Choke lever (red) 3. Protective guard 11. Throttle trigger 19. Rotating handle lock lever 4. Silencer cover 12. Fuel tank 20. Rotating handle 5.
  • Page 11: Getting Started

    1 x Quick Start Guide Assembly This hedge trimmer does not require any pre-assembly before use, however the hedge trimmer is required to be filled with 500ml of Unleaded petrol: 2-Stroke oil (40:1) before operation. Fig. A Removing / Replacing the cover 1.
  • Page 12: Fuelling

    Do not throw it in the trash or pour it into the earth. WARNING. If fuel is spilt during the fueling process, ensure to move the hedge trimmer away from the spillage area and do not start the hedge trimmer near this area. AFTER SALES SUPPORT 1800 909 909 www.powertoolsupport.com...
  • Page 13: Filling The Tank

    It is normal for smoke to be emitted from a new engine during and after first use. 1. Place the hedge trimmer upright on the ground or on a sturdy bench and wipe any debris from around the fuel cap.
  • Page 14: Starting A Cold Engine

    (Fig 3). 5. Set the throttle trigger (11) to the “START POSITION”. Grip the rear handle (15) of the hedge trimmer and at the Fig. 3 same time press down the safety lever (14). Squeeze FULLY the throttle Trigger (11) and hold in the full on position.
  • Page 15: Operating Instructions

    9. After the motor is operating and partly warmed after point 8 above, grip the rear handle (15) of the hedge trimmer and at the same time press down the safety lever (14). Squeeze slightly the throttle trigger (11) and then release the trigger.
  • Page 16: Stopping The Engine

    During the increase in motor speed, the blades (1) will engage. 3. To slow the hedge trimmer, release the throttle trigger (11) to obtain the desired speed. To return the motor to the idle speed and completely disengage the blades (1), release the throttle trigger (11) completely.
  • Page 17: Use Of The Petrol Hedge Trimmer

    (19) snaps back into position at the +- 90 Degree point. Note: The hedge trimmer can only be used in the 3 preset positions of the rear handle. Use of the Petrol Hedge Trimmer • Use safety equipment. Always wear eye protection. Safety equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
  • Page 18: Using The Hedge Trimmer With The Trimmer On Its Side

    Using the Hedge Trimmer with the Trimmer on its side. Often, when either of the rotating handle (20) positions, i.e 90° to the left or the right is selected, the hedge trimmer will be orientated with the blade (1) in a vertical position. Please note the following tips.
  • Page 19: Trimming Instructions

    Wear safety goggles, ear muffs, non-skid footwear and rubber gloves when trimming. Hold the hedge trimmer firmly in both hands and turn the hedge trimmer ON. Always hold the hedge trimmer, as shown in the illustrations, with one hand on the rear handle and one hand on the front handle (7).
  • Page 20: Blade Maintenance

    2. If you drop the hedge trimmer, carefully inspect it for damage. If the blades/s (1) is bent, the housing cracked, or handles broken or if you see any other condition that may affect the hedge trimmer’s operation contact an authorised service centre for...
  • Page 21: Air Filter

    Maintenance Air Filter Caution. NEVER operate this unit without the air filter as dust and dirt will be sucked into the engine and damage it. Accumulated dust in the air filter will reduce engine efficiency, increase fuel consumption and allow abrasive particles to pass into the engine.
  • Page 22: Storage And Maintenance After Use

    1. Perform all the general maintenance recommended in the Maintenance Section of your Instruction Manual. 2. Clean the outside surfaces of the hedge trimmer. 3. Check the fuel system for any leaks. 4. Drain the fuel from the fuel tank (12). Note. Do not discard unwanted fuel with household waste.
  • Page 23: Removing A Unit From Storage

    Storage Removing a unit from storage 1. Remove spark plug (6). 2. Pull the recoil starter (8) briskly to clear excess oil from the combustion chamber. 3. Clean and gap the spark plug (6) or install a new spark plug with the proper gap.
  • Page 24: Troubleshooting

    • Low fuel level trimmer on • Fuel tank (12) needs to be close to a full its side. tank when running the hedge trimmer on its side. Fill fuel tank (12) with fuel. AFTER SALES SUPPORT 1800 909 909 www.powertoolsupport.com...
  • Page 25 This is a blank page AFTER SALES SUPPORT 1800 909 909 www.powertoolsupport.com email: help@powertoolsupport.com 11/2015 43671...
  • Page 26 This is a blank page AFTER SALES SUPPORT 1800 909 909 www.powertoolsupport.com email: help@powertoolsupport.com 11/2015 43671...
  • Page 27 This is a blank page AFTER SALES SUPPORT 1800 909 909 www.powertoolsupport.com email: help@powertoolsupport.com 11/2015 43671...
  • Page 28 AFTER SALES SUPPORT www.powertoolsupport.com 1800 909 909 YEAR WARRANTY MODEL: HTKS26 PRODUCT CODE: 43671 11/2015...
