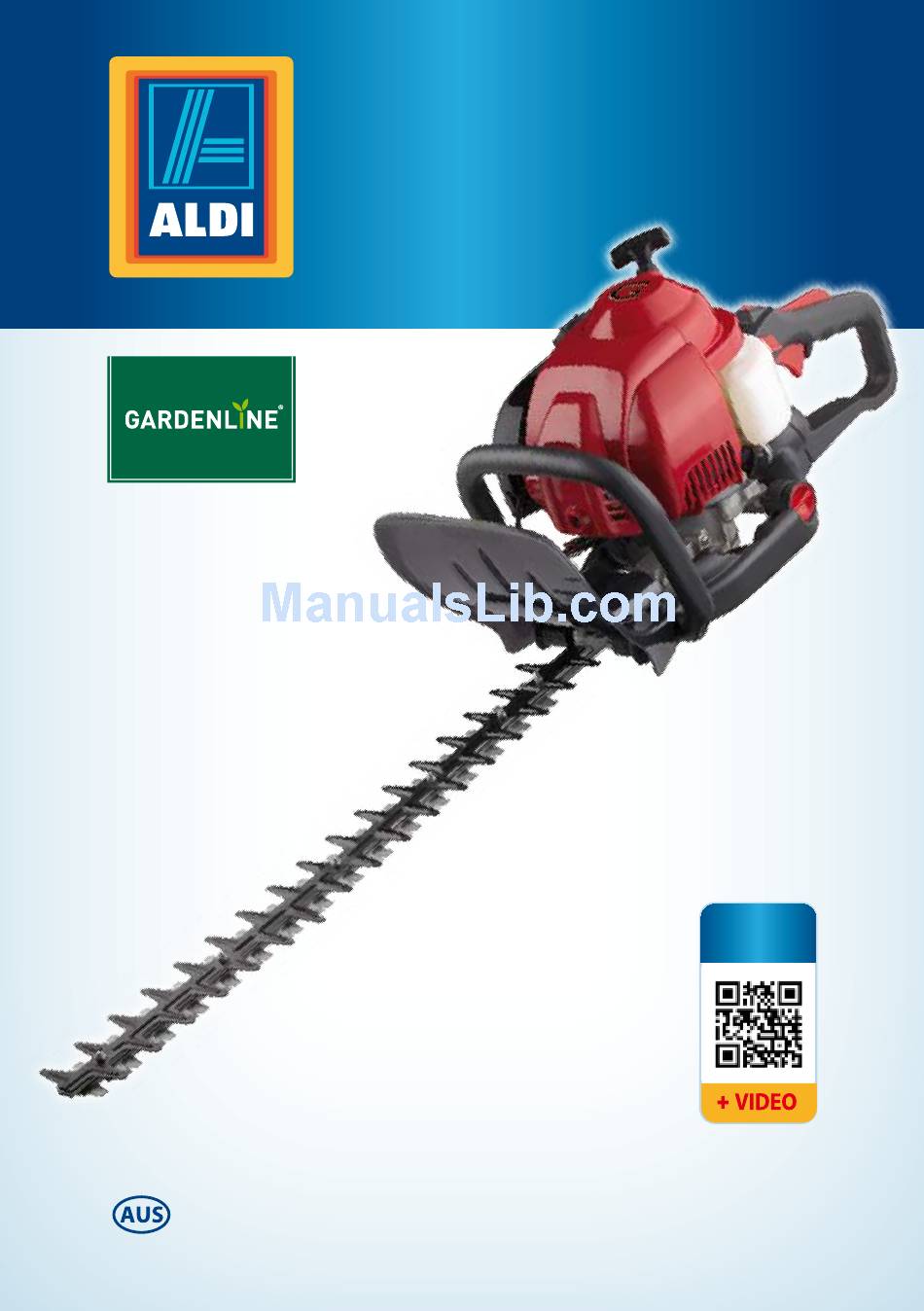

- Page 1 User Manual 52742 25CC 4 STROKE PETROL HEDGE TRIMMER Product Info www.powertoolsupport.com Read all safety warnings and all instructions thoroughly before operating this product. Ensure you keep your manual in a safe place for future reference. IM ed 9 8/2016...
- Page 2 QR codes take you where you want to go quicky and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales service, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
-
Page 3: Table Of Contents
Contents Pack contents /parts Description of Symbols General safety instructions Additional safety rules for Petrol Hedge Trimmers Parts List Assembly Removing / Replacing the Blade Covers Adding and Checking the oil Fuelling Starting the Hedge Trimmer - Starting A Cold Engine Warm Start A Flooded engine Stopping the Engine / Emergency Stopping Procedure... -
Page 4: Pack Contents /Parts
25cc 4 Stroke Petrol Hedge Trimmer Pack contents / parts Congratulations on the purchase of your Gardenline® 25cc 4 Stroke Petrol Hedge Trimmer. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified. -
Page 5: Description Of Symbols
Description of symbols The rating plate on your hedge trimmer may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compatibility. Wear hearing protection. Wear eye protection. Wear headwear protection. Wear safety footwear. -
Page 6: Safety Instructions
General safety warnings Safety instructions WARNING Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool, battery-operated (cordless) power tool, or petrol operated power tool. - Page 7 Personal safety • Stay alert, watch what you are doing and use common sense when • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
-
Page 8: Additional Safety Rules For Petrol Hedge Trimmers
Additional safety rules for Petrol Hedge Trimmers Power tools are dangerous in the hands of untrained users. • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. - Page 9 • Take care not to spill fuel. When refuelling the hedge trimmer ensure that the motor has been switched off. Prevent the spilling of fuel as this may also ignite with the hot motor. Never refuel whilst the engine is running.
- Page 10 A moment of inattention while operating the hedge trimmer may result in serious personal injury. • Carry the hedge trimmer by the handle with the cutter blade and motor stopped. When transporting or storing the hedge trimmer, always fit the cutter device covers.
- Page 11 25cc 4 Stroke Petrol Hedge Trimmer AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742...
-
Page 12: Parts List
(behind bottom of air filter cover) 21. Blade covers 22. Spark Plug Spanner / Screwdriver Combination 23. 4mm Hex Key 24. 5mm Hex Key AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) - Page 13 25cc 4 Stroke Petrol Hedge Trimmer AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742...
-
Page 14: Assembly
ENSURE the motor is not running when the oil level is being checked. On a new unit, the motor needs to be filled with 80mL of SAE 10W/30 engine oil. Do Not over fill. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) - Page 15 Full is just below the low thread entry (Fig E). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742...
-
Page 16: Fuelling
NOTE: The fuel tank capacity is 450mL. Be careful not to spill any mixture. If this happens, wipe the spill with a clean rag. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 17: Starting The Hedge Trimmer - Starting A Cold Engine
Do not use ethanol based fuels. Do NOT mix oil with fuel. Oil must be separately poured into the oil reservoir (17). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... - Page 18 NOTE. For cold starting this is an important step. 6. Check the ignition on/off switch (10) is in the downward ON position as indicated with an “I” (Fig H). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free)
- Page 19 Never allow the cord to snap back from the extended position. This could cause the cord to snag or fray and also damage the recoil starter (9) assembly. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742...
-
Page 20: Warm Start
When it is completely necessary to stop the engine immediately, press the “O” symbol on the on/off switch (10) to the OFF position until the engine stops. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 21: Normal Stopping Method
(11) (Fig Q). The further you squeeze the throttle trigger (11), the faster the engine will run. During the increase in engine speed, the blades (1) will engage. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 22: The Operation Of The Rear Rotating Handle
3 preset positions of the rear handle. DO NOT use the rotating handle if the handle has not fully engaged in the pre set location . AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 23: Use Of The Petrol Hedge Trimmer
• Always trim or cut at high engine speeds. Do not run the engine slowly at the start or during trimming operations. • Place yourself in a well-balanced position, stable on both feet. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... - Page 24 Disconnect the spark plug and inspect for damage or any loose parts. Also reference the trouble shooting chart or take it to an authorised service agent. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free)
-
Page 25: Using The Hedge Trimmer With The Trimmer On Its Side
(4) (Fig U). NEVER hold the hedge trimmer by the protective guard (3). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 26: Blade Maintenance
(1) is bent, the housing cracked, or handles broken or if you see any other condition that may affect the hedge trimmer’s operation contact an authorised service centre for repairs before using again. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 27: Blade Lubrication
Remove the air filter as often as necessary and maintain a clean condition of the filter and cylinder fins. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 28: Cleaning The Air Filter
NOTE: Spark plug gap = .025 in. (.635mm) (Fig Z). To gain access to the spark plug (8), the spark plug cover / front housing (7) needs to be moved. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 29: Servicing
• It is recommended once you first use your product to get it serviced after 15 hours of use. • From thereafter, service the product every 2 years. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 30: Fuel Filter
2. Clean the outside surfaces of the hedge trimmer. 3. Check the fuel system for any leaks. 4. Drain the fuel from the fuel tank (15). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 31: Removing A Unit From Storage
6. Fill the oil reservoir (17) with the required 80mL of SAE 10W/30 4 stroke oil BEFORE starting – refer to the section on Adding and Checking the oil for instructions. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 32: Warranty
Gardenline® Hedge Trimmer . Take special care to heed the Cautions and Warnings. Your Gardenline® Hedge Trimmer has many features that will make your job faster and easier. Safety, performance, and dependability have been given top priority in the development of this Hedge Trimmer, making it easy to maintain and operate. -
Page 33: What Your 3 Year Warranty Means
1800 909 909 1. 52742-RS 3. Replacement Spark Plug – Recoil Starter assembly - CDK CMR6A 2. 51773 - ALDI 4 Stroke Full synthetic Oil AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... -
Page 34: Troubleshooting
• Top up the oil if it is low. reach full speed For all other issues, please contact Customer Service on 1800 909 909 or email help@powertoolsupport.com AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free) -
Page 35: Technical Specifications
108cm x 23cm x 25cm +/- tolerances (L x W x H) This product complies with: Safety: EN ISO 10517:2009/A1:2013 EMC: EN ISO 14982:2009 AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. YR-HT250 • 08/2016 • 52742... - Page 36 Customer Service Hotline. Made in China Gardenline® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES...
