Summary of Contents for Gardenline GLH 692

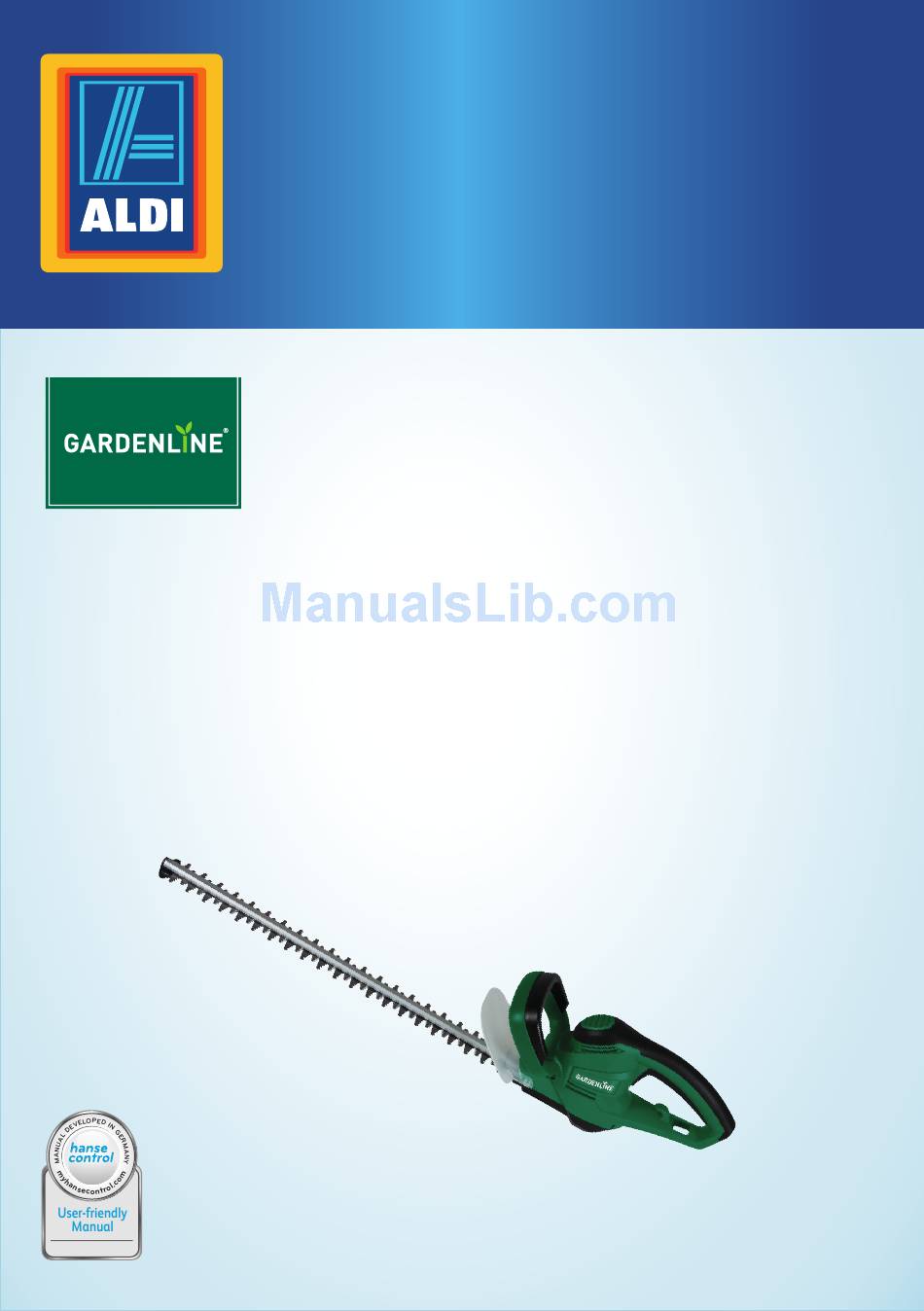

- Page 1 User Manual ELECTRIC HEDGE TRIMMER GLH 692 Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Overview ................3 Use ..................4 Package contents/device parts ..........6 General information ............7 Reading and storing the user manual ........7 Explanation of symbols ............7 Safety ...................8 Proper use ................. 8 Safety instructions ..............9 First use ................14 Checking the hedge trimmer and package contents..14 Preparations ................ - Page 5 15° 15°...
-
Page 6: Package Contents/Device Parts
Package contents/device parts Handle with switch Guide handle with switch Transparent hand guard Blade with double cutter Locking mechanism for protective cap Protective cap Mains cord with mains plug Cable strain relief Cable feed-through Bracket... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this electric hedge trimmer (referred to below as simply the “hedge trimmer”). It contains important information on start-up and handling. Before using the hedge trimmer, read the user manual carefully. This particularly applies to the safety instructions. -
Page 8: Safety
Safety Read the user manual before use. Protect against rain and moisture. Wear eye protection. Wear ear protection. Always detach the mains plug from the socket before performing maintenance or cleaning or when faults occur. Wear protective gloves. The guaranteed L sound power level is 97 dB. -
Page 9: Safety Instructions
Safety Safety instructions WARNING! Read all safety instructions and instructions! Failure to follow the safety instructions and instructions may result in an electric shock, fire and/or severe injury. − Keep all safety instructions and instructions for future reference. Work area safety a) Keep your work area clean and well lit. -
Page 10: Personal Safety
Safety Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 11 Safety e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean.
- Page 12 Safety WARNING! Risks associated with using the hedge trimmer! If used improperly or in a negligent manner, the hedge trimmer may cause serious injury! − Carefully read through the instructions on proper handling, preparatory steps, maintenance, starting and switching off the hedge trimmer.
- Page 13 Safety by thick branches. Remove the cause of the blockage only afterwards. − Check and maintain the hedge trimmer regularly. Always change both cutters at the same time if they are damaged. Have the hedge trimmer inspected by a professional if it is damaged by a fall or collision.
-
Page 14: First Use
First use − Never pull the mains plug out of the socket by the mains cord; instead, always do so by grasping the mains plug. − If the mains cord for the hedge trimmer is damaged, it must be replaced by the manufacturer, its After Sales Support department or a similarly qualified person in order to prevent risks. -
Page 15: Preparations
Operation Preparations 1. Check the hedge: It must not be wet. Remove any foreign objects, such as wires or planting sticks. 2. Check the hedge trimmer to ensure all screw fittings are securely seated and the blade with double cutter is sufficiently sharp. -
Page 16: Cutting
Operation 5. Hold the guide handle securely and press the switch in the process. 6. Grasp the handle with your other hand and also press the switch. Attention: The hedge trimmer starts (see Fig. C). The transparent hand guard protects the hand from branches and twigs while cutting. -
Page 17: Cleaning
Cleaning Cleaning WARNING! Risk of electric shock and injury! Improper handling of the hedge trimmer can cause electric shock and serious or life-threatening injury. − Unplug the hedge trimmer from the mains before cleaning or maintenance to prevent an electric shock or the motor being started accidentally. -
Page 18: Maintenance
Maintenance Thoroughly clean the hedge trimmer immediately after each use and let all components dry. Moist plant cuttings may otherwise harden or start to rot; they are then much harder to remove. 1. Keep the protective devices, air vents and the motor housing as free of dust and dirt as possible. -
Page 19: Troubleshooting
Troubleshooting Troubleshooting WARNING! Risk of electric shock and injury! Improper handling of the hedge trimmer can cause electric shock and serious or life-threatening injury. − Unplug the hedge trimmer from the mains before cleaning or maintenance to prevent an electric shock or the motor being started accidentally. -
Page 20: Technical Data
Technical data Technical data Model: GLH 692 Supply voltage: 230 V ~ 50 Hz Output: 600 W Protection class: II / Cut length: 630 mm Blade length: 695 mm Tooth distance: max. 24 mm Cutting thickness: 15 mm Cutting: 3000 rpm Sound pressure level L 85.6 dB(A) -
Page 21: Residual Risks
Residual risks Residual risks Even if you use this power tool in compliance with applicable regulations, residual risks cannot be ruled out. The following risks associated with the construction and design of this power tool may occur: 1. Eye injury if suitable protective goggles are not worn. 2. -
Page 22: Declaration Of Conformity
EÚ a noriem pre výrobok Lýsir uppfyllingu EU-reglna og annarra staðla vöru a cikkekhez az EU-irányvonal és Normák szerint a következő konformitást jelenti ki Electric Hedge Trimmer GLH 692 (Gardenline) 2014/29/EU 2006/42/EC Annex IV 2005/32/EC_2009/125/EC Noti ed Body: 2014/35/EU Noti... - Page 23 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 95699 0044 1890 946 244 0044 151 649 1500 info@einhell.co.uk YEAR MODEL: WARRANTY GLH 692 04/2018...
