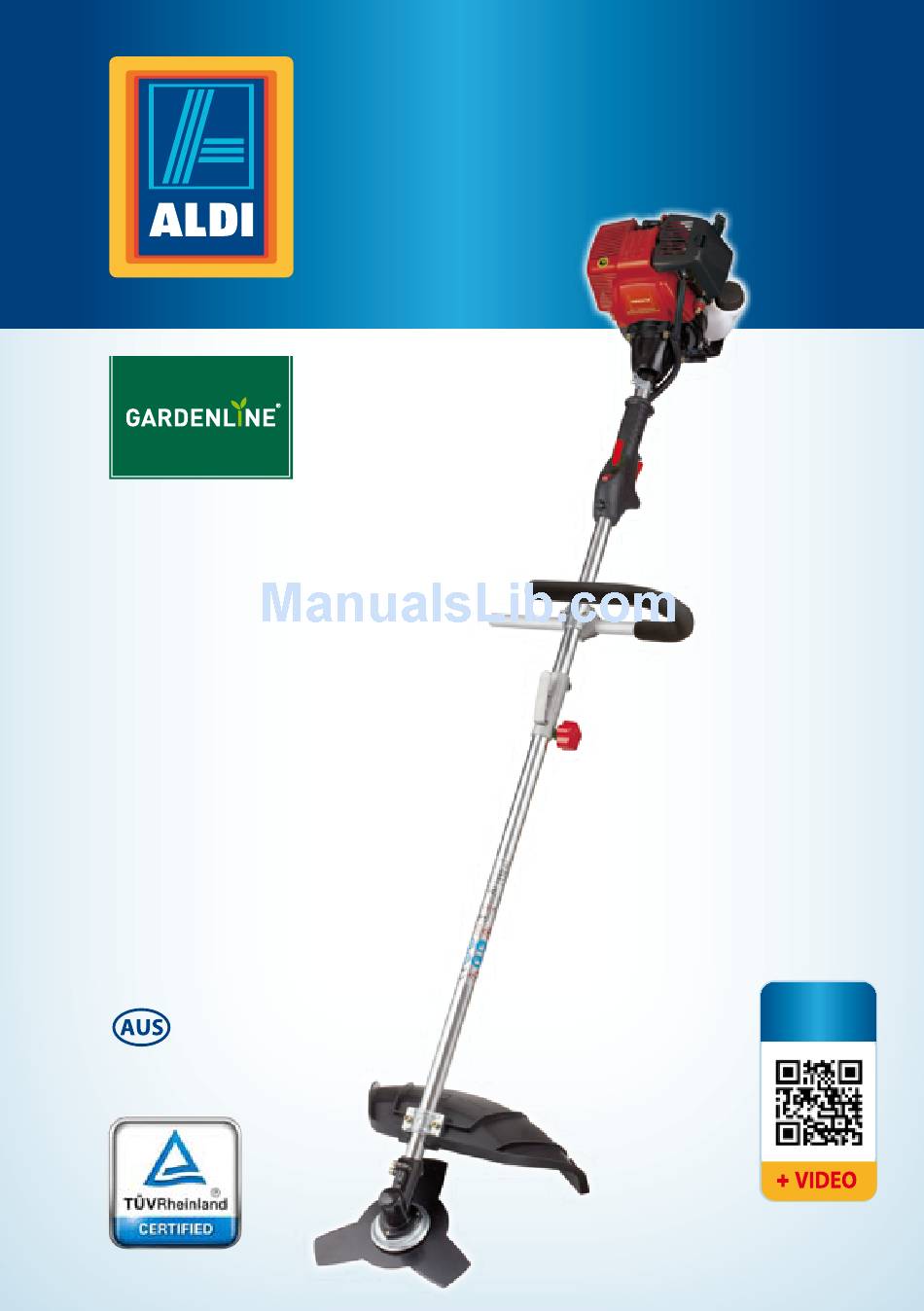

- Page 1 User Manual 31CC 4 STROKE BRUSHCUTTER, LINE TRIMMER Product Info www.powertoolsupport.com...
- Page 2 QR codes take you where you want to go quicky and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales service, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
-
Page 3: Table Of Contents
Contents Pack contents /parts Description of Symbols General safety instructions Additional Safety rules for Petrol products Additional Safety Rules for Petrol Line Trimmers Additional Safety Rules for Petrol Brushcutters Parts List Adding and Checking oil General Assembly for use as a Line Trimmer or Brushcutter Connecting the J handle to the Upper shaft Fitting the Brushcutter / Line Trimmer Guard Fitting &... -
Page 4: Pack Contents /Parts
Understanding and using these operating instructions Pack contents / parts Congratulations on the purchase of your Gardenline® 31cc 4 Stroke Brushcutter / Line Trimmer. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified. -
Page 5: Description Of Symbols
Description of symbols The instruction manual or rating plate on your product may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compatibility. Wear hearing protection, eye protection and breathing protection. Wear safety footwear. -
Page 6: General Safety Instructions
General safety warnings Intended use of the 31cc 4 Stroke Brushcutter / Line Trimmer NOTE: This product is for private domestic DIY use only. It is not suitable for commercial or trade use. This Line Trimmer has been designed for trimming lawn edges and grass around shrubs and trees. - Page 7 b. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is increased risk of electric shock if your body is grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d.
- Page 8 General safety warnings 4. Power tool use and care a. Do not force the power tools. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. a.
-
Page 9: Additional Safety Rules For Petrol Products
Additional Safety Rules for Petrol Products • D o not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. • D o not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations. • P rotect your product. This Brushcutter / Line Trimmer is NOT WEATHERPROOF and should not be exposed to direct sunlight, high ambient temperature and damp, wet or high humidity conditions. -
Page 10: Additional Safety Rules For Petrol Line Trimmers
Additional Safety Rules for Petrol Line Trimmers. • F ollow all sections of the Additional Safety Rules for Petrol Products. • A lways wear goggles, earmuffs and a dusk mask when using the Line Trimmer. • O nly use the length and diameter of nylon cutting line as detailed in this manual. Never use any other cutting material. • N ever use the Line Trimmer without the supplied and correctly fitted guard. • E nsure the line trimming blade is in good order to ensure the correct length of cutting line is maintained. • K eep bystanders at least 5 metres away from the operating the Line Trimmer. - Page 11 31cc Brushcutter / Line Trimmer Operating instructions and safety notes! • N ever use blades near footpaths, fencing, posts, buildings or other immovable objects. • N ever use a blade after hitting a hard object without first inspecting it for damage. Do not use if any damage is detected. • T he unit is used as a scythe, cutting from the right to the left in a broad sweeping action from side to side. • A lways wear goggles, earmuffs and a dusk mask when using the Brushcutter.
-
Page 12: Parts List
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Parts List 29. Outer flange 30. Inner flange 1. Spark plug/spark plug cover 31. Double shoulder strap harness 2. Recoil starter 32. Cut off knife 3. Air filter cover 33. - Page 13 31cc Brushcutter / Line Trimmer Operating instructions and safety notes! AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. WLBCF310 • 08/2015 • 49290...
-
Page 14: Adding And Checking Oil
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Operation of the Brushcutter / Line Trimmer Adding and Checking the oil IMPORTANT: The motor of this brushcutter / line trimmer is packed with NO OIL in the motor. Prior to starting the motor, oil MUST be added to the oil reservoir (24). - Page 15 31cc Brushcutter / Line Trimmer Operating instructions and safety notes! 5. Check the oil mark on the dipstick. It should be approaching the top mark on the dipstick (Fig C). Be careful not to overfill. (Fig D) 6. If the oil level is not close to the top oil mark line, then add small amounts of oil and repeat steps 3,4 &...
-
Page 16: General Assembly For Use As A Line Trimmer Or Brushcutter
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions User Instructions General Assembly for use as a Line Trimmer or Brushcutter Connecting the Lower shaft to the Upper shaft 1. Lay the unit down so that the fuel tank bracket (38) is resting on a secure surface, or on the ground. -
Page 17: Connecting The J Handle To The Upper Shaft
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Connecting the J handle to the Upper shaft WARNING. The J handle must be fitted before use of this product. This includes both combinations of the Brushcutter or the Line Trimmer. Ensure the motor is NOT operating when fitting or adjusting the J handle. - Page 18 31cc Brushcutter / Line Trimmer Understanding and using these operating instructions 3. Re-fit the J handle clamp plate on top of the J handle (12) and replace the screws through the clamp plate and into the clamp. (Fig M) Note: ensure the long hex headed screw is fitted in the same position as was disassembled.
- Page 19 31cc Brushcutter / Line Trimmer Operating instructions and safety notes! 3. When the location screw has entered the location hole, the under screws securing the clamp plate can be tightened. Ensure the screws are equally and firmly secured. (Fig P) 4.
-
Page 20: Fitting The Brushcutter / Line Trimmer Guard
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Fitting the Brushcutter / Line Trimmer Guard Before using either the Brushcutter or Line Trimmer, the Brushcutter Guard needs to be assembled. 1. Lay the unit down so that the fuel tank bracket (38) is resting on a secure surface, or on the ground. -
Page 21: Fitting & Adjusting The Double Strap Shoulder Harness
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Fitting & Adjusting the Double Strap Shoulder Harness WARNING. The Double strap shoulder harness (31) must be fitted before use of the product. This includes both combinations of the brushcutter or the line trimmer. 1. -
Page 22: Fitting The Brushcutter Blade
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Fitting the Brushcutter Blade NOTE: Always ensure the engine is turned off before undertaking this task. NOTE: Before fitting, check the diameter of the cutter is 255mm, and the Bore size is 25.4mm. Do NOT proceed if the cutter is different to these specifications. -
Page 23: Changing/Removing The Brushcutter Blade
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Changing/Removing the Brushcutter Blade NOTE: Always ensure the engine is turned off before undertaking this task. 1. Lay the unit down so that the fuel tank bracket (38) is on the ground or on a secure surface. -
Page 24: Tips For Operation
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Tips for Operation Always use the double shoulder strap harness (31) when using the brushcutter to avoid serious personal injury. Hold the brushcutter with one hand on the trigger handle and the other hand on the J handle (12). -
Page 25: Fitting/Removing The Spool And Line Assembly
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! WARNING: There is a cut off knife (32) on the clip-on line trimmer guard attachment (33). Use gloves to fit the clip-on line trimmer guard attachment (33) to avoid injury. 1. - Page 26 31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Keep these components in a safe place. The 3T brushcutter blade (28) should be placed back in the cardboard packaging/envelope. 2. Place the spool and line assembly (35) on the spindle (20) and thread on to the spindle finger tight in an anti clockwise direction all the way down untill the back of the spool makes contact...
-
Page 27: Changing The Line Only On The Spool And Line Assembly
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Changing the line only on the Spool and Line Assembly NOTE: Always ensure the engine is turned off before undertaking this assembly. NOTE: The spool and line assembly supplied with this product requires1 length of 2.4mm diameter nylon cutting line with a length NOT EXCEEDING 2.8 metres long. - Page 28 31cc Brushcutter / Line Trimmer Understanding and using these operating instructions 5. Wrap the line around the inside of the spool (following the directional arrow on the underside of the spool as indicated by the “WIND CORD” and arrow). Ensure the line is wrapped tightly and neatly.
-
Page 29: Use Of The Line Trimmer
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Prior to operating the line trimmer after line has been added, it is suggested to trim the lines so they are even and just short of the cutting blade on the guard. -
Page 30: Tips For Operating The Line Trimmer / Tips For Cutting
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Tips for operating the Line Trimmer IMPORTANT. Petrol line trimmers transmit vibrations to the operator during use. These vibrations can generate increased fatigue. For this reason, we recommend taking regular breaks during work. We also recommend taking a break after a few hours of work to rest the engine. -
Page 31: Feeding The Line
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Feeding the line The line trimmer has a bump feed mechanism which releases the line without having to stop the engine. 1. To release additional line increase the speed of the motor to no less than half speed, then, lightly tap the bump knob (34) on the ground while operating the unit at high speed. -
Page 32: Fuelling
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Operation of the Brushcutter / Line Trimmer Fuelling IMPORTANT: Fuel goes off after about 3-4 months. If you find your unit does not start, first change the fuel in the tank with newly purchased fuel. WARNING: Do not refill fuel tank while engine is running or is hot. -
Page 33: Starting The Brushcutter / Line Trimmer
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! • A lways transport and store fuels in an approved container. • N ever place flammable material close to the engine muffler. • N ever operate the product without a properly functioning muffler and spark plug cover installed. • N ever operate the product unless it is properly assembled and in good working condition. • D o not use fuel which contains ethanol or methanol as it may damage the fuel lines and other engine parts. - Page 34 31cc Brushcutter / Line Trimmer Understanding and using these operating instructions 5. Push the choke (red lever) (22) half way down and allow the motor to warm up. Restart if the motor stops. Do not pull the cord with a jerk or release it until fully rewound. Provided the previous steps have been performed, the motor should start.
-
Page 35: Stopping The Brushcutter/Line Trimmer/Maintenance And Cleaning
Ensure the motor has stopped, and the on/ off switch is in the STOP position. The spark plug lead should be removed from the spark plug. Only use original Gardenline replacement parts when component parts require replacement. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com... -
Page 36: Air Filter Fuel Filter
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Repairs Repairs beyond those described above, should only be undertaken by trained personal. Should a malfunction occur do not use the unit any further and do not attempt to repair it yourself. Contact Customer Service or have the unit repaired by an approved Service Agent. -
Page 37: Checking The Spark Plug, Servicing
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Checking the spark plug Check the spark plug every 10–15 hours of use. 1. Remove the spark plug cover (1). Note: It is recommended to remove the air filter cover (3) first before removing the spark plug cover as the spark plug lead is held in position under the air filter cover and by removing the air filter cover there is easier access to remove the spark plug cover. -
Page 38: Storage & Maintenance
2 to 3 times in order to distribute the oil evenly. Replace the spark plug. Warranty Your new Gardenline® Brushcutter / Line Trimmer will more than satisfy your expectations. It has been manufactured under stringent Gardenline® Quality Standards to meet superior performance criteria. -
Page 39: What Your 3 Year Warranty Means
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Your Gardenline® Brushcutter / Line Trimmer has many features that will make your job faster and easier. Safety, performance, and dependability have been given top priority in the development of this Brushcutter / Line Trimmer, making it easy to maintain and operate. -
Page 40: Troubleshooting
31cc Brushcutter / Line Trimmer Understanding and using these operating instructions Troubleshooting Problem Possible Cause Solution Power loss or Fuel Tank (6) is empty Check whether the fuel tank (6) is empty sudden stopping and refuel if required. NOTE: If the trimmer is being used a lot on of the engine its side, the tank may require a minimum of 1/4 tank of fuel. -
Page 41: Specifications
31cc Brushcutter / Line Trimmer Operating instructions and safety notes! Recycling Environmental protection Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. - Page 42 Customer Service Hotline. Made in China Gardenline® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES...
