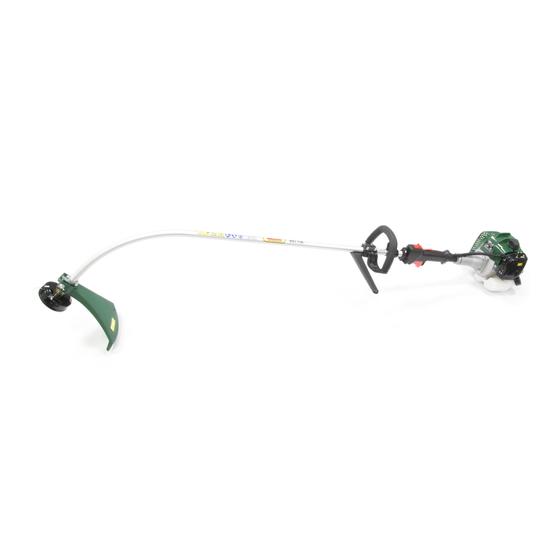

26cc Petrol Line Trimmer
After Sales Support
Now you have purchased a Gardenline
product you can rest assured in the
knowledge that as well as your
3 year parts and labour guarantee
you have the added peace of
mind of dedicated helplines
and web support
AFTER SALES SUPPORT
www.powertoolsupport.com
1800 909 909
AUS
MODEL: LT26
PRODUCT CODE: 43670
User Guide
®
2
YEAR WARRANTY
10/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT26 and is the answer not in the manual?

Questions and answers

D Laidlaw
January 31, 2025

Are these snippers on market

0

Subscribe to Our Youtube Channel

Related Manuals for Gardenline LT26

Summary of Contents for Gardenline LT26

  • Page 1 26cc Petrol Line Trimmer User Guide After Sales Support Now you have purchased a Gardenline ® product you can rest assured in the knowledge that as well as your 3 year parts and labour guarantee you have the added peace of...

  • Page 2: Table Of Contents

    Contents Warranty Introduction Environmental protection Description of symbols Specifications Safety instructions Additional safety rules for petrol line trimmers Parts list Unpacking Contents of carton Assembly Mixing the fuel Filling the tank Starting the line trimmer Stopping the line trimmer Running in the engine Use of the petrol line trimmer Operating the line trimmer Feeding the line...

  • Page 3: Warranty

    Introduction Your new Gardenline line trimmer will more than satisfy ® your expectations. It has been manufactured under stringent Gardenline Quality Standards to meet superior performance ® criteria. You will find your new line trimmer easy and safe to operate, and, with proper care, it will give you many years of dependable service.

  • Page 4: Description Of Symbols

    General Information & Safety Instructions Description of symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compatibility. Wear hearing protection. Wear eye protection. Wear breathing protection.

  • Page 5: Specifications

    General Information & Safety Instructions Specifications Engine: 26cc, 2 stroke Max. speed: 8500min Cutting diameter (swathe): 380mm Line thickness: Spool type: Bump feed, twin line Fuel tank capacity: 700ml Fuel type: Unleaded petrol Fuel mixture: Unleaded petrol: 2-Stroke oil (40:1) Spark Plug: Torch L7RTC Equivalent spark plugs:...

  • Page 6: Safety Instructions

    General Information & Safety Instructions Safety instructions WARNING Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 7 General Information & Safety Instructions Power tool use and care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

  • Page 8: Additional Safety Rules For Petrol Line Trimmers

    General Information & Safety Instructions Additional safety rules for petrol line trimmers • Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. • Do not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations.

  • Page 9: Parts List

    Parts List 1. Cutting line spool and assembly 2. Cut off knife 3. Safety guard 4. Handle 5a. Upper shaft 5b. Lower shaft 6. Recoil starter 7. Ignition On/Off switch 8. Fuel tank 9. Throttle trigger 10. Primer 11. Spark plug 12.

  • Page 10: Unpacking

    Getting Started Unpacking Due to modern mass production techniques, it is unlikely that your petrol line trimmer is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury.
  • Page 11 Instructions 2. Place the hex nut into the hex shape recess on the guard. Slide the screw through the side of the safety guard and tighten with the hex key provided. Joining the shaft 1. Depress the location pin and insert the lower shaft (5b) into the upper shaft (5a).
  • Page 12 Instructions Fitting and adjusting the secondary handle pre-packed position WARNING. Before each use, ensure the secondary handle cannot swivel by checking the two handle clamp screws are tight and the handle is firm. 1. The line trimmer has been pre-packed with the secondary handle facing in the opposite direction to where it must sit during use.

  • Page 13: Mixing The Fuel

    Instructions Mixing the fuel MOTOR FUEL: MIX AT 40:1 ONLY For example: For 1 litre of unleaded petrol add 25ml of oil. For 5 Litres of unleaded petrol add 125ml of oil. IMPORTANT. Use good quality air cooled 2-stroke engine oil. This product is powered by a 2-stroke engine and requires pre-mixing fuel with 2-stroke oil.

  • Page 14: Filling The Tank

    Instructions Filling the tank WARNING. Always shut off the engine before fuelling. Never add fuel to a machine with a running or hot engine. Move at least 9 m (30 ft.) away from the refuelling site before starting engine. Do not smoke when refuelling or operating the line trimmer.

  • Page 15: Starting The Line Trimmer

    Instructions Starting the line trimmer Choke control Start position (choke closed). Run position (choke open). 1. Press the ignition switch (7) to the ‘on’ position marked with an “I”. 2. Move the red choke lever (14) upwards to the start position (cold start). Note.

  • Page 16: Stopping The Line Trimmer

    Instructions 7. Once the engine is fully warm ensure the choke (red lever) is down fully to the run position (warm start) and pull the throttle trigger and release. This will release the throttle lock. 8. To increase the speed of the cutting line, squeeze the safety lever (13) first, and then squeeze the throttle trigger.

  • Page 17: Running In The Engine

    Instructions Running in the engine 1. During the first 2–3 hours of work, run the engine at a moderate RPM. 2. We advise you in any case not to maintain your engine at a high speed as the different components must settle with each other during the process of running in the engine.

  • Page 18: Feeding The Line

    Instructions Note. If grass becomes wrapped around the spool, stop the engine, disconnect the spark plug wire, and remove the grass. Note. Prolonged cutting not at full throttle may result in oil dripping from the muffler. Feeding the line WARNING. The engine of the petrol line trimmer must be at a complete stop during assembling, repair and cleaning operations that could be necessary.

  • Page 19: Advancing The Llne Manually

    Instructions Advancing the line manually 1. Push the bump knob in while pulling on both lines to manually advance the line. 2. Release the bump knob and again pull on both lines to advance the line further. 3. If the line still does not advance remove the spool and check the lay of the line. It may be twisted or trapped under over laying line.

  • Page 20: Maintenance

    Instructions 9. With the spring fitted onto the shaft of the spool holder insert the spool back into the holder. As you insert the spool, thread the lines through the eyelets and pull firmly to disengage from the notch in the spool. Note.
  • Page 21 Instructions • Heavy deposits should be washed out in suitable detergent. • Squeeze out the remaining water an allow the filter to completely dry. • Add a drop of thin oil to the filter and replace it. Fuel Filter • Fuel tank (8) is fitted with a filter. •...

  • Page 22: Storage And Maintenance After Use

    Instructions Storage and maintenance after use • When you finish working, clean the petrol line trimmer completely, making sure there is no grass or dirt wrapped in the cutting tools, and put it back into its package in order to avoid its hurting you or other people during transport. •...
  • Page 23 Should you find the following accessories are worn or past their user life, replacements can be purchased online via our website www.extrabattery.com • Spool & Line (LT26-SPL) • Replacement Spark Plug (Torch L7RTC) If you have any queries regarding these accessories, please call us on our Customer Support Line - 1800 909 909.
  • Page 24 AFTER SALES SUPPORT www.powertoolsupport.com 1800 909 909 YEAR WARRANTY MODEL: LT26 PRODUCT CODE: 43670 10/2014 AFTER SALES SUPPORT 1800 909 909 www.globalpowerbrands.com email: help@globalpowerbrands.com 43670...
