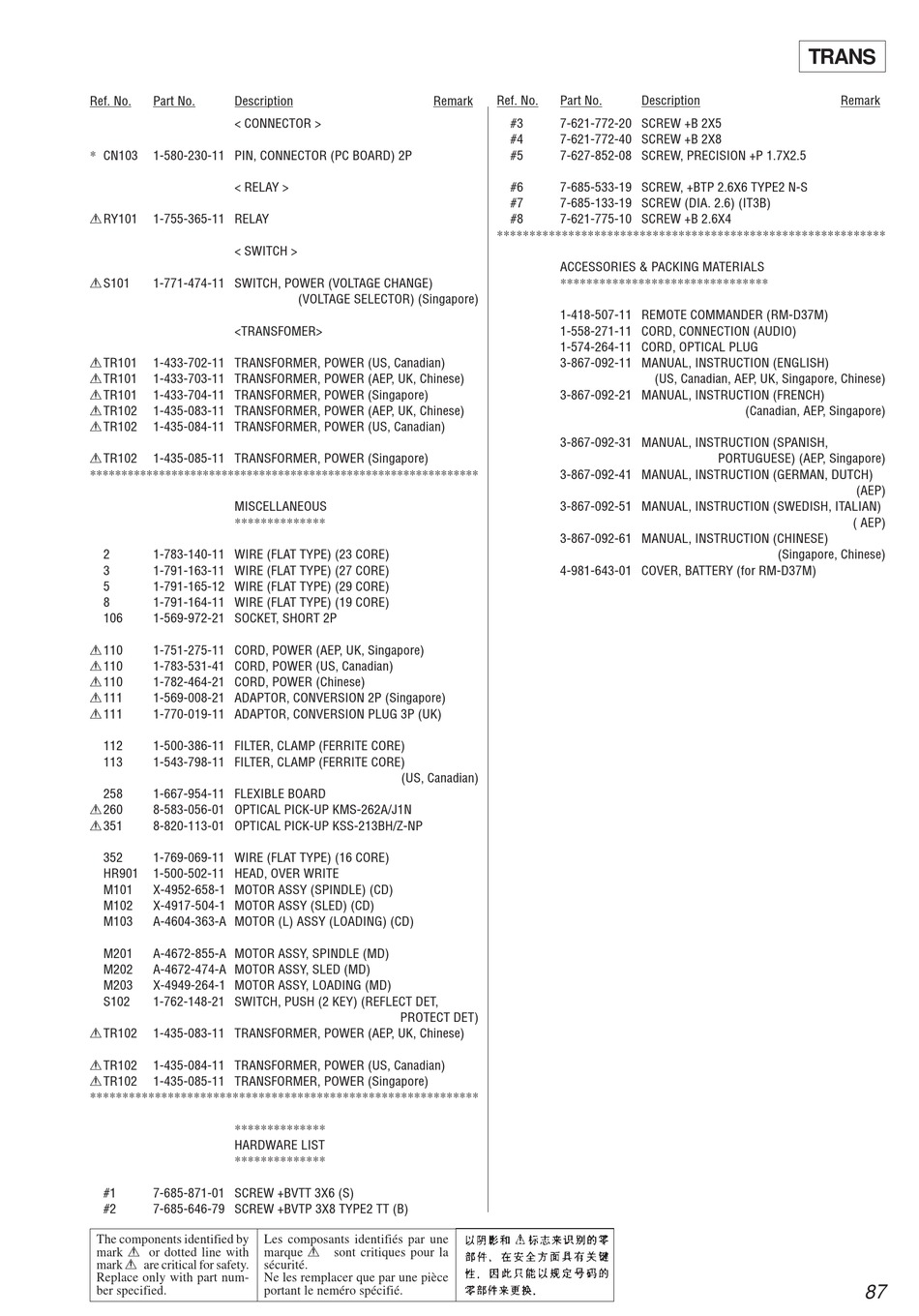

Components Identified By Mark 0 Or Dotted - Sony MXD-D3 Service Manual

Ref. No. Part No. Description
< CONNECTOR >
* CN103 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
< RELAY >
0 RY101
1-755-365-11 RELAY
< SWITCH >
0 S101
1-771-474-11 SWITCH, POWER (VOLTAGE CHANGE)
<TRANSFOMER>
0 TR101
1-433-702-11 TRANSFORMER, POWER (US, Canadian)
0 TR101 1-433-703-11 TRANSFORMER, POWER (AEP, UK, Chinese)
0 TR101
1-433-704-11 TRANSFORMER, POWER (Singapore)
0 TR102 1-435-083-11 TRANSFORMER, POWER (AEP, UK, Chinese)
0 TR102 1-435-084-11 TRANSFORMER, POWER (US, Canadian)
0 TR102 1-435-085-11 TRANSFORMER, POWER (Singapore)
**************************************************************
MISCELLANEOUS
**************
2 1-783-140-11 WIRE (FLAT TYPE) (23 CORE)
3 1-791-163-11 WIRE (FLAT TYPE) (27 CORE)
5 1-791-165-12 WIRE (FLAT TYPE) (29 CORE)
8 1-791-164-11 WIRE (FLAT TYPE) (19 CORE)
106 1-569-972-21 SOCKET, SHORT 2P
0 110
1-751-275-11 CORD, POWER (AEP, UK, Singapore)
0 110
1-783-531-41 CORD, POWER (US, Canadian)
0 110 1-782-464-21 CORD, POWER (Chinese)
0 111
1-569-008-21 ADAPTOR, CONVERSION 2P (Singapore)
0 111
1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
112 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
113 1-543-798-11 FILTER, CLAMP (FERRITE CORE)
258 1-667-954-11 FLEXIBLE BOARD
0 260 8-583-056-01 OPTICAL PICK-UP KMS-262A/J1N
0 351
8-820-113-01 OPTICAL PICK-UP KSS-213BH/Z-NP
352 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
HR901 1-500-502-11 HEAD, OVER WRITE
M101 X-4952-658-1 MOTOR ASSY (SPINDLE) (CD)
M102 X-4917-504-1 MOTOR ASSY (SLED) (CD)
M103 A-4604-363-A MOTOR (L) ASSY (LOADING) (CD)
M201 A-4672-855-A MOTOR ASSY, SPINDLE (MD)
M202 A-4672-474-A MOTOR ASSY, SLED (MD)
M203 X-4949-264-1 MOTOR ASSY, LOADING (MD)
S102 1-762-148-21 SWITCH, PUSH (2 KEY) (REFLECT DET,
0 TR102
1-435-083-11 TRANSFORMER, POWER (AEP, UK, Chinese)
0 TR102 1-435-084-11 TRANSFORMER, POWER (US, Canadian)
0 TR102
1-435-085-11 TRANSFORMER, POWER (Singapore)
************************************************************
**************
HARDWARE LIST
**************
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Remark
(VOLTAGE SELECTOR) (Singapore)
(US, Canadian)
PROTECT DET)
Les composants identifiés par une
marque 0
sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Ref. No. Part No. Description
#3 7-621-772-20 SCREW +B 2X5
#4 7-621-772-40 SCREW +B 2X8
#5 7-627-852-08 SCREW, PRECISION +P 1.7X2.5
#6 7-685-533-19 SCREW, +BTP 2.6X6 TYPE2 N-S
#7 7-685-133-19 SCREW (DIA. 2.6) (IT3B)
#8 7-621-775-10 SCREW +B 2.6X4
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-418-507-11 REMOTE COMMANDER (RM-D37M)
1-558-271-11 CORD, CONNECTION (AUDIO)
1-574-264-11 CORD, OPTICAL PLUG
3-867-092-11 MANUAL, INSTRUCTION (ENGLISH)
(US, Canadian, AEP, UK, Singapore, Chinese)
3-867-092-21 MANUAL, INSTRUCTION (FRENCH)
3-867-092-31 MANUAL, INSTRUCTION (SPANISH,
3-867-092-41 MANUAL, INSTRUCTION (GERMAN, DUTCH)
3-867-092-51 MANUAL, INSTRUCTION (SWEDISH, ITALIAN)
3-867-092-61 MANUAL, INSTRUCTION (CHINESE)
4-981-643-01 COVER, BATTERY (for RM-D37M)
