MZ-NF810/NF810CK
SERVICE MANUAL
Ver 1.0 2003. 03
US and foreign patents licensed from Dolby
Laboratories.
• SonicStage, OpenMG and the OpenMG
logo, MagicGate, Memory Stick and the
MagicGate Memory Stick logo,
Memory Stick and the Memory Stick
logo, Net MD and the Net MD logo are
trademarks of Sony Corporation.
• Microsoft, Windows, Windows NT and
Windows Media are trademarks or
registered trademarks of Microsoft
Corporation in the United States and /or
other countries.
• IBM and PC/AT are registered
trademarks of International Business
Machines Corporation.
• Macintosh is a trademark of Apple
Computer, Inc. in the United States and/
or other countries.
• MMX and Pentium are trademarks or
registered trademarks of Intel
Corporation.
Sony Corporation
9-877-145-01
2003C167800-1
Personal Audio Company
C 2003.03
Published by Sony Engineering Corporation

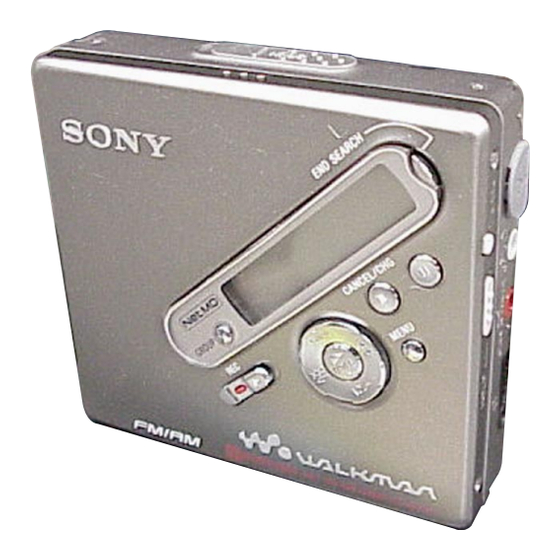

Photo : MZ-NF810
Model Name Using Similar Mechanism
Mechanism Type
Optical Pick-up Name
MD recorder
Audio playing system
MiniDisc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 790 nm
Emission duration: continuous
Laser output: less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the lens surface on the optical
pick-up block with 7 mm aperture.)
Recording and playback time (when
using MDW-80)
Maximum 160 min. in monaural
Maximum 320 min. in LP4 stereo
Revolutions
380 rpm to 2,700 rpm (CLV)
Error correction
ACIRC (Advanced Cross Interleave Reed
Solomon Code)
Sampling frequency
44.1 kHz
Sampling rate converter
Input: 32 kHz/44.1 kHz/48 kHz
Coding
ATRAC (Adaptive TRansform Acoustic
Coding)
ATRAC3 — LP2/LP4
PORTABLE MINIDISC RECORDER
US Model
Canadian Model
MZ-NF810CK
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
MZ-R410
MT-MZN710-177
LCX-5R
SPECIFICATIONS
– Continued on next page –
MZ-NF810

Advertisement

   Related Manuals for Sony MZ-NF810CK

   Summary of Contents for Sony MZ-NF810CK

  • Page 1

    Sampling rate converter Input: 32 kHz/44.1 kHz/48 kHz Coding ATRAC (Adaptive TRansform Acoustic Coding) ATRAC3 — LP2/LP4 – Continued on next page – PORTABLE MINIDISC RECORDER Sony Corporation 9-877-145-01 2003C167800-1 Personal Audio Company C 2003.03 Published by Sony Engineering Corporation...

  • Page 2

    Nickel metal General hydride Power requirements rechargeable Sony AC Power Adaptor connected at the DC battery + One IN 3V jack: 120 V AC, 60 Hz (Models for USA, Canada, Mexico, and Taiwan) Measured in accordance with the JEITA...

  • Page 3: Table Of Contents

    NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES It is best to use only unleaded solder but unleaded solder may SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. also be added to ordinary solder.

  • Page 4: Servicing Notes

    MZ-NF810/NF810CK SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP System requirements BLOCK OR BASE UNIT The following hardware and software are required in order to use the SonicStage software for the Net MD. The laser diode in the optical pick-up block may suffer electro- Computer IBM PC/AT or Compatible static break-down because of the potential difference generated...

  • Page 5: General

    MZ-NF810/NF810CK SECTION 2 This section is extracted from instruction manual. GENERAL Looking at controls The display window of the recorder The recorder : Indication for remaining playing LP2 (LP2 stereo), LP4 (LP4 stereo), time of the current track or of the disc MONO (monaural) indication : Indication for remaining Level meter...

  • Page 6: Disassembly

    MZ-NF810/NF810CK SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. Disassembly Flow CASE (LOWER) In order to remove mechanism deck (MT-MZN710-177) , please remove MAIN board and upper panel section. MAIN BOARD, PANEL (UPPER) SECTION BATTERY CASE MECHANISM DECK LCD MODULE,...

  • Page 7: Case (lower)

    MZ-NF810/NF810CK Note: Follow the disassembly procedure in the numerical order given. 3-2. Case (Lower) 6 two screws (M1.4) 7 Remove the case (lower) in the direction of the arrow. 4 two screws 5 screw (M1.4) (M1.4) 2 claw battery lid 1 Open the battery case lid.

  • Page 8: Panel (upper) Section

    MZ-NF810/NF810CK 3-4. Panel (Upper) Section 1 flexible board (CN871) 5 upper panel section 3 two screws (M1.4) set chassis assy 4 two screws (M1.4) torsion spring (pop up-L) 6 torsion spring (pop up-L) 2 Slide the open slider in the direction of the arrow, and open the upper panel section.

  • Page 9: Mechanism Deck (mt-mzn710-177)

    MZ-NF810/NF810CK 3-6. Mechanism Deck (MT-MZN710-177) 1 two step screws (MD) 3 mechanism deck (MT-MZN710-177) 4 set chassis assy...

  • Page 10: Op Service Assy (lcx-5r)

    MZ-NF810/NF810CK 3-7. OP Service Assy (LCX-5R) 2 gear (SA) 5 screw (M1.4) 1 washer (0.8-2.5) 6 thrust detent spring 3 screw (M1.4) 8 Pull off lead screw. 4 rack spring 9 Opening the over write head toward the direction A , remove the OP service assy (LCX-5R) toward the direction B .

  • Page 11: Holder Assy

    MZ-NF810/NF810CK 3-8. Holder Assy 4 holder assy 2 Open the holder assy. 3 boss 1 convex portion 3 boss 3-9. DC Motor (Sled) (M602) 2 washer (0.8-2.5) 3 gear (SA) 4 two screws (M1.4) 1 Remove six solders 5 DC motor (sled) (M602) of the motor flexible board.

  • Page 12: Dc Motor (over Write Head Up/down) (m603)

    MZ-NF810/NF810CK 3-10. DC Motor (Over Write Head Up/Down) (M603), DC SSM18B Motor (Spindle) (M601) 1 Remove six solders of the motor flexible board. 2 tapping screw 3 motor cover 7 DC motor (over write head up/down) (M603) Note: Press-fit the gear (HA) up to the position of the DC motor (over write head up/down) (M603) as shown below.

  • Page 13: Test Mode

    MZ-NF810/NF810CK SECTION 4 TEST MODE Outline Operation in Setting the Test Mode • This set provides the Overall adjustment mode that allows CD • When the test mode becomes active, first the display check mode and MO discs to be automatically adjusted when in the test mode. is selected.

  • Page 14

    MZ-NF810/NF810CK Configuration of Test Mode [VOL +] key: 100th place of item [Major item switching] number increase. [Test Mode $Display Check Mode%] [VOL --] key: 100th place of item > [VOL +] Press the number decrease. > xCANCEL/CHG [Manual Mode] Press the [Servo Adjustment] [VOL +]...

  • Page 15

    MZ-NF810/NF810CK [END 5. The display changes a shown below each time the Self-Diagnosis Result Display Mode SEARCH] [DISPLAY] is pressed or the key on the remote This set uses the self-diagnostic function system in which if an commander is pressed. error occurred during the recording or playing, the mechanism control block and the power supply control block in the microcomputer detect it and record its cause as history in the...

  • Page 16

    MZ-NF810/NF810CK • Description of error indication codes Problem Indication code Meaning of code Simple display Description No error No error No error Illegal access target Adrs Attempt to access an abnormal address address was specified Servo system error High temperature Temp High temperature detected Focus error...

  • Page 17

    MZ-NF810/NF810CK Sound Skip Check Result Display Mode Key Check Mode This set can display the count of errors that occurred during the This set can check if the set and remote commander function nor- recording/playing for checking. mally. • Setting method of sound skip check result display •...

  • Page 18: Electrical Adjustments

    • Test CD disc TDYS-1 (Part No. : 4-963-646-01) 4. Press the xCANCEL/CHG key to quit the manual mode, and • SONY MO disc available on the market return to the test mode (display check mode). • Digital voltmeter • Laser power meter...

  • Page 19

    MZ-NF810/NF810CK • Adjustment Method of VC1_LOW (PB) • Adjustment Method of VC2_HIGH (item number: 741) (item number: 744) Remote commander LCD display Remote commander LCD display 741 VC1 L 744 VC2 Hi ** ** : Adjusted value ** : Adjusted value 1.

  • Page 20

    MZ-NF810/NF810CK • Adjustment Method of REG3_LOW2 • Adjustment Method of VREC_MIDDLE (X4 speed) (item number: 748) (item number: 752) Remote commander LCD display Remote commander LCD display 748 REG3L2 ** 752 VREC M ** ** : Adjusted value ** : Adjusted value 1.

  • Page 21

    MZ-NF810/NF810CK • Adjustment Method of CHGV_LOW • Adjustment Method of CHGI_LOW (Charge Current) (item number: 755) (item number: 757) Remote commander LCD display Remote commander LCD display 755 ChgV L ** 757 CIL ** ** : Adjusted value ** : Adjusted value Note: Remove the rechargeable battery.

  • Page 22

    MZ-NF810/NF810CK Adjustment/checking and Connection Location: MAIN BOARD (SIDE B) BATT– (GND) BATT+ (W902) TP1905(VCOUT) IC301 TP1823 TP1720 TP1524 TP1907(REGO3) IC801 CSP(Chip Size Package) IC501 TP1519 IC361 (Chip Size TP1909(REGO1) Package) C533 TP1909 IC901 TP1928(VCO1) IC851 IC671 TP1620(VREC) IC951 TP1892 IC601...

  • Page 23

    MZ-NF810/NF810CK Power Supply Adjustment Auto Item Feed 5. Connect digital voltmeter to the measuring points on the MAIN [VOL +] [VOL --] board, and adjust the voltage with the Note: This mode is available to perform the temperature correction and key.

  • Page 24

    MZ-NF810/NF810CK Laser Power Check Overall Adjustment Mode Note: If result of measurement of the laser power does not satisfy the • Configuration of Overall Adjustment Mode specification, either replace the OP (optical pick-up unit) or check whether the laser circuit block is working correctly. Overall adjustment mode When the result of laser power measurement does not satisfy the (Title display)

  • Page 25

    MZ-NF810/NF810CK • Adjustment Method of CD and MO Overall Adjustment • Overall Adjustment error message Mode The following message will be displayed if adjustment 1. Set the test mode (see page 13). procedure is mistaken in the CD and MO overall adjustment. [VOL --] 2.

  • Page 26

    MZ-NF810/NF810CK 2. MO overall adjustment items Item No. Description Item No. Description TWPP gain adjustment VC,VR power supply H/L selection TWPP offset adjustment 1 R_GRV setting . servo OFF TE offset adjustment 2 Low reflection electrical offset adjustment TWPP OP offset adjustment Laser ON .

  • Page 27

    MZ-NF810/NF810CK Remuse Clear Perform the Resume clear when all adjustments completed. • Resume Clear Setting Method 1. Select the manual mode of the test mode, and set item number 043 (see page 14). Remote commander LCD display 043 Resume 00 2.

  • Page 28

    MZ-NF810/NF810CK Rewriting the Patch Data at Replacement of Main Board (IC851) This set requires the patch data in the nonvolatile memory (IC851) to be rewritten using the application, when the MAIN board was replaced. Caution: The application that meets the microcomputer version in this set must be used when rewriting the patch data. Rewriting the patch data using the application not suitable for the microcomputer version could cause the set to malfunction.

  • Page 29

    MZ-NF810/NF810CK 5. Confirm that the model and version indicated on the title bar coincide with the codes displayed in the Device Name block and the Version block in the window. 6. Click the [Write + Read] button. The patch data writing and the verify processing will be executed automatically in the following order: 1) Writing to patch area (front area) 2) Writing to patch area (reverse area) 3) Verifying patch area (front area)

  • Page 30

    MZ-NF810/NF810CK • Confirmation of contents of the patch data rewrited 1. Click the [READ] button to confirm the contents of the patch data rewrited. 2. The application reads out the front and reverse patch areas and displays the results in the edit box. Confirm that the upper column coincides with the lower column as the following window.

  • Page 31

    MZ-NF810/NF810CK • Disconnecting the USB cable Disconnect the USB cable as the following procedure after rewriting the patch data and confirmation. Note : When the following procedure is not completed but USB cable is extracted, the application does not recognize the set at exchanging of the set. 1.

  • Page 32

    MZ-NF810/NF810CK Rewriting the NV values Caution: The application that meets the microcomputer version in this set must be used when rewriting the NV values. Rewriting the NV values using the application not suitable for the microcomputer version could cause the set to malfunction. For a checking method of the microcomputer version, see “SECTION 4 TEST MODE”...

  • Page 33

    MZ-NF810/NF810CK 5. Confirm that the model and version indicated on the title bar coincide with the codes displayed in the Device Name block and the Version block in the window. 6. Click the [Write + Verify] button. The NV values writing and the verify processing will be executed automatically in the following order: 1) Writing to Servo 1 area (front area) 2) Writing to Servo 1 area (reverse area) 3) Writing to Servo 2 area (front area)

  • Page 34

    MZ-NF810/NF810CK 7. The operation will terminate with “Compere OK” given to all areas. If “Compere NG” is given to any area, the nonvolatile memory will be faulty. 8. Click the [USB DISCONNECT] button.

  • Page 35

    MZ-NF810/NF810CK 9. Confirm that the window becomes as shown below where the [Write + Verify] button is inactive. 10. Disconnect the USB cable from the personal computer and the set.

  • Page 36

    MZ-NF810/NF810CK MEMO...

  • Page 37: Diagrams

    MZ-NF810/NF810CK SECTION 6 DIAGRAMS 6-1. Block Diagram SYSTEM CONTROLLER SYSTEM CONTROLLER HP AMP DIGITAL SIGNAL PRCESSOR RF AMP DIGITAL SIGNAL PRCESSOR POWER AMP IC361 IC501 IC801(1/2) IC801(2/2) IC901 VREF REGO1 VREF IN Q361 OPTICAL PICK-UP DVCC REGO1 AOUT L L IN IFVDD0 REGO1 DATA...

  • Page 38: Note For Printed Wiring Board And Schematic Diagrams

    MZ-NF810/NF810CK 6-2. Note For Printed Wiring Board And Schematic Diagrams • Waveforms Note on Printed Wiring Board: Note on Schematic Diagram: • X : parts extracted from the component side. • All capacitors are in µF unless otherwise noted. pF: µµF IC501 9 (RFO)(TP1517) IC601 4 (CLK) IC901 yd (CLK)

  • Page 39: Printed Wiring Board - Main Board (side A)

    MZ-NF810/NF810CK 6-3. Printed Wiring Board – MAIN Board (Side A) – :Uses unleaded solder. • Semiconductor Location Ref. No. Location D605 S804 (PROTECT) MAIN BOARD (SIDE A) D606 D607 D654 D953 D963 D964 D990 C N 6 5 1 IC651 ( U S B ) IC701 IC990...

  • Page 40: Printed Wiring Board - Main Board (side B)

    MZ-NF810/NF810CK 6-4. Printed Wiring Board – MAIN Board (Side B) – :Uses unleaded solder. • Semiconductor Location Ref. No. Location MAIN BOARD (SIDE B) D101 D201 D302 D303 D652 S801 M602 D653 I-11 (HALF LOCK) (SLED) D802 D901 M603 D902 OVER WRITE R E C H A R G E A B L E HEAD UP/DOWN...

  • Page 41: Schematic Diagram - Main Board (1/4)

    MZ-NF810/NF810CK 6-5. Schematic Diagram – MAIN Board (1/4) – • See page 38 for Waveforms. • See page 47 and 49 for IC Block Diagrams. Q604 C630 MCH6616-TL-E C631 47 4V Q605 D606 CPH5614 W602 TP1616 MA2YD1700LS0 R612 C632 C616 100p W601 C617...

  • Page 42: Schematic Diagram - Main Board (2/4)

    MZ-NF810/NF810CK 6-6. Schematic Diagram – MAIN Board (2/4) – • See page 38 for Waveforms. • See page 45 for IC Block Diagrams. J303 J301 J303 (HP OUT) CN871 TP1881 TP1882 D101 TP1883 R848 02DZ2.4-Z(TPH3) TP303 TP1884 TP1885 R849 R315 TP309 D201 02DZ2.4-Z(TPH3)

  • Page 43: Schematic Diagram - Main Board (3/4)

    MZ-NF810/NF810CK 6-7. Schematic Diagram – MAIN Board (3/4) – • See page 38 for Waveforms. • See page 50 for IC Block Diagrams. R821 R822 R824 220k 470k R826 2.2k TP1846 FB802 R827 R825 C819 4.7k 1000p C841 R837 1000p R858 C834 X802...

  • Page 44: Schematic Diagram - Main Board (4/4)

    MZ-NF810/NF810CK 6-8. Schematic Diagram – MAIN Board (4/4) – • See page 38 for Waveforms. • See page 46 and 48 for IC Block Diagrams. C513 C524 0.022 C517 0.01 TP1539 TP518 R511 C718 C720 CN501 C535 C526 TP1504 0.047 TP1711 TP1507 TP1712...

  • Page 45

    MZ-NF810/NF810CK • IC Block Diagrams IC301 AK5356VN-N MICR 22 14 PDN Pre-Amp MVDD 13 CSN MVSS 12 CCLK 11 CDTI MVCM 10 LRCK Audio I/F 9 MCLK MPWR Controller 8 BCLK IC361 TA2131FL (EL) BEEP VREF V REF LPF1 TC MT BST1 LPF2 BEEP...

  • Page 46

    MZ-NF810/NF810CK IC501 SN761058ZQLR AVCC PEAK/ OFTRK T-ON BOTM 42 FE ABCD 41 ABCD 40 RFI A GND 39 ASSY OFC-C1 38 CIG TPP/WPP OFC-C2 37 EFMO VREF10 DGND RESET 34 VGIN VREF09 33 SBUS AVCC2 AVCC2 32 SCK PD-NI CPOUT POWER PD-I SUPPLY...

  • Page 47

    MZ-NF810/NF810CK IC601 XPC18A22AEPR2 VC2 VG OUTPUT SW OUTPUT SW CHARGE CHARGE PUMP 2 PUMP 1 VC VG DC IN HI-BRIDGE CHARGE PRE DRIVER PRE DRIVER MONITOR VREF VREF X2/X4 BATM BUFFER DC IN CVREF CONTROL CONTROL CHARGE CHGSW DW BT CONTROL DW TP DC IN...

  • Page 48

    MZ-NF810/NF810CK IC701 SC111258EPR2 48 47 46 45 52 51 3Phase BIAS control 3Phase control PGNDW2 VG VC PGNDW1 VMVW2 3Phase Pre driver WMVW1 3Phase Pre driver PGNDUV2 PGNDUV1 35 UO2 VMU2 VMR2 VMU1 VG VC VMR1 H-BRIDGE PGND2 DRIVER H-BRIDGE PGND1 DRIVER VMF2...

  • Page 49

    MZ-NF810/NF810CK IC901 SC901580EPR2 (HP AMP) AMP1 CONTROL BANDGAP FFCLR1 48 VREF REFERENCE XWAKE4 47 REGC3 REF1 XWAKE3 46 REGC2 REF2 REF3 XWAKE2 45 REGC1 REF4 REF5 XWAKE1 44 REGI1 SERIES PASS REGULATOR1 REF3 VRMC 43 REGO1 FFCLR 42 VC2 SERIES PASS REGULATOR2 REF4 41 REGO2...

  • Page 50: Ic Pin Function Description

    MZ-NF810/NF810CK 6-9. IC Pin Function Description • IC801 CXD2680-203GA (SYSTEM CONTROLLER, DIGITAL SIGNAL PROCESSOR) Pin No. Pin Name Description OSCI Resonator connection terminal for the system clock (22.5792MHz) OSCO Resonator connection terminal for the system clock (22.5792MHz) VREFL Reference voltage terminal connected to the capacitor (for the built-in D/A converter L-CH) AOUTL Built-in D/A converter L-CH signal output AOUTR...

  • Page 51

    MZ-NF810/NF810CK Pin No. Pin Name Description ADDT Data input from the external A/D converter KRCK L/R sampling clock (44.1KHz) output to the external A/D converter XBCK Bit clock (2.8224MHz) output to the external A/D converter FS256 11.2896MHz clock output Filter cutoff control signal output Not used (open) Clock input from the external VCO Not used (open) LRCKI Input terminal for the PCM data I/F/ ATRAC data I/F Not used (open)

  • Page 52

    MZ-NF810/NF810CK Pin No. Pin Name Description BATT_CTL Control signal output for the voltage step up circuit in the external battery case Not used (open) VREC_CTL VREC voltage control signal output Not used (open) XRST_CHG_IC Reset signal output to the battery charge control IC 114, 115 PD_S0, 1 PD IC mode changeover signal output to the optical pick up...

  • Page 53

    MZ-NF810/NF810CK Pin No. Pin Name Description WK_DET Set key WAKE detection signal input BATT_MON External battery voltage monitor input Not used (connected to the ground) HALF_LOCK_SW Open button detection switch input (A/D input) “L” : the open button is pressed RMC_KEY Key input (A/D input) from the remote commander JOG_PUSH...

  • Page 54

    MZ-NF810/NF810CK Pin No. Pin Name Description — DRAM chip select terminal Not used (open) — DRAM clock terminal Not used (open) — DRAM clock enable terminal Not used (open) UDQM — DRAM byte mask terminal Not used (open) LDQM — DRAM byte mask terminal Not used (open) DVDD0 —...

  • Page 55

    MZ-NF810/NF810CK Pin No. Pin Name Description FVDD0 — Power supply terminal (for the built-in flash memory) FVSS0 — Ground terminal (for the built-in flash memory) 301, 302 DVDD5, 6 — Power supply terminal 303, 304 DRAMVDD3, 4 — Power supply terminal (for DRAM) MSAK —...

  • Page 56: Exploded Views

    MZ-NF810/NF810CK SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they • Accessories are given in the last of the elec- The components identified by mark 0 or may have some difference from the original one. trical parts list.

  • Page 57: Chassis Section

    MZ-NF810/NF810CK 7-2. Chassis Section MD mechanism deck (MT-MZN710-177) not supplied MAIN board section Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-237-072-11 SCREW (MD), STEP X-3382-583-1 CHASSIS ASSY, SET 3-249-532-01 SPRING (POP UP-L), TORSION 3-225-995-91 SCREW (M1.4) (EG), TOOTHED LOCK 3-237-083-01 SPRING (POP UP-R), TORSION 3-234-449-19 SCREW (M1.4) 3-245-888-01 SPRING (LOCK)

  • Page 58: Main Board Section

    MZ-NF810/NF810CK 7-3. MAIN Board Section Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-245-891-01 TERMINAL (–), BATTERY * 107 A-3683-793-B MAIN BOARD, COMPLETE 3-245-890-01 CASE, BATTERY (EXCEPT US,3CED,4CED,UK) X-3382-584-1 TERMINAL (+) ASSY, BATTERY 3-249-348-01 SHEET (PWB) 3-234-449-19 SCREW (M1.4) 3-253-535-01 SHEET (DC-IN) 3-245-902-01 COVER, INSULATING...

  • Page 59: Mechanism Deck Section-1 (mt-mzn710-177)

    MZ-NF810/NF810CK 7-4. Mechanism Deck Section-1 (MT-MZN710-177) mechanism deck section-2 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-3381-219-1 HOLDER ASSY 3-043-237-02 BEARING (N) 3-224-779-02 SPRING, THRUST DETENT 4-222-203-02 SCREW, LEAD 0 309 3-225-996-01 SCREW (M1.4) (EG), PRECISION PAN X-3382-953-1 SERVICE ASSY, OP (LCX-5R) 4-222-216-01 GEAR (SA) 3-049-336-03 SPRING (S), RACK...

  • Page 60: Mechanism Deck Section-2 (mt-mzn710-177)

    MZ-NF810/NF810CK 7-5. Mechanism Deck Section-2 (MT-MZN710-177) M602 M603 not supplied M601 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-225-278-12 SCREW, TAPPING 3-235-839-01 LEVER (RACK) 3-235-838-01 COVER, MOTOR 3-338-645-31 WASHER (0.8-2.5) 3-235-836-01 GEAR (HB) 4-222-222-01 GEAR (RACK) 3-222-544-01 GEAR (HA) A-3174-089-A SHAFT BLOCK ASSY, SUB 3-235-835-01 GEAR (HC)

  • Page 61: Electrical Parts List

    MZ-NF810/NF810CK SECTION 8 MAIN ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • SEMICONDUCTORS : Canadian model parts list may be different from the parts speci- In each case, u: µ, for example: : Hong Kong model fied in the diagrams or the components used uA.

  • Page 62

    MZ-NF810/NF810CK MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C527 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V C814 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C533 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V C815 1-164-935-11 CERAMIC CHIP 470PF 10.00% 50V C534 1-164-941-11 CERAMIC CHIP...

  • Page 63

    MZ-NF810/NF810CK MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CN701 1-573-350-11 CONNECTOR, FFC/FPC 10P IC651 8-759-569-80 IC XC6367A331MR CN871 1-573-355-11 CONNECTOR, FFC/FPC 15P IC671 6-700-958-01 IC XC61FS1YXXMR < DIODE > IC701 6-702-786-01 IC SC111258EPR2 @ IC801 6-702-355-01 IC CXD2680-203GA ✩...

  • Page 64

    MZ-NF810/NF810CK MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > R509 1-218-990-11 SHORT CHIP R511 1-218-990-11 SHORT CHIP R101 1-208-927-11 METAL CHIP 0.5% 1/16W R609 1-218-965-11 RES-CHIP 1/16W R102 1-208-715-11 METAL CHIP 0.5% 1/16W R612 1-216-789-11 METAL CHIP...

  • Page 65

    MZ-NF810/NF810CK MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R836 1-218-985-11 RES-CHIP 470K 1/16W R990 1-218-989-11 RES-CHIP 1/16W R837 1-218-973-11 RES-CHIP 1/16W R991 1-218-989-11 RES-CHIP 1/16W R838 1-218-957-11 RES-CHIP 2.2K 1/16W R992 1-218-989-11 RES-CHIP 1/16W R839 1-218-990-11 SHORT CHIP R993...

  • Page 66

    MZ-NF810/NF810CK Part No. Description Remark 1-794-451-11 CONNECTOR, LIGHT (US,CND,3CED,4CED,UK,TW,AUS,JE) 1-794-451-51 CONNECTOR, LIGHT (E,HK,CH) 1-823-519-11 CORD, CONNECTION 3-008-521-01 CASE, CHARGE 3-220-749-01 CASE, CARRYING (E,TW,HK,CH,AUS,JE) 3-228-300-11 CASE, BELT CLIP CARRYING (CND,3CED,4CED,UK) 3-241-715-01 POUCH, CAR CARRYING (US, CND) 3-253-608-11 MANUAL, INSTRUCTION (HOW TO INSTALL) (ENGLISH)(US,CND) 3-253-608-21 MANUAL, INSTRUCTION (HOW TO INSTALL) (FRENCH)(CND)

  • Page 67

    MZ-NF810/NF810CK MEMO...

  • Page 68: Revision History

    MZ-NF810/NF810CK REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2003.03...
