SERVICE MANUAL
Ver 1.0 2001. 08
US and foreign patents licensed from Dolby
Laboratories.
Audio playing system
MiniDisc digital audio system
Laser diode properties
Material: GaAlAs
λ
Wavelength: = 790 nm
Emission dura tion : continuous
Laser output: less than 44. 6 µW
(This output is the va lue measured at a distance
of 200 mm from the lens surface on the optical
pick-up block with 7 mm a per ture .)
Recording and playback time
When using MDW-80:
Ma ximum 160 min. in monaura l
Ma ximum 320 min. in stereo
Revolutions
350 rpm to 2,800 rpm (CLV)
Error correction
ACIRC (Advanced Cross Interleave Reed
Solomon Code)
Sampling frequency
44.1 kHz
Sampling rate converter
Input: 32 kHz/44. 1 kHz/48 kHz
Coding
ATRAC (Adaptive TRa nsform Acoust ic
Coding)
ATRAC3 — LP2
ATRAC3 — LP4
Modulation system
EFM (Eight to Fourteen Modula tion)
Number of channels
2 s ter eo channels
1 monaura l channel
Frequency response
20 to 20, 000 Hz ± 3 dB
Sony Corporation
9-873-285-01
2001H0500-1
Personal Audio Company
C 2001.8
Shinagawa Tec Service Manual Production Group
Model Name Using Similar Mechanism
Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Wow and Flutter
Below measurable limit
Inputs
Micropho ne : stereo mini-jack, minimum input
leve l 0.25 mV
Line in
1)
: s tereo mini-ja ck, minimum input
leve l 49 mV
1)
Op tical (Digital) in
: optical (digital) mini-ja ck
Outputs
i/LINE OUT
2)
: s tereo mini-jack
headphones/earphones: maximum output
leve l 5 mW + 5 mW, loa d impedance 16 oh m
LINE OUT: 19 4 mV, loa
d impedance 10
kilohm
Power requirements
Sony AC P owe r Ada ptor connecte d a t the DC
IN 3V jack:
23 0 - 240 V AC, 50 Hz (Hong kong model)
10 0 - 240 V AC, 50 /60 Hz (Other models)
Nicke l meta l hydr ide rechageable battery NH-
14WM(A) 1.2V 1350 mAh (MIN) Ni-MH
LR6 (s ize AA) alkaline battery
3)
Dimensions
Approx. 78 .9 × 72. 0 × 17. 1 mm (w/h/d)
× 2
×
(3
1
/
7
/
11
/
in.)
8
8
16
Mass
Approx. 11 0 g (3.9 oz ) the recorder only
1)
The LINE IN (OP T) jack is used to connect
e ither a digital (optica l) cable or a line
(a nalog) cable.
2)
The i/LINE OUT jack connector eithe r
headphones/earphones or a line ca ble .
3)
Measured in accordance with JEITA.

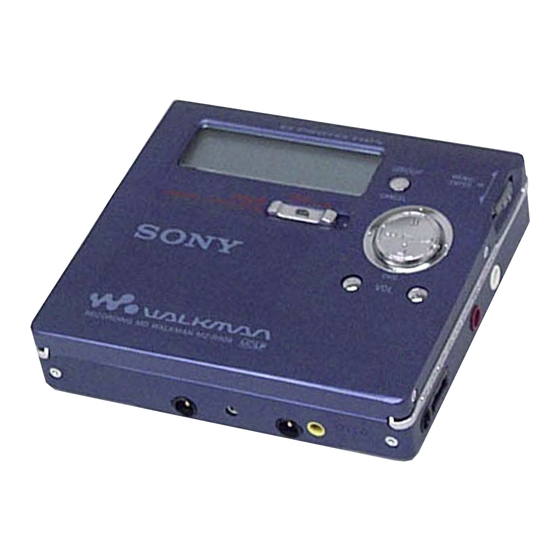

PORTABLE MINIDISC RECORDER
MZ-R909
Tourist Model
Battery operating time
1)
Battery life
When recording
2)
(Unit: approx hours)(JE ITA
Batteries
SP
Stere o
NH-14WM
8.5
nickel metal
hydride
rechargeable
4)
battery
LR6 (S G)
7.5
S ony alkaline
dry battery
5)
NH-14WM
20
nicke l meta l
hydride
rechargeable
4)
battery
+ One LR6
(SG)
5)
1)
The battery life may be shorter due to operating
conditions and the tempreture of the location.
2)
Whe n you record, use a fully charged
rechargeable ba tter y. Recording time may
diffe r according to the a lka line batteries.
– Continued on next page –
E Model
NEW
MT-MZR909-171
LCX-4R
3)
)
LP2
LP4
Stere o
Stereo
11
14
12
15
28
37

Advertisement

Table of Contents
loading

Summary of Contents for Sony MZ-R909

  • Page 1 LR6 (S G) Revolutions Power requirements S ony alkaline 350 rpm to 2,800 rpm (CLV) Sony AC P owe r Ada ptor connecte d a t the DC dry battery Error correction IN 3V jack: NH-14WM ACIRC (Advanced Cross Interleave Reed...
  • Page 2: Table Of Contents

    When using a 100% fully charged rechargeable ba tte ry. DIAGRAMS When using a Sony LR6 (S G) “STAMINA ” 6-1. Block Diagram – SERVO Section – ....... 34 a lka line dry batte ry (produce d in Japan) 6-2. Block Diagram – AUDIO Section – ....... 35 Supplied accessories 6-3.
  • Page 3: Servicing Notes

    MZ-R909 SECTION 1 SERVICING NOTES • In performing the repair with the power supplied to the set, NOTES ON HANDLING THE OPTICAL PICK-UP removing the MAIN board causes the set to be disabled. BLOCK OR BASE UNIT In such a case, fix a convex part of the open/close detect switch The laser diode in the optical pick-up block may suffer electro- (S806 on MAIN board) with a tape in advance.
  • Page 4: General

    MZ-R909 SECTION 2 This section is extracted from instruction manual. GENERAL Looking at controls See pages in ( ) for more details. The display window of the recorder The recorder A Character information display (11) G SYNC (synchro-recording) indication (37) (45) (55) (70)
  • Page 5: Disassembly

    MZ-R909 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. Panel Assy, 3-3. Panel Assy, 3-5. Main Board Assy 3-6. “Case Assy, Battery”, Bottom Upper Section “Main Board” 3-4. “LCD Module”, “Panel Assy, Upper”...
  • Page 6: Panel Assy, Upper Section

    MZ-R909 3-3. PANEL ASSY, UPPER SECTION 3 two ES lock screws 1 flexible board (CN801) 4 panel assy, upper 3 two ES lock screws 2 Push the button (open). 3-4. “LCD MODULE”, “PANEL ASSY, UPPER” 1 four screws (1.7) 2 Remove the LCD module in the direction of the arrow.
  • Page 7: Main Board Assy

    MZ-R909 3-5. MAIN BOARD ASSY 6 flexible board (CN501) 7 main board assy 1 Remove two solders of flexible board. 3 four screws (M1.4 toothed lock) 4 ES lock screw 2 flexible board (CN502) 3-6. “CASE ASSY, BATTERY”, “MAIN BOARD”...
  • Page 8: Strip, Ornamental

    MZ-R909 3-7. STRIP, ORNAMENTAL 1 Pull toward the direction A to disengage two bosses 5 Remove the “strip, ornamental” in the direction of arrow C . 2 Open toward the direction B Note: As the “strip, ornamental” to disengage two bosses...
  • Page 9: Service Assy, Op (Lcx-4R)

    MZ-R909 3-9. SERVICE ASSY, OP (LCX-4R) 2 gear (SA) 5 screw (M1.4) 1 washer (0.8-2.5) 6 spring, thrust detent 3 screw (M1.4) 8 Pull off “screw, lead” 4 spring, rack 9 Opening the over write head toward the direction A , remove the “service assy, OP (LCX-4R) toward the direction B .
  • Page 10: Holder Assy

    MZ-R909 3-10. HOLDER ASSY 5 Remove the holder assy in the direction of arrow D . 2 Push the convex portion 1 Open the holder assy. toward the direction B and open the holder assy toward the direction A to erect uprightly.
  • Page 11: Motor, Dc (Spindle) (M601)", "Motor, Dc (Over Write Head Up/Down) (M603)

    MZ-R909 3-12. “MOTOR, DC (SPINDLE) (M601)”, “MOTOR, DC (OVER WRITE HEAD UP/DOWN) (M603)” 1 Remove six solders of motor flexible board. Note: Press-fit the gear (HA) up to the qa motor, DC (over write head up/down) position of the “motor, DC (over...
  • Page 12: Test Mode

    MZ-R909 SECTION 4 TEST MODE Outline Operation in Setting the Test Mode • This set provides the Overall adjustment mode that allows CD • When the test mode becomes active, first the display check mode and MO discs to be automatically adjusted when in the test mode.
  • Page 13 MZ-R909 Configuration of Test Mode [VOL +] key:100th place of item number [Major item switching] increase. [Test Mode $Display Check Mode%] [VOL --] key:100th place of item number [VOL +] Press the > decrease. [Manual Mode] Press the [Servo Adjustment]...
  • Page 14 MZ-R909 5. The display changes a shown below each time the jog Self-Diagnosis Result Display Mode [DISPLAY] dial (down) is turned or the key on the remote This set uses the self-diagnostic function system in which if an commander is pressed.
  • Page 15 MZ-R909 • Description of error indication codes Problem Indication code Meaning of code Simple display Description No error No error No error Illegal access target Adrs Attempt to access an abnormal address address was specified Servo system error High temperature...
  • Page 16 MZ-R909 Sound Skip Check Result Display Mode Jog and Key Check Mode This set can display the count of errors that occurred during the This set can check if the set and remote commander function nor- recording/playing for checking. mally.
  • Page 17 MZ-R909 Example1: When the key on the set is pressed: > Remote commander LCD display 000 FF ** : AD value of the remote commander key (hexadecimal 00 to FF) Example2: When the key on the remote commander N >...
  • Page 18: Electrical Adjustments

    • Test CD disc TDYS-1 Remote commander LCD display (Part No. : 4-963-646-01) 021 Res*** • SONY MO disc available on the market • Digital voltmeter • Laser power meter LPM-8001 NV reset (after several seconds) (Part No. : J-2501-046-A) •...
  • Page 19 MZ-R909 [PLAYMODE] 7) Select the manual mode of the test mode, and set item number 4. Turn the jog dial (up), or press the key on the 863 (see page 13). remote commander. [PLAYMODE] (Turning the jog dial (up), or pressing the...
  • Page 20 MZ-R909 2. When press the key to write the adjusted value, LCD dis- 7. Press the key, and set the laser CD read adjustment plays as follows and power supply manual adjustment has com- mode (item number 012). pleted. Remote commander LCD display...
  • Page 21 MZ-R909 Overall Adjustment Mode • Overall adjustment mode (title display) • Configuration of overall adjustment Remote commander LCD display 000 Assy** Overall adjustment mode (Title display) : (Disc mark) At end of power supply adjustment: Outside lit At end of electrical offset adj.: Inside lit Protect switch Note: On the set having microcomputer version 1.000, the disc...
  • Page 22 MZ-R909 • Adjustment method of overall CD and MO adjustment • Overall CD and MO adjustment items mode 1. Overall CD adjustment items 1. Set the test mode (see page 12). Item No. Description [VOL --] 2. Press the key to activate the overall adjust- ment mode.
  • Page 23 MZ-R909 Resume Clear 7. Press the key. (0FF8 is blinking) Perform the Resume clear when all adjustments completed. [VOL+] 8. Press the key once to change the blinking portion to 0FF9. • Resume clear setting method 1. Select the manual mode of the test mode, and set item number Remote commander LCD display 043 (see page 13).
  • Page 24 MZ-R909 21. Press the key. 35. Press the key. (00 is blinking) (1004 is blinking) [VOL+] [VOL--] [VOL+] 22. Adjust with the key (adjusted value up) or 36. Press the key once to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 1005.
  • Page 25 MZ-R909 [VOL+] [VOL--] [VOL+] 47. Adjust with the key (adjusted value up) or 61. Press the key once to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 101C. Remote commander LCD display Remote commander LCD display...
  • Page 26 MZ-R909 [VOL+] [VOL--] [VOL +] 75. Adjust with the key (adjusted value up) or 89. Press the key to change the blinking portion to 102C, [DISPLAY] key (adjusted value down) so that the adjusted value becomes and press the key on the remote commander for several seconds (about 3 seconds) to exit the patch data write mode and display as below.
  • Page 27 MZ-R909 [VOL+] [VOL--] [VOL+] 100. Adjust with the key (adjusted value up) or 114. Press the key twice to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 1036. Remote commander LCD display 023 103600...
  • Page 28 MZ-R909 [VOL+] [VOL--] [VOL+] 128. Adjust with the key (adjusted value up) or 142. Press the key twice to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 103E. Remote commander LCD display Remote commander LCD display...
  • Page 29 MZ-R909 [VOL+] [VOL--] [VOL+] 156. Adjust with the key (adjusted value up) or 170. Press the key twice to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 1047. Remote commander LCD display 023 104700...
  • Page 30 MZ-R909 [VOL+] [VOL--] [VOL+] 6. Adjust with the key (adjusted value up) or 20. Press the key once to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 102D. Remote commander LCD display 023 102D00...
  • Page 31 MZ-R909 [VOL+] [VOL--] [VOL+] 31. Adjust with the key (adjusted value up) or 45. Press the key once to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 104F. Remote commander LCD display Remote commander LCD display...
  • Page 32 MZ-R909 [VOL+] [VOL--] [VOL+] 59. Adjust with the key (adjusted value up) or 73. Press the key once to change the blinking portion to key (adjusted value down) so that the adjusted value becomes 1057. Remote commander LCD display Remote commander LCD display...
  • Page 33 MZ-R909 [VOL+] [VOL--] [VOL+] 87. Adjust with the key (adjusted value up) or 101. Press the key once to change the blinking portion to 115. The modified data writing is over, if the adjusted value key (adjusted value down) so that the adjusted value becomes 105F.
  • Page 34: Diagrams

    MZ-R909 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – SERVO Section – OVER WRITE HEAD DRIVE IC601 (1/2) HR601 OVER WRITE OVER HEAD DRIVE OPTICAL PICK-UP BLOCK PRE DRIVER WRITE Q604, 605 (LCX-4R) HEAD (Page 36) VRECIN2 OUTA VRECO M603 H-BRIDGE...
  • Page 35: Block Diagram - Audio Section

    MZ-R909 6-2. BLOCK DIAGRAM – AUDIO Section – OPTICAL RECEIVER B+ SWITCH VIF B+ Q302 DIN1 (Page 34) J301 LINE IN (OPT) (LINE IN JACK) A/D CONVERTER IC301 MIC AMP IC303 J303 LIN2 LIN1 OUT2 (PLUG IN POWER) AUDIO ADDT...
  • Page 36: Block Diagram - Key Control/Display/Power Supply Section

    MZ-R909 6-3. BLOCK DIAGRAM – KEY CONTROL/DISPLAY/POWER SUPPLY Section – RMC KEY (Page 35) VRMC HEADPHONE AMP (IC302), XWK3 MOTOR/COIL DRIVER (IC551) RMC KEY CLK SEL CLK SEL FFCLR FFCLR SLEEP SLEEP SYSTEM VLON CONTROL (Page 34) VLON XWK1 POWER CONTROL...
  • Page 37: Note For Printed Wiring Boards And Schematic Diagrams

    MZ-R909 6-4. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS • Waveforms Note on Printed Wiring Board: Note on Schematic Diagram: 1 IC601 4 (CLK) (PLAYBACK mode) • All capacitors are in µF unless otherwise noted. pF: µµF • X : parts extracted from the component side.
  • Page 38: Printed Wiring Board - Main Board (Component Side)

    MZ-R909 6-5. PRINTED WIRING BOARD – MAIN board (Component Side) – :Uses unleaded solder. • Semiconductor Location Ref. No. Location D603 IC805 S803 PROTECT DETECT Q602 S805 OPEN MAIN BOARD (COMPONENT SIDE) S804 J301(1/2) RECHARGEABLE LINE IN BATTERY IN (OPT)
  • Page 39: Printed Wiring Board - Main Board (Conductor Side)

    MZ-R909 6-6. PRINTED WIRING BOARD – MAIN board (Conductor Side) – :Uses unleaded solder. • Semiconductor Location MAIN BOARD (CONDUCTOR SIDE) Ref. No. Location FLEXIBLE BOARD D301 D302 M602 D303 (SLED) D601 RECHARGEBLE BATTERY D602 NH-14WM D605 1.2V 1350mAh D606...
  • Page 40: Schematic Diagram – Main Board (1/4)

    MZ-R909 6-7. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • • See page 37 for Waveform. See page 44 for IC Block Diagrams. (Page 42) TP831 HR601 OVER WRITE TP830 Q604 HEAD HAT2051T R507 C501 Q604,605 100p OVER WRITE HEAD DRIVE...
  • Page 41: Schematic Diagram – Main Board (2/4)

    MZ-R909 6-8. SCHEMATIC DIAGRAM – MAIN Board (2/4) – • • See page 37 for Waveform. See page 44 for IC Block Diagrams. R915 D904 MA111-TX C521 SLD CON W SLD CON V R552 R551 C522 R906 C902 C901 6.3V 6.3V...
  • Page 42: Schematic Diagram - Main Board (1/4)

    MZ-R909 6-9. SCHEMATIC DIAGRAM – MAIN Board (3/4) – CLV PWM S804 S806 (CHRGEABLE BATTERY IN DETECT) (OPEN/CLOSE DETECT) (Page C835 R841 C805 R820 R835 0.047 C827 SPINDLE SERVO R804 C833 D801 DRIVE SWITCH 3.3k SL802 100p MAZS068008SO IC805 TC7SH32FU...
  • Page 43: Schematic Diagram - Main Board (4/4)

    MZ-R909 6-10. SCHEMATIC DIAGRAM – MAIN Board (4/4) – • See page 44 for IC Block Diagrams. R118 R218 C213 C322 6.8k 6.8k (CHASSIS) 0.5% 0.5% R319 C217 J303 C320 (PLUG IN POWER) C332 C212 6.3V C117 6.3V OUT1 NOISE...
  • Page 44 MZ-R909 • IC Block Diagrams IC301 AK5354VT-E2 IC303 NJM2173APC1 (TE2) IC501 SN761057DBT 16 PDN LIN1 ADIP-IN 15 CSN CONTROL S-MON IPGA RIN1 14 CCLK REGISTER A+B+C+D TWpp LIN2 13 CDTI PK/BTM OUT 1 AMP 1 NOISE RIN2 CSLO CLOCK DIVIDER...
  • Page 45 MZ-R909 IC551 SC111258FCR2 42 41 35 34 31 30 29 PWM2 3PHASE CONTROL 3PHASE H-BRIDGE H-BRIDGE PRE DRIVER PRE DRIVER CONTROL VC LOW VOLTAGE DETECTOR COM2 CPUI2 – CPUO2 CPVO2 – CPVI2 CPWO2 CPWI2 – BIAS GND2 VC VG GND1 –...
  • Page 46 MZ-R909 IC601 XPC18A22FCR2 VC2 VG CHARGE OUTPUT SW OUTPUT SW CHARGE PUMP 1 PUMP 2 VC VG DC IN HI-BRIDGE CHARGE PRE DRIVER PRE DRIVER MONITOR VREF VREF X2/X4 BATM BUFFER DC IN CVREF CONTROL CONTROL CHARGE CHGSW DW BT...
  • Page 47 MZ-R909 IC901 XPC18A32FCR2 36 35 34 33 32 31 30 29 OUTPUT OUTPUT SW SERIES PASS SERIES PASS SERIES PASS OUTPUT SW REGULATOR VA REGULATOR VD REGULATOR VIF POWER – SWITCH 1 INM1 STEP-UP PRE DRIVER DTC1 XRST OUTPUT SW...
  • Page 48: Ic Pin Function Description

    MZ-R909 6-11. IC PIN FUNCTION DESCRIPTION • IC501 SN761057DBT (RF AMP, FOCUS/TRACKING ERROR AMP) Pin No. Pin Name Description Tracking error signal output to the system controller (IC801) REXT — Connect terminal to the external resistor for ADIP amp control WPPLPF —...
  • Page 49 MZ-R909 • IC801 CXD2671-206GA (SYSTEM CONTROLLER, DIGITAL SIGNAL PROCESSOR, 16M BIT D-RAM) Pin No. Description Pin Name 1 to 5 — Not used (open) MCUVDD0 — Power supply terminal (for microcomputer block) (+1.5V) — MIFVSS3 Ground terminal (for microcomputer I/F) XRST System reset signal input terminal from the power control (IC901) “L”: reset...
  • Page 50 MZ-R909 Pin No. Description Pin Name Middle point voltage (+1.2V) input terminal ADIO Monitor output terminal of A/D converter input signal Not used (open) ADRT A/D converter the upper limit voltage input terminal (fixed at “H” in this set) —...
  • Page 51 MZ-R909 Pin No. Description Pin Name SPCU Spindle motor drive comparison signal input (U) from the motor driver (IC551) SPCV Spindle motor drive comparison signal input (V) from the motor driver (IC551) SPCW Spindle motor drive comparison signal input (W) from the motor driver (IC551)
  • Page 52 MZ-R909 Pin No. Description Pin Name EVA/FLASH chip discrimination terminal “L”: FLASH chip, “H”: EVA chip — OPR LED Not used (open) SSB DATA Input/output of SSB data with RF amp (IC501) SSB CLK SSB clock output to RF amp (IC501) —...
  • Page 53 MZ-R909 Pin No. Description Pin Name 197 to Power supply control signal output (for the over write head drive) to the over write head MODE1 to 3 drive (IC601) 200, 201 HD CON 1, 2 Over write head control signal output to the over write head drive (IC601) XTEST Terminal for test mode set (nomally: open) “L”: test mode...
  • Page 54: Exploded Views

    MZ-R909 SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they The components identified by mark may have some difference from the original are seldom required for routine service. Some 0 or dotted line with mark 0 are one.
  • Page 55: Chassis Section

    MZ-R909 7-2. CHASSIS SECTION MT-MZR909-171 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-220-477-01 SHEET (MD), INSULATING 3-335-797-91 SCREW (M1.4), TOOTHED LOCK X-3379-320-1 CHASSIS ASSY, SET 4-223-110-01 TERMINAL (3) 3-225-996-04 SCREW (M1.4) (EG), PRECISION PAN...
  • Page 56: Md Mechanism Deck Section (Mt-Mzr909-171)

    MZ-R909 7-3. MD MECHANISM DECK SECTION (MT-MZR909-171) M603 not supplied M602 M601 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref.
  • Page 57: Electrical Parts List

    MZ-R909 SECTION 8 MAIN ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • Items marked “*” are not stocked since they The components identified by 0 or dotted line with mark mark parts list may be different from the parts speci- are seldom required for routine service.
  • Page 58 MZ-R909 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C825 1-125-777-11 CERAMIC CHIP 0.1uF C558 1-127-772-11 CERAMIC CHIP 33000PF 10% C826 1-127-715-11 CERAMIC CHIP 0.22uF C559 1-127-772-11 CERAMIC CHIP 33000PF 10% C827 1-164-850-11 CERAMIC CHIP 10PF 0.5PF...
  • Page 59 MZ-R909 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q605 8-729-046-42 FET HAT2050T-EL < FUSE > Q801 8-729-429-44 TRANSISTOR XP1501-TXE Q803 8-729-029-14 TRANSISTOR DTC144EUA-T106 0 F801 1-576-439-21 FUSE (SMD) (0.25A/125V) < RESISTOR > < RESISTOR >...
  • Page 60 MZ-R909 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R802 1-208-927-11 METAL CHIP 0.5% 1/16W RB801 1-233-973-11 RES, NETWORK (CHIP TYPE) 100K R803 1-208-927-11 METAL CHIP 0.5% 1/16W < SWITCH > R804 1-218-959-11 RES-CHIP 3.3K...
  • Page 61 MZ-R909 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************* ADAPTOR, ATTACHMENT 1-569-007-11 ADAPTOR, CONVERSION 2P (JEW) AC (AC-ES305) ASSY 1-779-504-51 CONNECTOR, OPTICAL 1-794-451-51 CONNECTOR, LIGHT 3-234-030-01 MANUAL, INSTRUCTION CHARGE UNIT (JAPANESE, ENGLISH) (JEW)
  • Page 62: Revision History

    MZ-R909 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision...
