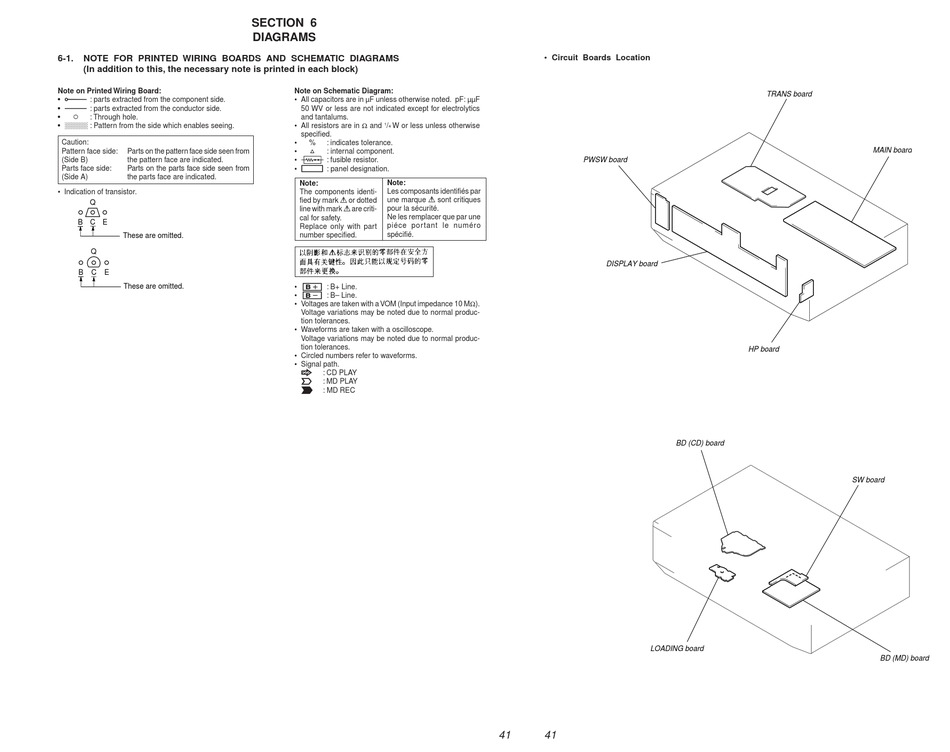

6-1.

NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

(In addition to this, the necessary note is printed in each block)
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• : Through hole.
a
• b : Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
• Indication of transistor.
Q
B C E
These are omitted.
Q
B C E
These are omitted.
SECTION 6

DIAGRAMS

Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1 / W or less unless otherwise
4
specified.
• % : indicates tolerance.
• : internal component.
f
• 5 : fusible resistor.
• C : panel designation.
Note: Note:
The components identi- Les composants identifiés par
une marque 0 sont critiques
fied by mark 0 or dotted
line with mark 0 are criti- pour la sécurité.
cal for safety. Ne les remplacer que par une
Replace only with part piéce por tant le numéro
spécifié.
number specified.
• U : B+ Line.
• V : B– Line.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD PLAY
E
: MD PLAY
j
: MD REC
• Circuit Boards Location
PWSW board
DISPLAY board
BD (CD) board
LOADING board
41 41
TRANS board
MAIN board
HP board
SW board
BD (MD) board
MXD-D3
