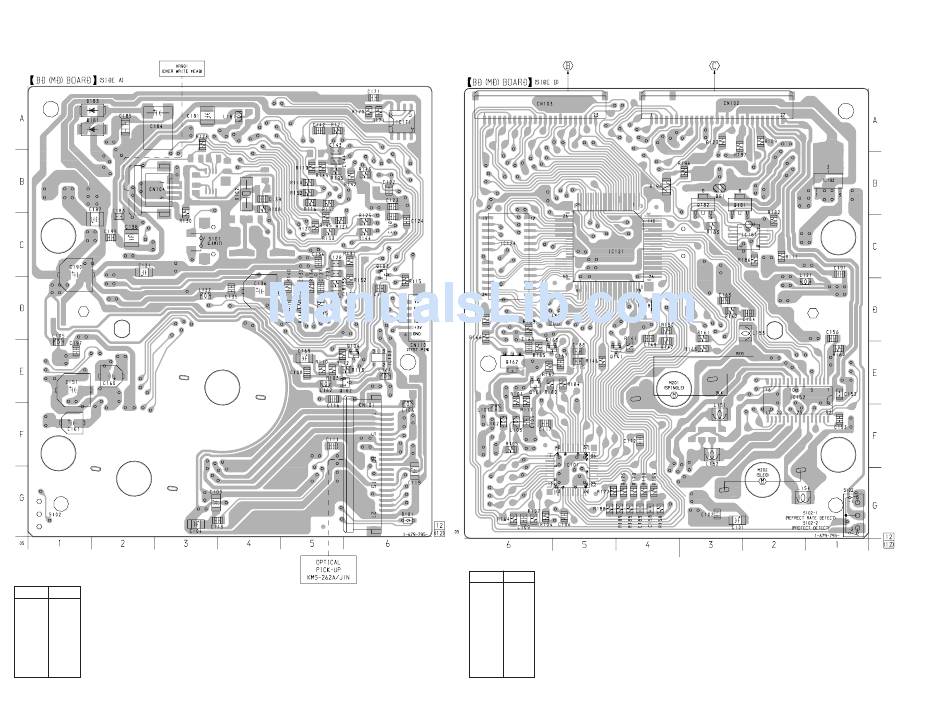

6-6. PRINTED WIRING BOARD – BD (MD) Board – •
• Semiconductor
Location (Side A)
Ref. No. Location
D101 G-6
D181 A-2
D183 A-2
IC103 E-6
IC171 A-6
Q102 E-6
Q103 C-6
Q104 E-6
See page 41 for Circuit Boards Location.
(Page 50)
• Semiconductor
Location (Side B)
Ref. No. Location
IC101 G-5
IC121 C-5
IC124 C-6
IC152 E-2
IC181 C-2
IC192 B-1
Q101 E-6
Q162 E-6
Q163 E-6
Q181 B-3
Q182 B-3
