SINCE
1976
KOREA COMMUNICATIONS CO.,LTD
http://www.kocom.com
E-mail : export@kocom.co.kr
This manual is based on the date as shown in the right and specifications are subject to
change without notice for quality improvement

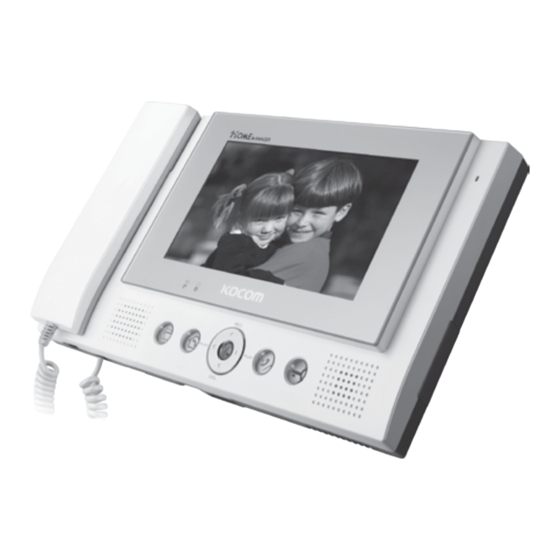

KCV-802R, KCV-D802R
08.01
www.kocom.co.kr
KCV-802R/D802R MANUAL
[ Operating Installation Manual ]
KC-MC30
KC-MC31 [Option]
7inch LCD
Call from, and two-way communication with, door camera
Going out of house or absence setup
(When a user calls a door camera, images taken by
the door camera is automatically recorded.)
Selection of a lobby image and view of the selected image
Image screen setting
Interlocking with PIR SENSOR, CCTV
KCV-802R, KCV-D802R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KCV-802R
Summary of Contents for KOCOM KCV-802R
- Page 1 KCV-802R/D802R MANUAL [ Operating Installation Manual ] KC-MC30 KC-MC31 [Option] KCV-802R, KCV-D802R 7inch LCD Call from, and two-way communication with, door camera SINCE Going out of house or absence setup 1976 KOREA COMMUNICATIONS CO.,LTD (When a user calls a door camera, images taken by http://www.kocom.com...
-
Page 2: Table Of Contents
Contents Cautions for safety ■ Key Features ■ Components ■ Monitor Installation ■ Door Camera Installation ■ Name of Each Part ■ Specifications ■ Wiring Diagram ■ Functional Description ■ Warranty Card ■... -
Page 3: Cautions For Safety
Warnings Warnings for disposal Cautions for Safety Do not throw used-up battery into fire places, which may cause fire and explosion. ● Warnings & Cautions for Safety Cautions Cautions for installation For safe use, please stick to the following cautions. The relevant law obliges users to have a qualified electrician carry out wiring work for power supply. - Page 4 Warnings Warnings Cautions for Use Cautions for Use Do not install the product at bathroom or at the place near a washing machine, or at other humid places. This product is not for perfect security solution. ● ● It may cause fire or electric shock. ●...
-
Page 5: Key Features
●Call from, and two-way communication with, multi-family lobby-phone (KLP-100 Series) ●Two-way call and communication with multi-family security phone (KIP-120 Series) ●Two-way call and communication between house devices using extension line (KIV-212, KIP-603, KCV-802R, KIV-102) ●Call from, and two-way communication with, door camera Overview ●Two-way call and communication with a privately installed exchanger or switchboard... -
Page 6: Monitor Installation
Installation Precaution Door Camera Installation Surface-mounting Door Camera Installation Monitor and camera must be installed away from direct light ● and counter light. KC-MC30 KC-MC31 Camera must be installed at a place free from rain. ● Wall Wall Standard height of monitor must be 1,450mm~1,500mm from ground, ●... -
Page 7: Name Of Each Part
Name of Each Part Name of Each Part Monitor Monitor Bottom View Rear View Front Name Brief Description Tone Ring adjusts volume of tone ring (low to loud)Volume Switch Modular Jack a jack for handset connection cord Wall-mounting a hole for a screw used in fixation of main body in its wall-Fixation Part Power Switch on/off switch for main power supply for monitor Name... -
Page 8: Specifications
Product Specifications Wiring Diagram Wiring Diagram-Private Exchanger Model no. KCV-802R Power Input AC 100V - 240V (unload : Min. 4.9W, inload : Max. 22W) KCV-D802R Tone Ring 24 POLY (Max.) - continues for 30 seconds in the event of an incoming call... - Page 9 Wiring Diagram Wiring Diagram Wiring Diagram-multi family Wiring Diagram Mode Setting - In MENU Home, select one out of "Multi," Camera, Sub monitor, Devices for each of the connection points, Security Sensor ※Cautions 1. Pin No.6(data line) in Main Line Port is not connected in sub video phone. Camera 2.
-
Page 10: Functional Description
Functional Description Functional Description Communication Communication 1. Call from Gate 2. View of Door Camera Image A visitor presses CALL button "CAMERA1" or "CAMERA2" message is displayed in monitor and tone On hanging up phone, If a user presses ◁button, the image of If a user presses ◁button once again, this function ends. - Page 11 Functional Description Functional Description Communication Communication 4. Call from Multi-family Security Phone 7. Call to Multi-family House Device Lobby/Security LED flickers and tone ring sounds. Pick up the handset to communicate with the security phone. If a user picks up the handset and presses button, If the other party picks up the handset, LED on and tone ring sounds.
- Page 12 Functional Description Functional Description Communication Communication 10. Functional Description of Common Gate Lobby Phone 13. Saving, Playing and Deleting Images While call from, or communication with, door camera or Press ▷ to view the saved image. Call No. 70 guard master with holding on the phone after setting No.
- Page 13 Functional Description Functional Description Absent Mode OSD function (LCD CONTROL MENU) Please push menu button for this function. Select and change using Contents can be changed according to product's version. 14. Setting/Cancelling the Absent Mode If a user presses button with the handset 1.
- Page 14 Functional Description Functional Description 5.Date set up & Image deletes function 4) CALL TIMES 1 : Make alarm Call one time. Date, time, image data deleting function. CALL TIMES 2 : Make alarm Call two time. CALL TIMES 3 : Make alarm Call three time. MEMU MEMU 5) CAM1 TIME 30SEC : 30 sec.
- Page 15 Functional Description 4) CAMERA1 O : Select CAMERA1 CAMERA1 X : Not select CAMERA1 5) CAMERA2 O : Select CAMERA2 CAMERA2 X : Not select CAMERA2 CAMERA2 P : Select PIR Sensor Camera (Extra Sale) After PIR sensor on, the monitor will be turned on during 2' 30''. (It is possible only for CAMERA2.) 6) MODE MULTI : set for the common gate system products.
-
Page 16: Warranty Card
1) This product is produced under strict quality control and inspection procedures. 2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge.
