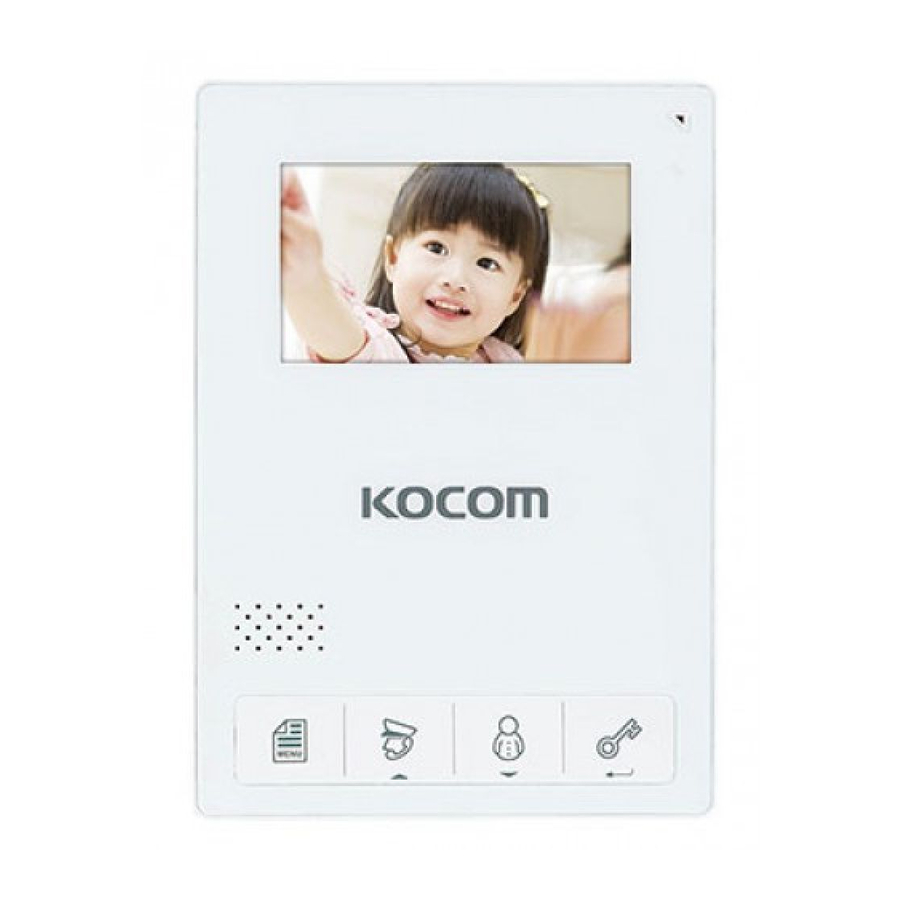

KCV-434SD / KCV-D434SD

SD Card Memory

COLOR HANDSFREE

■4.3" Digital Color LCD Monitor

■Slim, Compact & Luxury Design

■Easy to operate using OSD menu & Touch key

■Digital Photo Album

■Digital Video Recorder

·Motion Detection

·Memory Size : up to 32GB(SD Card interface)

·Video Format : Moving picture(MPEG-4), Still cut : JPEG

■Multiple language support

·English, Spanish, French and Russian

■Connection up to 2 Door cameras

■Guard Phone, Lobby Phone Operating

■Call & Communication with visitor & Door open function

■Door opener connectable from camera

Monitor color

White

Black

MANUAL

[ Operating Installation Manual ]

KC-MC24

KC-MC20

Connection door Camera

KCV-434SD / KCV-D434SD

KC-C60

KC-MC30

www.kocom.co.kr

KLP-C420

Table of Contents

Need help?

Do you have a question about the KCV-434SD and is the answer not in the manual?

Questions and answers

Summary of Contents for KOCOM KCV-434SD

Page 1 KCV-434SD / KCV-D434SD MANUAL [ Operating Installation Manual ] SD Card Memory COLOR HANDSFREE ■4.3" Digital Color LCD Monitor ■Slim, Compact & Luxury Design ■Easy to operate using OSD menu & Touch key ■Digital Photo Album ■Digital Video Recorder ·Motion Detection...
Page 2: Cautions For Safety
Cautions for safety For safe use, please stick to the following cautions. ·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center.
Page 3: Cautions For Use
Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
Page 4: Installation Location
Installation location ■ Monitor installation location ■ Camera installation location ·Standard monitor installation height ·Camera installation in height Standard is about 1,500mm where screen camera installation height is when center is at eye level. lens is about 1,400mm above the floor. In this case, wall-hanging metal In this case, camera stack center center (center of piping) is 1,450mm...
Page 5: Components Of Product
KING MAX - MLC Method, CLASS-6 This may damage the product. Bareun Electronics - MLC Method, CLASS-4 The company will not be responsible for such damage. Specifications Model No. KCV-434SD KCV-D434SD Power Source AC100V-AC240V 50/60Hz DC 15V-2A (JPW128KA1502N05) Power Consumption Standby 3W(±20%), Max 12W(±20%)
Page 6: Name And Functions Of Each Part
Name and Functions of each part ■ Monitor ·Front ·Right Side ·Left Side ·Back ① LCD Monitor ⑨ Call sound volume adjusting switch ② Speaker ⑩ Speaking volume adjusting switch ③ Microphone ⑪ Power Switch ④ State LED ⑫ SD Card input section ⑤...
Page 7: Product Connection Diagram
Product connection diagram ■ System configurations(Camera Mode) Polarized 4wire 2wire DC Door opener Door Camera External power input Polarized 4wire 2wire KCV-434SD DC Door opener Door Camera External power input ■ System configurations(Guard Mode) Polarized 4wire 2wire DC Door opener Door Camera...
Page 8 Product connection diagram ■ Name of each connection port ■ Camera connection wiring CAM 2 CAM 1 ①②③④ ①②③④ TO CAMERA 1. VCC 2. GND 3. AUDIO 4. VIDEO ① ① ② ② ③ ③ ④ ④ ※ Caution for Camera Installation Because of condition or atmosphere, Monitor can't detect automatically NTSC or PAL.
Page 9: Instructions For Operation
Instructions for operation ■ Communication with door camera Push the call button. You can hear call sound from Push the talk/guard button [ Push the talk/guard button [ The camera melody is monitors, and camera image again and stop the communication. andcommunicate with the door camera turned on.
Page 10: Specification
Note : Only is the file satisfied with Digital Frame size available. ·Playback the video image stored in SD CARD from PC. PLAYER : KOCOM PC VIEWER, GOM PLAYER, KMPLAYER ·KOCOM PC VIEWER Download : www.kocom.com (EX : Search : KCV-A374SD)
Page 11 Instructions for operation ■ Absence Setup and Recording the image of a door camera Set up Absence in the menu. When a visitor calls at the porch, porch images will be automatically recorded. (Refer to the Menu to set up your leave.) (LED: Red flickers) Absense Set : Menu >>...
Page 12: Menu Setting
MENU Setting 1. Absense Set - Absence setup. If you set up, porch / lobby call images will be automatically saved. (As Absence is set up, LED will flicker in red.) (Setup : [MENU] Key>>1. Select Absense Set >>[ENTER] Key>> Select YES >>[ENTER] Key) 2.
Page 13 MEMO...
Page 14: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
