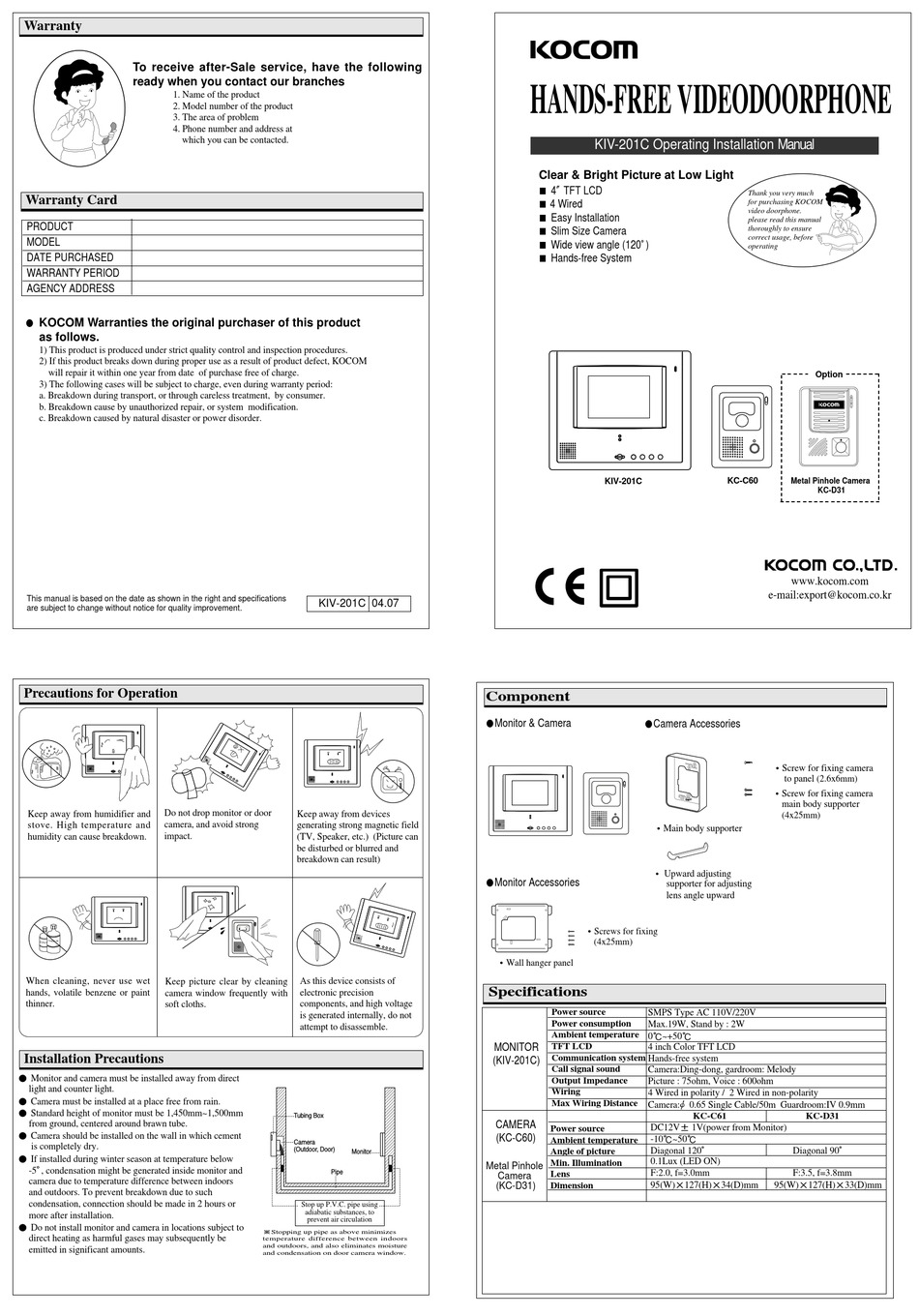

KOCOM KIV-201C Operating & Installation Manual

Warranty
To receive after-Sale service, have the following
ready when you contact our branches
1. Name of the product
2. Model number of the product
3. The area of problem
4. Phone number and address at
which you can be contacted.

Warranty Card

PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY ADDRESS
● KOCOM Warranties the original purchaser of this product
as follows.
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect, KOCOM
will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period:
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown cause by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
This manual is based on the date as shown in the right and specifications
are subject to change without notice for quality improvement.
Precautions for Operation
Do not drop monitor or door
Keep away from humidifier and
camera, and avoid strong
stove. High temperature and
impact.
humidity can cause breakdown.
When cleaning, never use wet
Keep picture clear by cleaning
hands, volatile benzene or paint
camera window frequently with
thinner. soft cloths.

Installation Precautions

� Monitor and camera must be installed away from direct
light and counter light.
�
Camera must be installed at a place free from rain.
�
Standard height of monitor must be 1,450mm~1,500mm
from ground, centered around brawn tube.
�
Camera should be installed on the wall in which cement
is completely dry.
�
If installed during winter season at temperature below
-5� , condensation might be generated inside monitor and
camera due to temperature difference between indoors
and outdoors. To prevent breakdown due to such
condensation, connection should be made in 2 hours or
more after installation.
�
Do not install monitor and camera in locations subject to
direct heating as harmful gases may subsequently be
emitted in significant amounts.
KIV-201C 04.07
Keep away from devices
generating strong magnetic field
(TV, Speaker, etc.) (Picture can
be disturbed or blurred and
breakdown can result)
As this device consists of
electronic precision
components, and high voltage
is generated internally, do not
attempt to disassemble.
Stop up P.V.C. pipe using
adiabatic substances, to
prevent air circulation
※Stopping up pipe as above minimizes
temperature difference between indoors
and outdoors, and also eliminates moisture
and condensation on door camera window.
HANDS-FREE VIDEODOORPHONE
KIV-201C Operating Installation Manual
Clear & Bright Picture at Low Light
■ 4"TFT LCD
■ 4 Wired
■ Easy Installation
■ Slim Size Camera
■ Wide view angle (120。 )
■ Hands-free System
KIV-201C
Component
●Monitor & Camera
●Camera Accessories
�Main body supporter
� Upward adjusting
●Monitor Accessories
� Screws for fixing
(4x25mm)
� Wall hanger panel

Specifications

Power source
SMPS Type AC 110V/220V
Power consumption Max.19W, Stand by : 2W
Ambient temperature
0℃~+50℃
TFT LCD
MONITOR 4 inch Color TFT LCD
Communication system
Hands-free system
(KIV-201C)
Call signal sound Camera:Ding-dong, gardroom: Melody
Output Impedance
Picture : 75ohm, Voice : 600ohm
Wiring
4 Wired in polarity / 2 Wired in non-polarity
Max Wiring Distance
Camera:� 0.65 Single Cable/50m Guardroom:IV 0.9mm
CAMERA
DC12V± 1V(power from Monitor)
Power source
(KC-C60)
-10℃~50℃
Ambient temperature
Angle of picture Diagonal 120。
0.1Lux (LED ON)
Min. Illumination
Metal Pinhole
F:2.0, f=3.0mm
Lens
Camera
95(W)×127(H)×34(D)mm
(KC-D31) Dimension
Thank you very much
for purchasing KOCOM
video doorphone.
please read this manual
thoroughly to ensure
correct usage, before
operating
Option

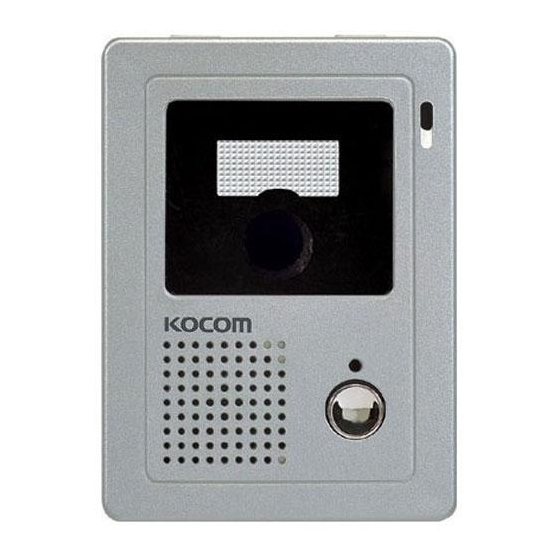

KC-C60
Metal Pinhole Camera
KC-D31
www.kocom.com
e-mail:export@kocom.co.kr
�Screw for fixing camera
to panel (2.6x6mm)
�Screw for fixing camera
main body supporter
(4x25mm)
supporter for adjusting
lens angle upward
KC-C61 KC-D31
Diagonal 90。
F:3.5, f=3.8mm
95(W)×127(H)×33(D)mm
