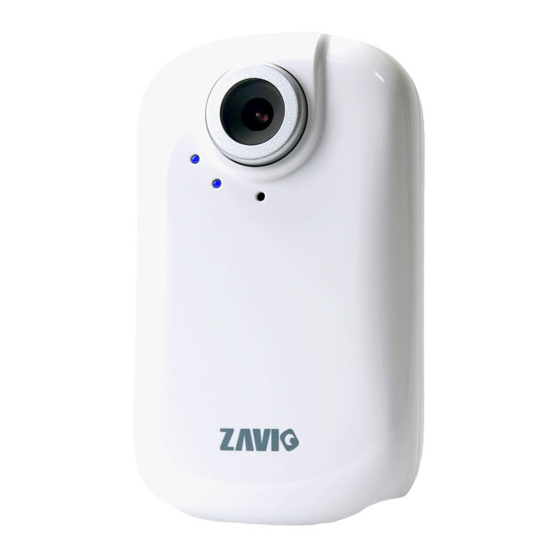

Zavio F210A Quick Installation Manual
Hide thumbs
Also See for F210A:
- User manual (67 pages) ,
- Hardware user manual (10 pages) ,
- User manual (102 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zavio F210A
Summary of Contents for Zavio F210A
-
Page 2: Table Of Contents
Zavio F210A Quick Installation Guide Please follow the installation steps below to set up your F210A IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.2 Microsoft OS: Use the software CD to install Intelligent IP Installer. -
Page 3: Install The Hardware And Connect All Cables. See
Install the hardware and connect all cables a. Wall mounting and Ceiling mounting 1. Use the 3 supplied screws to fix the base plate to a flat surface. 2. Loosen the lock ring to adjust the desired angle of the camera. 3. - Page 4 2. Click the Intelligent IP Installer ICON on your desktop. The main page will show up listing all active camera and video server devices. Select the relevant IP camera from the list and click Link to IE. 3. Enter your Username and Password to login to the IP Camera.
-
Page 5: Mac Os Using Safari Browser. See
6. Click Install. 7. Live video displays in the centre of your web browser. Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. -
Page 6: Change Light Environment Setting. See
Change light environment setting The default setting of lighting environment is 60Hz. However, if the image appears flickery, this might be because the lighting environment in your country is 50 Hz. Hence, this setting can be changed into 50Hz. Or if you wish to use this IP Camera in an outdoor environment, this setting can be changed into Outdoor mode. -
Page 7: Windows Live Messenger Setting. See
Windows Live Messenger Setting Live video of the IP Camera can be displayed using Microsoft Live Messenger, whilst providing its public IP address to users for access via the web browser. This feature is useful especially when the IP address of the camera is dynamically assigned. -
Page 8: Image Setup
9. The IP Camera automatically accepts your invitation and its live video displayed. 10. Click Action button and choose Start control panel to use control panel 11. You can use Snapshot, Image Setup function via MSN add-in control panel. Snapshot Image Setup... - Page 9 Access to Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
- Page 10 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.
